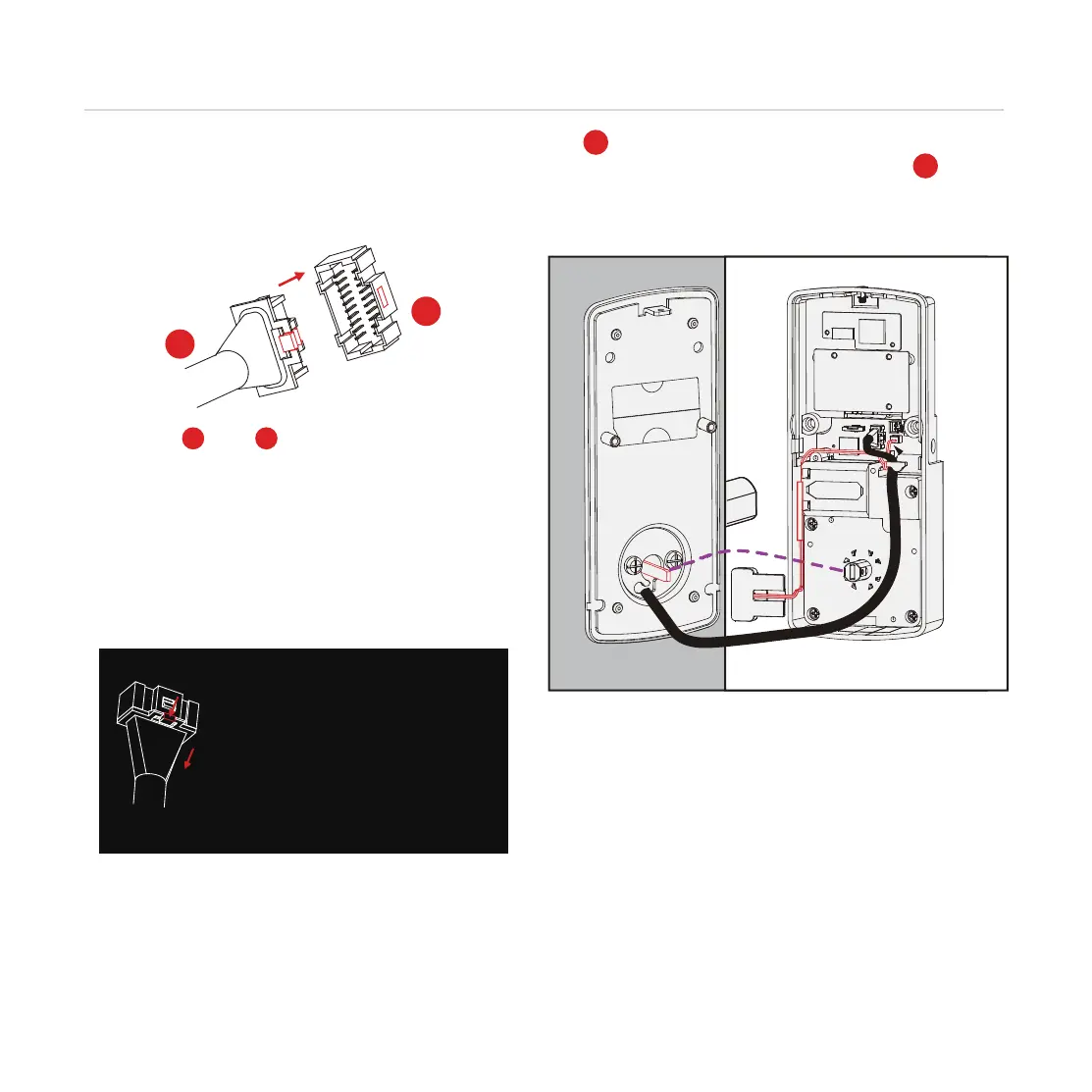

Plug the cable coming through mounting plate in to the interior assembly (F) as
shown. Tuck cable under eyelet hooks and route to the right on interior assembly .
Plug into , match red side
of plug with red on socket - insert
tightly.
7
INSTALLING THE INTERIOR ASSEMBLY (F)
Step 3
X
X Y
Y
E
F
NOTE: If you need to discon-
nect the cable, make sure
to press the snap tab to
release the plug before
carefully pulling it out. Do
not force, as this may result
in damaging the lock.
