HOW TO ADJUST THE CYLINDER

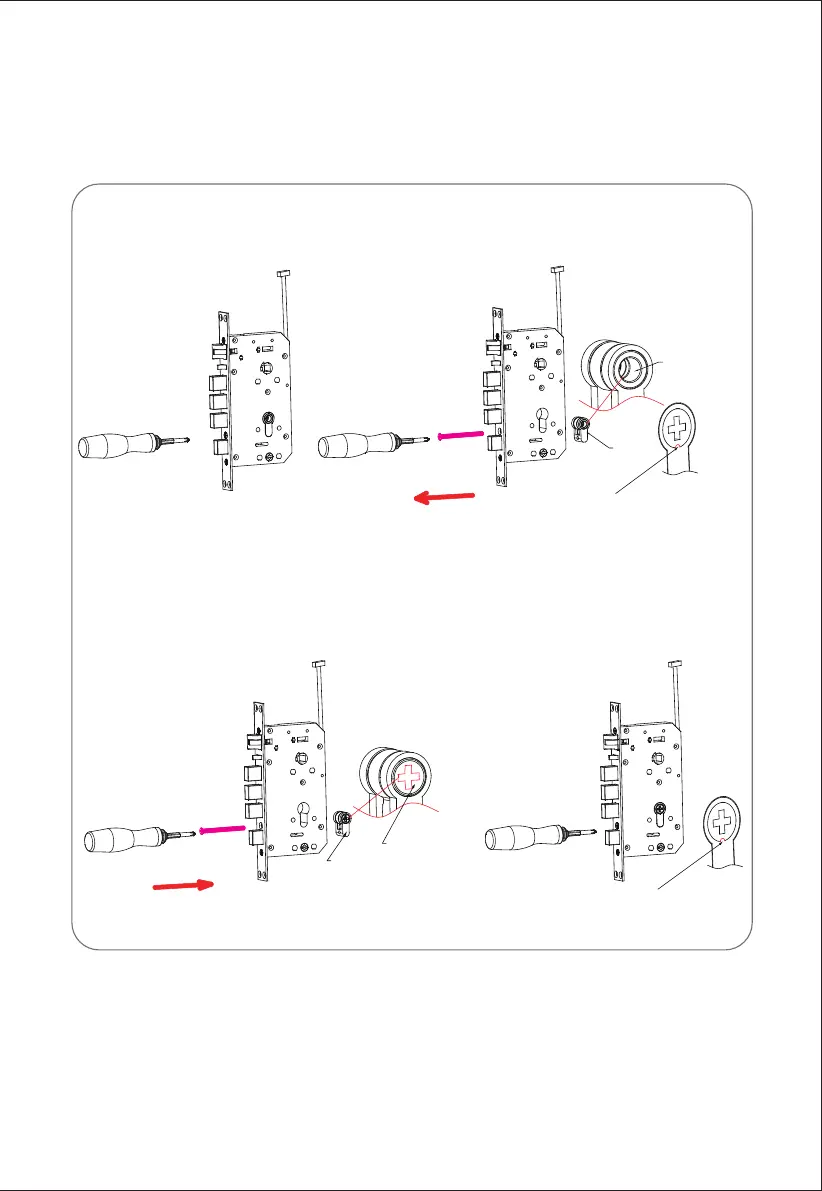

Here is how to change the cylinder direction. The factory setting of the cylinder is for
right in-swing door. You do not need to change direction if you have a right in-swing
door.
the spin
+ is adjusted
to the outside
of the door
The spin can only be slotted in when
the pit hole is at the downside.
3. You must have the cross slot
of the spin facing this side.
4. Fix the strike plate with mounting
screws.
1. You need a Phillips screwdriver.
the spin
current position
of the spin
The spin can only be taken out
when the pit hole is facing down
2. Unscrew the strike plate and take out the
spin as shown then turn it to the revise side
of the lockset.
