LockMaster LKM700 - Lever Handle Assembly and Front Plate Mounting

To Next Page

To Previous Page

7000INST Copyright Lockmasters, Inc. 5/25/11

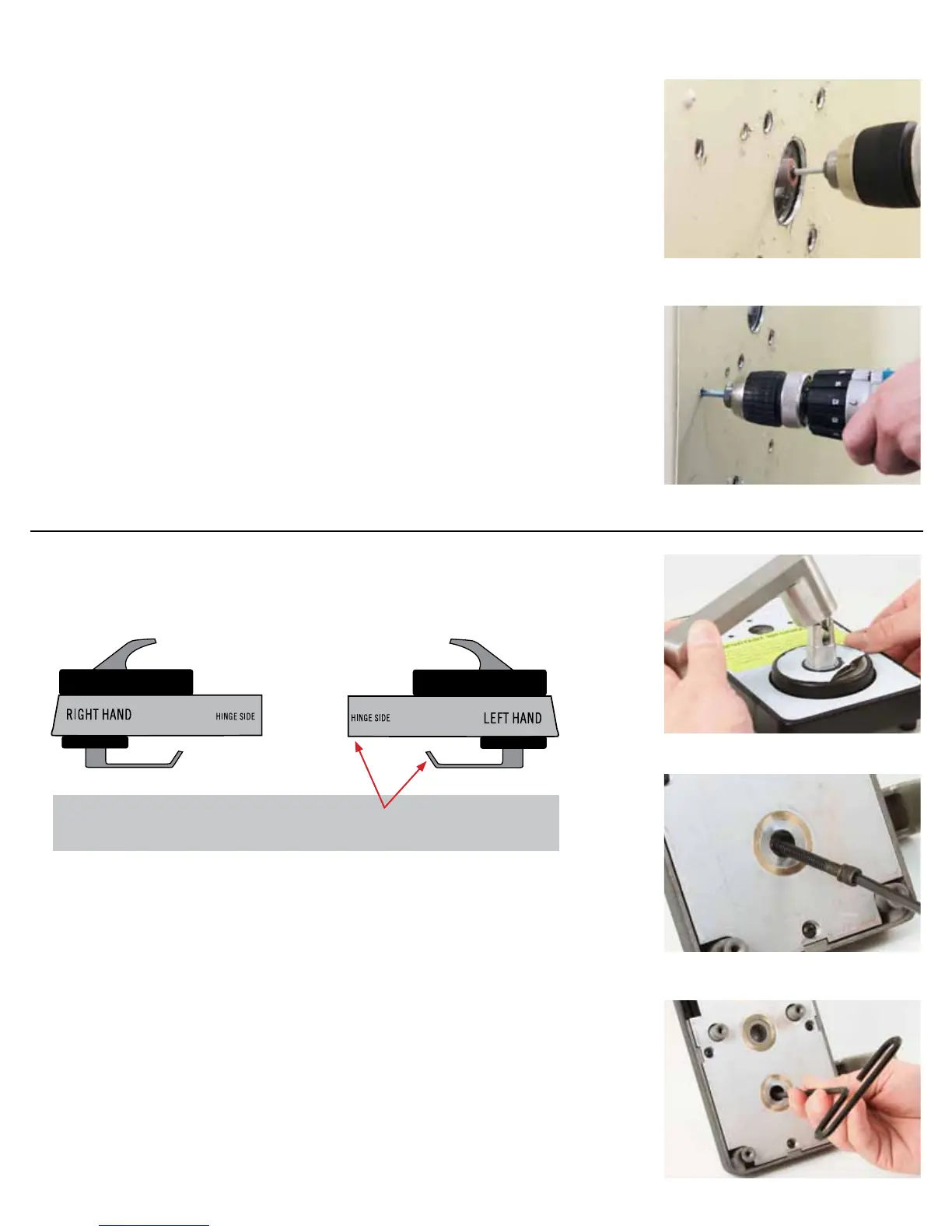

Step 11 – Prep all drilled holes

Step 11A - Use the debur stone to debur all drilled holes.

Step 11B - Pre-thread all (4) C Inside Base Plate attaching holes – using one of the

Phillips head thread forming screws (F). A #2 square drive bit works well with the

screws.

Step 12 – Attach the Lever Handle to the Front Plate

Step 12A – Attach the lever handle correctly depending on the direction of the door

swing. The handle will always point toward the hinge side of the door. (Figure 5)

Step 12B – Place the split washer (G) onto the ¼”-20x1 ¾” socket head machine

screw (G) insert through the back of the Front Plate and thread it into the lever handle.

Step 12C – Secure the screw tightly using the 3/16” T-Handle hex wrench.

LKM7000 Installation

11a - Debur all drilled holes

11b - Pre-thread all (4) C holes.

12a - Place lever handle on front plate.

(Figure 5) DIRECTION OF THE LEVER HANDLE

The handle will always point toward the hinge side of the door.

12b- Place split washer & screw into front plate

into lever handle

12c - Secure the screw
