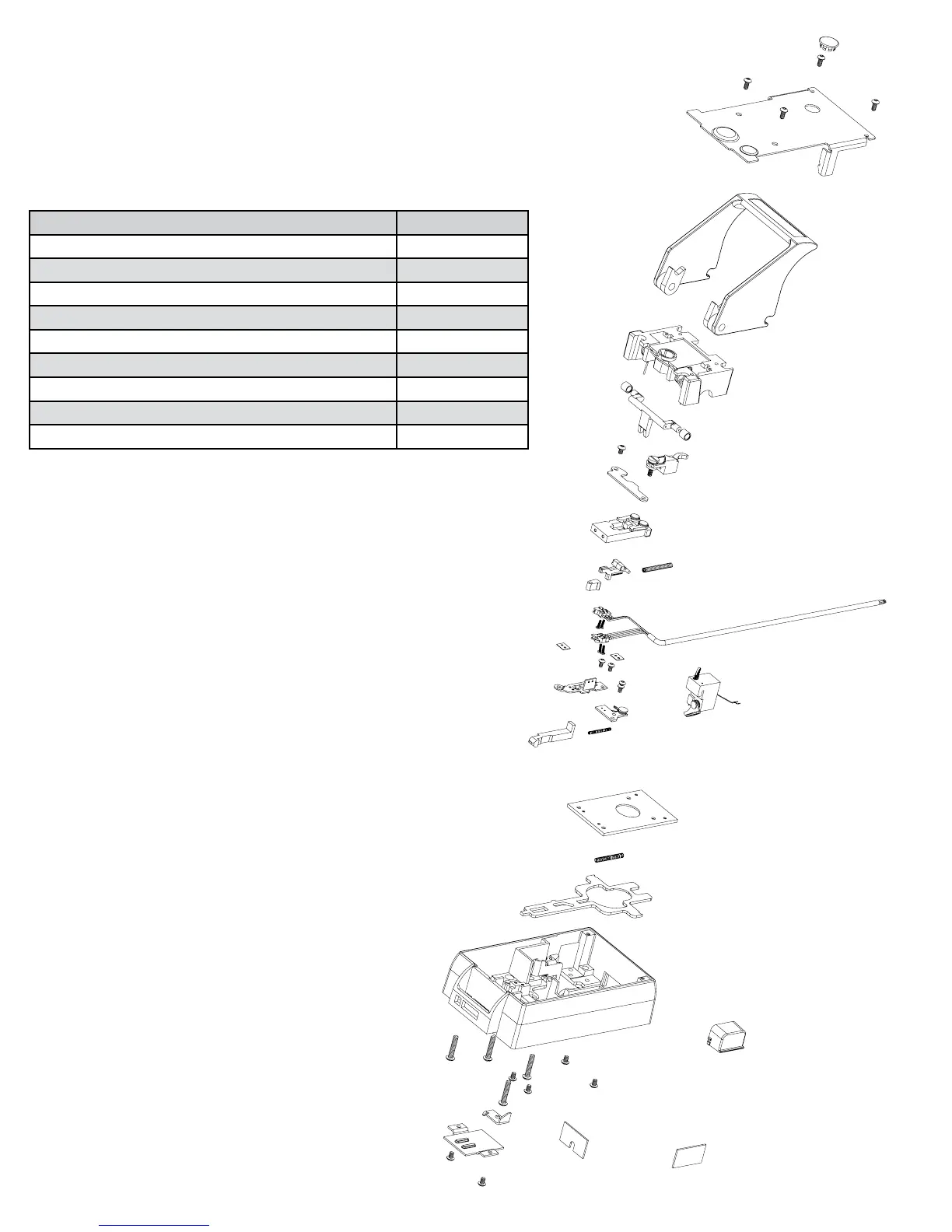

LKM7000 EXPLODED VIEW
LOCKBODY AND PARTS
Component Part No.
Inside Base Plate Complete w/ Screws & Hardware 700013WBA
Internal Access Control 700016
Handle Tube 700013S01
Extended Spindle Kit 700013S01EXT
Complete Wiring Harness 700013S45
Yoke 700013S09
Bolt Spring 700013S18
Slide Spring 700013S46
Trigger Spring 700013S19
LKM7000 Inside Base Plate Exploded View
Not all items are eld retro-ttable.
