LockMaster LM138 - CHAMBERLAIN Garage Door Opener Connection Example

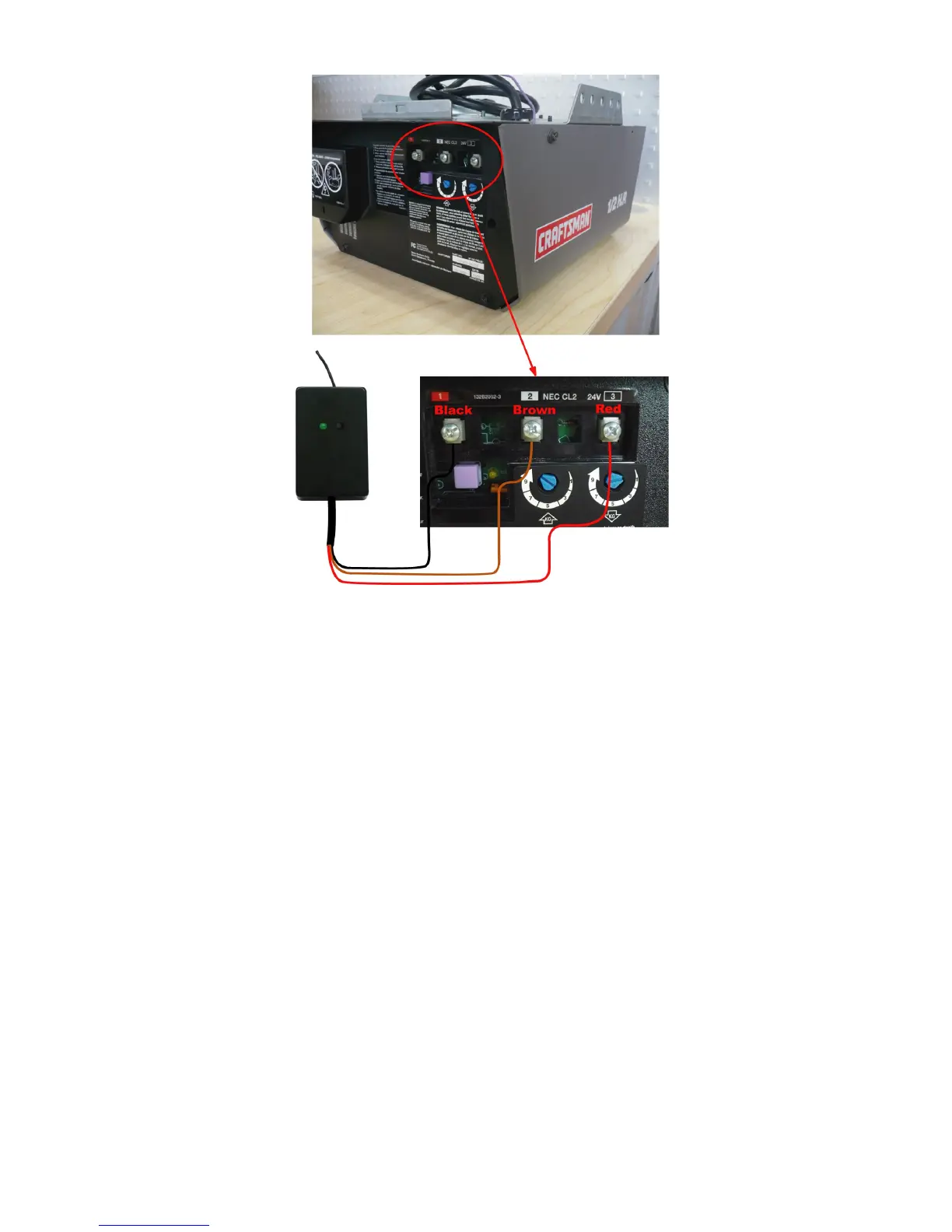

e.g. Connect the external receiver to CHAMBERLAIN garage door opener.
(a). Connect the black wire into “NEC” terminal.
(b). Connect the brown wire into “CL2” terminal.
(c). Connect the red wire into “24V” terminal.
