8.1 - Belt alignment

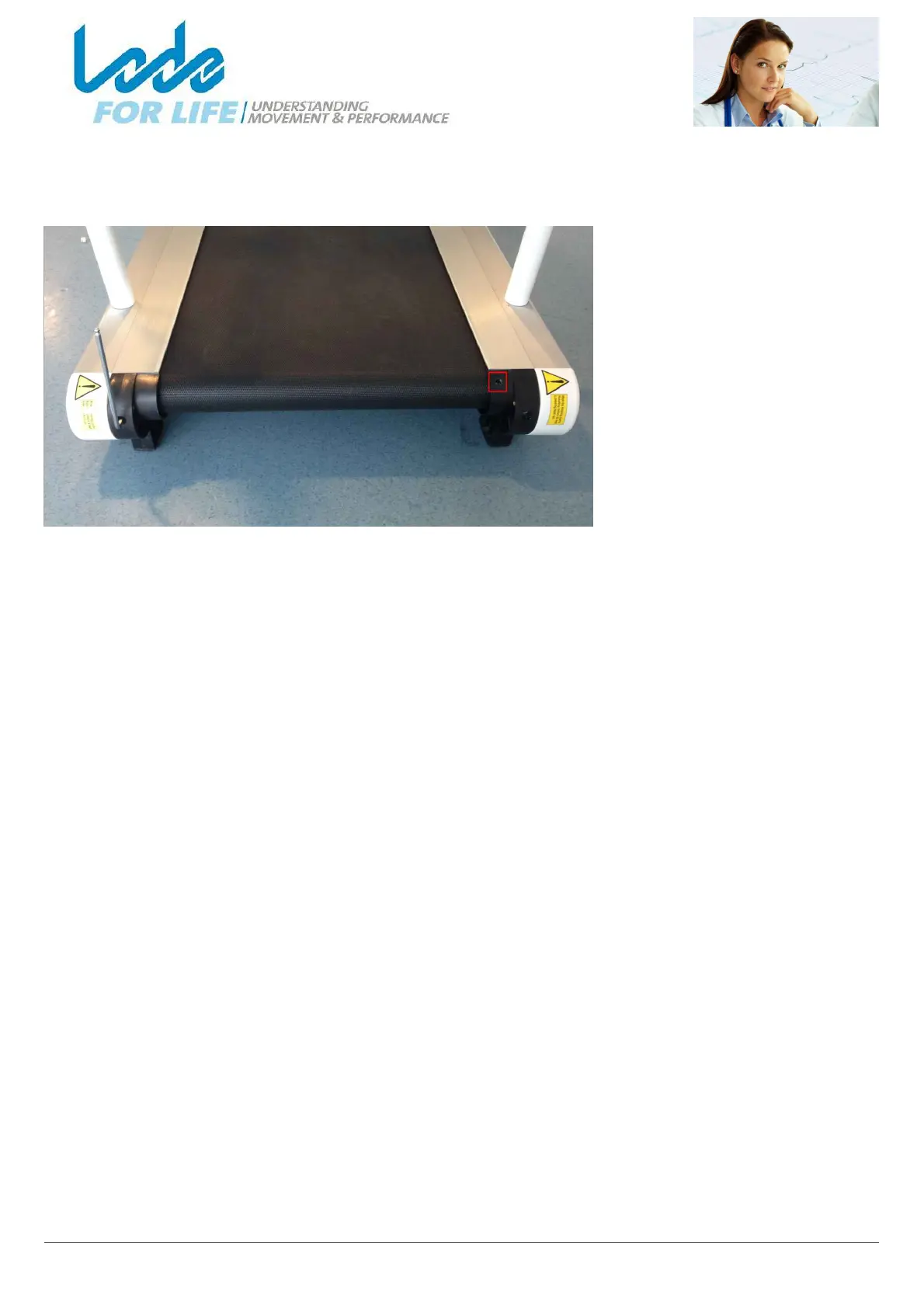

Place the allen key on the left
bolt while standing behind the
treadmill as shown on the
picture.
Adjusting the belt tension is
very easy with the key on the
left side. Turning the key
clockwise will make the belt
move to the right side of the
treadmill. Turning the key
counterclockwise will make the
belt go left.
The red marked area shows where you can check the belt alignment. The goal is to align the belt edge
exactly in the center of the hole.
