Safety
These installation instructions are intended to aid the technician with the assembly.
They are not intended for the end customer.
Important
The warning triangle indicates information on the protection of
persons, equipment and the environment.
Warning information is indented and uses bold-face headings. Observe
this information.
Note
These installation instructions are for use with the WLAN 70830 080 upgrade kit (known
as ARS) in chassis SL121.
The upgrade kit is suitable for the TV sets: Individual 40/46 Selection, Individual 40/46
Compose.
When the upgrade kit has been installed, it will be necessary to download the current
TV and DVB software available under: http://service.loewe.de http://infotip.de
The numbers in brackets, „(X)“, refer to the items described under heading 1 “Contents”.
These instructions describe the installation of upgrade kit 70830 080.
1. Contents – upgrade kit 70830 080 WLAN Module SL121
Item No. Quantity Description Order number
(1) 1 EBA -ARS WLAN SL121 34646 000
(2) 1 WLAN module 70830 001
(3) 2 WLAN 210mm antenna 70872 002
(4) 1 WLAN 350mm antenna 70872 003
(5) 1 Cable harness 11-pole 620mm 70833 001
(6) 7 Screw SF M3 x 6 Torx T10 33715
(7) 5 Felt strips 20 x 40mm 25204

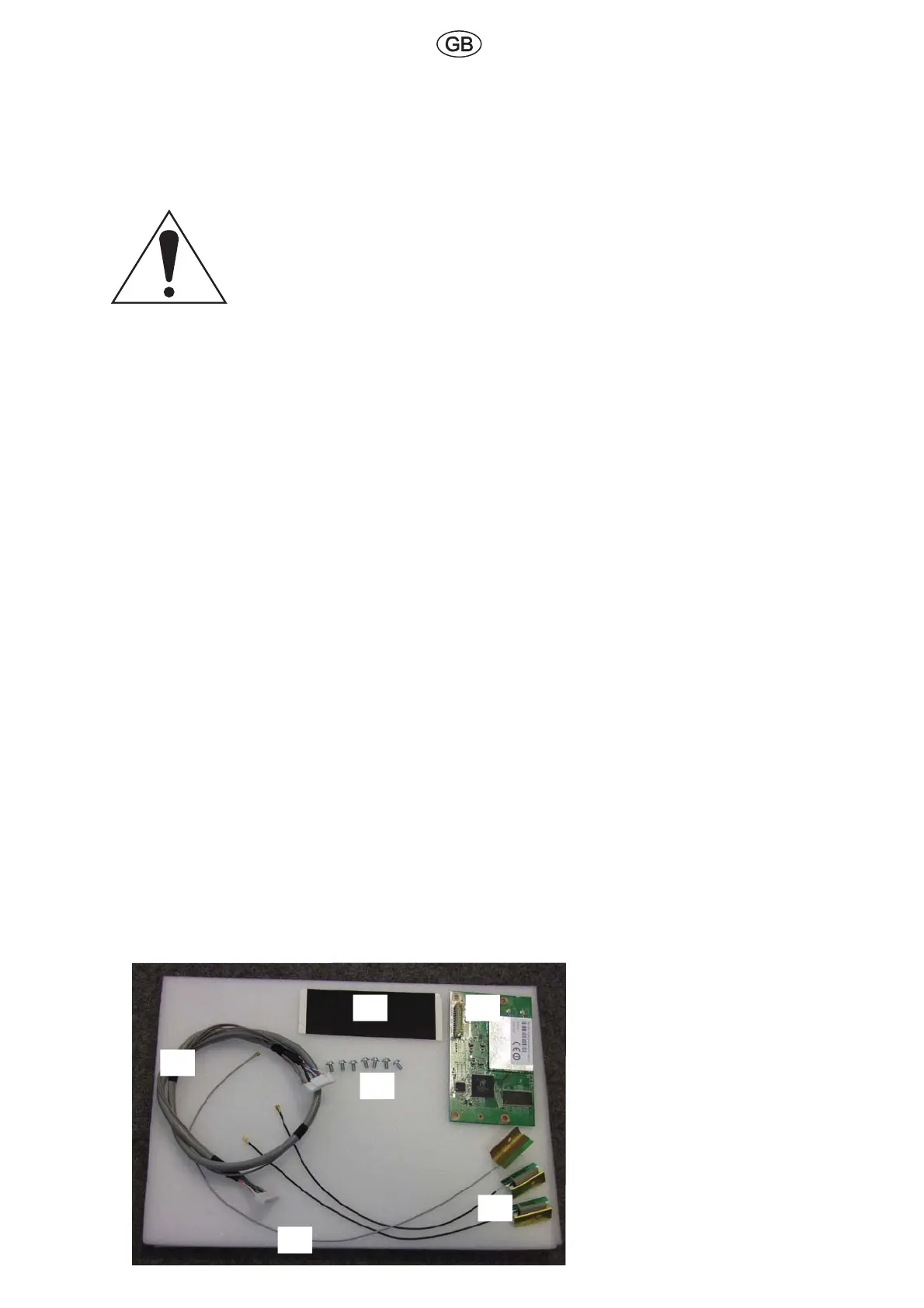

Fig. 1
Note
The felt strips (7) are pre-cut strips.
They are used to fasten the antenna
cables within the TV set.
Use according to requirements.
(3)
(2)
(6)
(4)
(5)
(7)
