3. Installing the module (WLAN 70830 080)
The description uses the TV set Individual 40 Selection LED 200 as an
example
MOS components
Avoid damage from electrostatic charging.
Observe the rules for handling MOS components.
Procedure

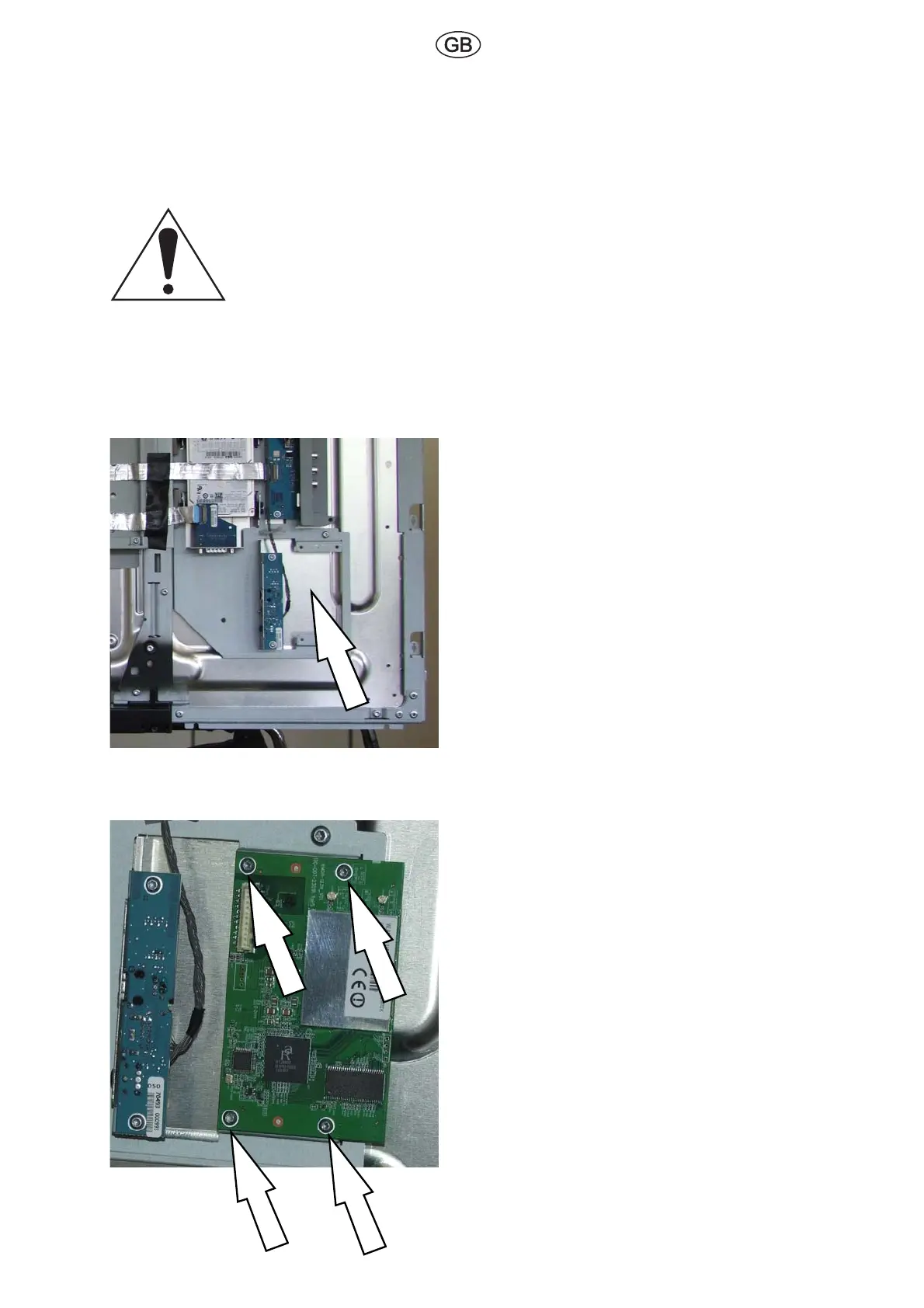

Fig. 17
3GDKNB@SHNMHMCHB@SDCAXSGD@QQNVHMÅF
is the module‘s installation location.
Fig. 18
Install the module at the indicated position.
Fasten using the screws (6), indicated with
arrows.
Seven M3 x 6 screws are provided. Use four
to fasten the module.
The others are for each antenna fastening
ÅF
