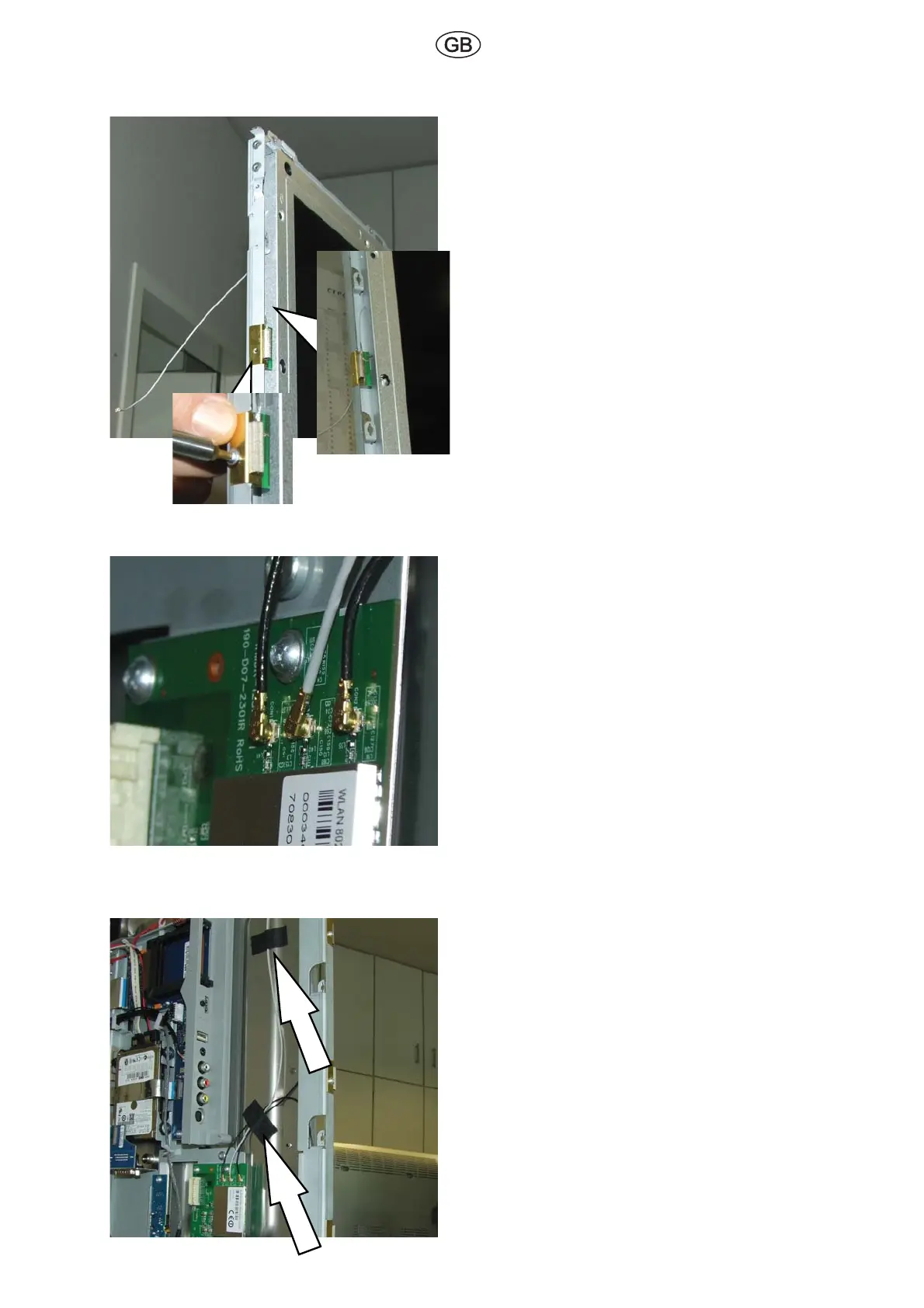

Fig. 19
Install the antennas as shown.
Begin at the top with the longest antenna.
Secure each of the antennas with a screw (6).
Fig. 20
Plug the antennas to the module as shown.
Fig. 21
Secure the antennas using the self-adhesive
felt strips (7).
.
