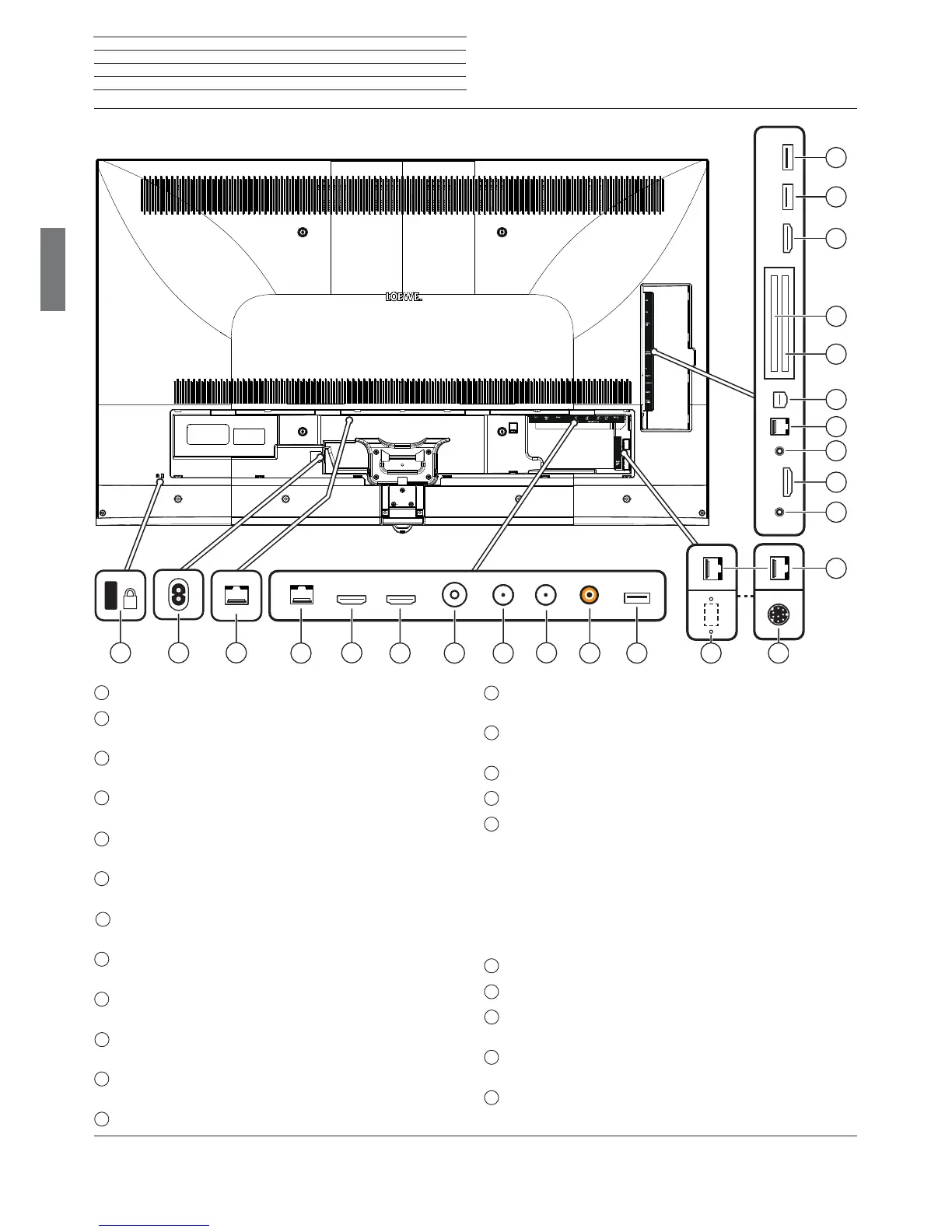

Connections rear side of the device
Position and function of the connections
1
Slot for Kensington lock
2
AC IN - Mains connection
Mains socket – 220-240 V ~ 50 / 60 Hz
3
LAN - Network connection
RJ-45 – Ethernet / Fast Ethernet
4
HDMI 1 ARC - HDMI input 1 (with Audio Return Channel)
HDMI – Digital Video IN (4K@60Hz
(4
)/Audio IN/OUT
5
HDMI 2 - HDMI input 2
HDMI – Digital Video IN (4K@60Hz
(4
)/Audio IN
6
ANT TV - Antenna/cable analogue / DVB-T/T2 / DVB-C
IEC socket – 75 Ohm / 5 V / 80mA
7
ANT SAT 1 - Satellite antenna (Sat tuner 1) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
8
ANT SAT 2 - Satellite antenna (Sat tuner 2) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
9
SPDIF OUT - Audio output (digital)
Cinch socket (orange)
10
USB 3.0 - USB connection
USB type A – USB 3.0 (max. 900mA)
11
FEATURE KIT - optional
(1A
MOTOR UNIT - rotating stand control
(1B
12
DIGITAL AUDIO LINK - Surround audio outputs (digital) – (RJ45)
(2
13
HEADPHONE - Headphone connection
Jack 3,5 mm – Headphones 32–200 Ohm
14
HDMI 3 - HDMI input 3
HDMI – Digital Video IN (4K@60Hz
(4
)/Audio IN
15
AUDIO OUT - Audio output (analogue) L/R – ( Jack 3,5 mm)
16
RS-232C - Serial interface
(3
– (RJ12)
17
AV - Micro AV socket
(3
Audio/Video IN with Scart adapter: Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
L/R
Audio/Video IN with VGA adapter:
PC/STB video signal
Component (YPbPr)
L/R
18
COMMON INTERFACE - CI slot 1 (standard V1.3)
19
COMMON INTERFACE - CI slot 2 (standard V1.3)
20
HDMI 4 UHD - HDMI input 4
(4
HDMI – Digital Video IN (4K@60Hz)/Audio IN
21
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
22
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
K
(1B(1A
(2A
(2B
3
4
12
6
7
15
5
10
19
18
16
17
1
13
14
20
2
8
9
21
22
12
11
11
(1
A: in case of bild 5.55 (56428x50) / bild 5.48 (56430x50) / bild 5.40 (56427x50). Optional connection for individual country-specific variants of the TV set.
B: in case of bild 5.55 (56428x51). Connection for a motorized swivel stand.
(2
A: in case of bild 5.55/48/40. B: in case of bild 5.32 DR+
(3
The adaptor is available as an accessory from your dealer.
(4
Only available for device type bild 5.55/48/40.
