Connecting Loewe klang 1 subwoofer via LINE IN
Via the LINE IN analogue interface, you can connect the klang 1 subwoofer to your TV set or any audio source.
Switch off all devices before connecting the subwoofer.
Connect the analogue audio output AUDIO OUT
(1
of the TV set with the LINE IN audio inputs LEFT/RIGHT of the subwoofer. To do so, use the supplied audio
cable 3.5mm jack/2 x cinch. If an audio source is used, which has separate jacks for left/right or a separate SUB/LFE output, use appropriate standard cinch cables.
One of the two wires of the speaker cable is usually marked black. Connect this black marked cable to the black screw terminal OUTPUT TO SPEAKERS on klang 1
subwoofer and the black terminal on the speaker. To this end, turn the screw of the relevant screw terminal on the subwoofer anticlockwise about 5 turns. Guide the
wire end into the screw terminal and close the screw terminal by turning the screw clockwise. Connect the unmarked wires to the red terminals.
Connect the speaker cable to the speaker according to the corresponding installation instructions.
Use the mains cable supplied to connect the 220-240 VAC 50/60 Hz socket of the klang 1 subwoofer to a 220-240V 50/60 Hz socket.
If the menu item TV speaker is active in the sound components wizard of the Loewe TV set, it may happen that after turning on the TV set, the klang 1 subwoofer
connected to AUDIO OUT is operated at a high volume. Therefore, select in the sound components wizard first the Speaker system (AUDIO OUT)
(1
(see page
14) before connecting the subwoofer to the mains.

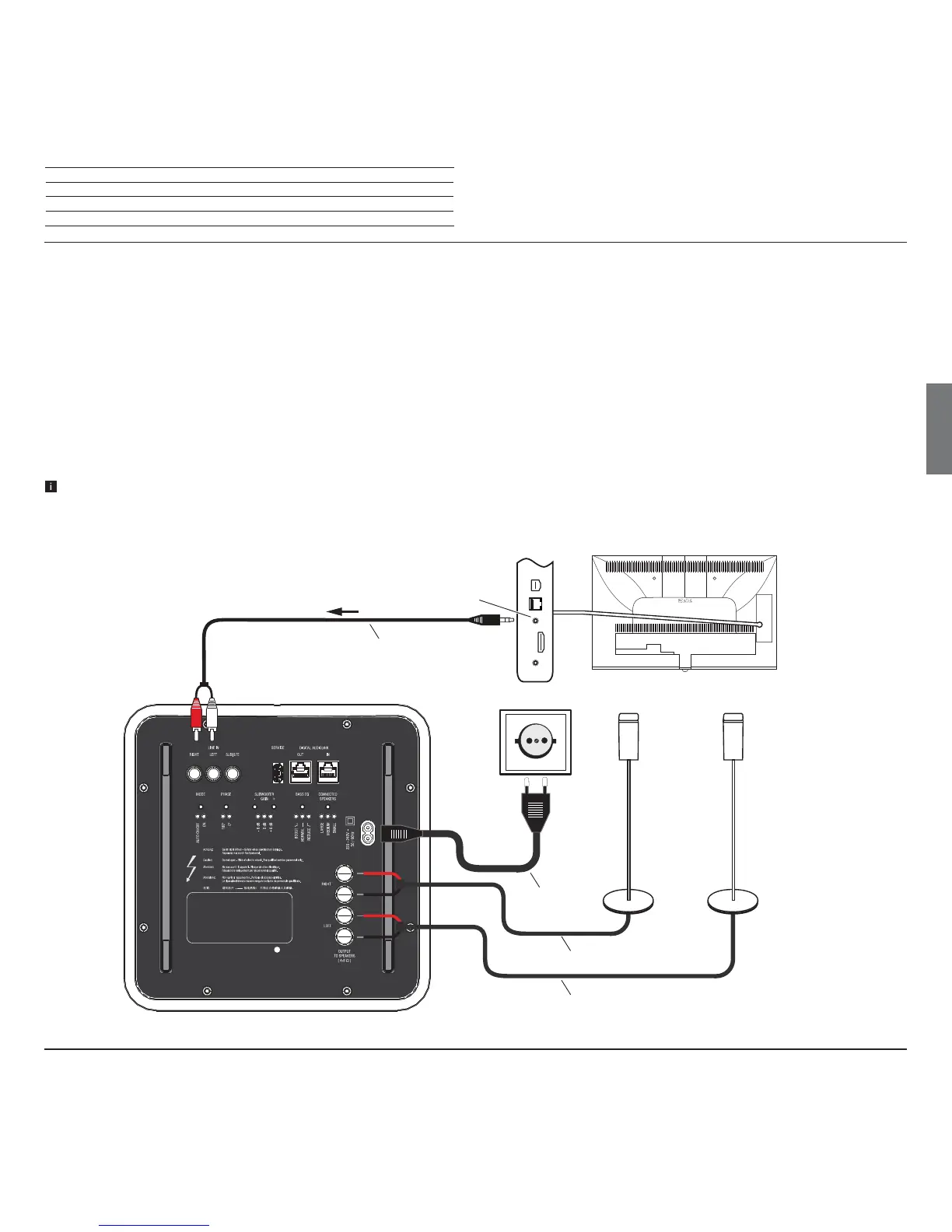

TV-set
Speaker
Left
Speaker
Right
Mains socket
Speaker cable
Speaker cable
Mains cable
Audio cable 3.5mm jack / 2x cinch
AUDIO OUT
klang 1 subwoofer
(1
For TV set types without AUDIO OUT, use the HEADPHONE connector.

