Logic Digital Controller
User Guide version 3 Page 23 of 31
Parametric Equalisation

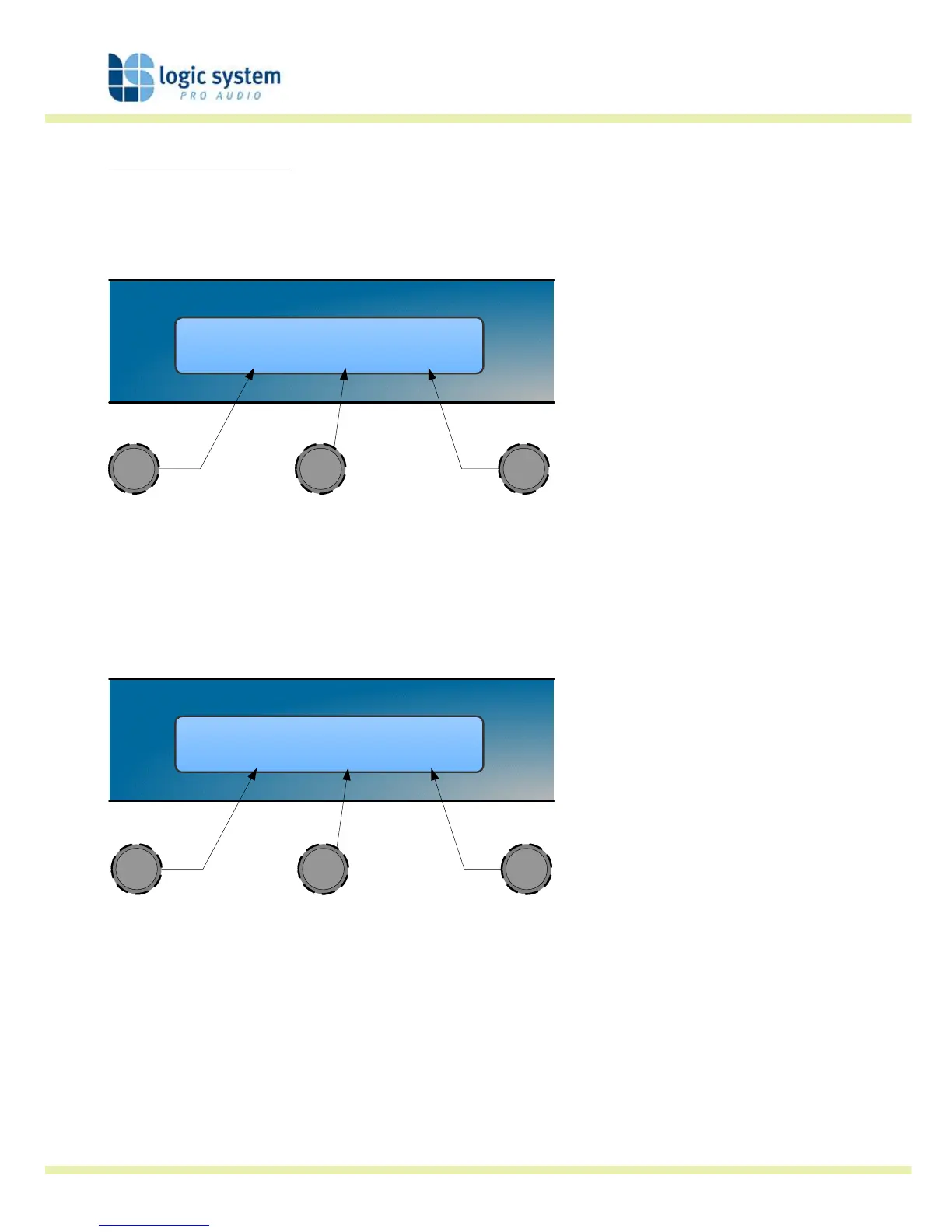

Eight sections of equalisation are provided in a similar format to the input channel equalisation;
two shelving filters and six parametric.
Out1 Freq Slope Gain
EQ>- 100Hz 12dB 0.0dB
ab
c
a cb
• Knob A: Frequency, 10.0Hz to 25.6kHz in variable steps
• Knob B: Slope, 6 to 12dB / octave in 1dB steps
• Knob C: Gain, +/-15dB in 0.2dB steps
The frequency is specified as point where the filter deviates by 3dB from the gain value.
Out1 Freq Width Gain
EQ1 100Hz 1.4Q 0.0dB
ab
c
a b c
• Knob A, Centre Frequency, 10.0Hz to 25.6kHz in variable steps
• Knob B, Width, display selectable, Q or BW (Bandwidth)
BW adjustable from 0.05 to 5 octaves in variable steps
Q adjustable from 14.2 to 0.2 in variable steps
• Knob C, Gain, +/-15dB in 0.2dB steps
