Logic Six LGSIX/01 - 13 V Supply Output; Set

Where self contained / powered sounders are used, carefully follow the manufacturers instructions,
match each of the terminals to those above.
13V Supply output
The 13V output is to power detectors which require a voltage supply (PIR detectors etc). The supply
is present at all times and may be used to supply a total load of 350mA.
Set +VE
The output , marked SET +VE is used with latching detectors. The output becomes positive on
correct Set of the system and is removed on UNSETTING the system.
4188-753 issue 1_1/03 9
Logic Six intruder system
# Terminal block
is not supplied
-

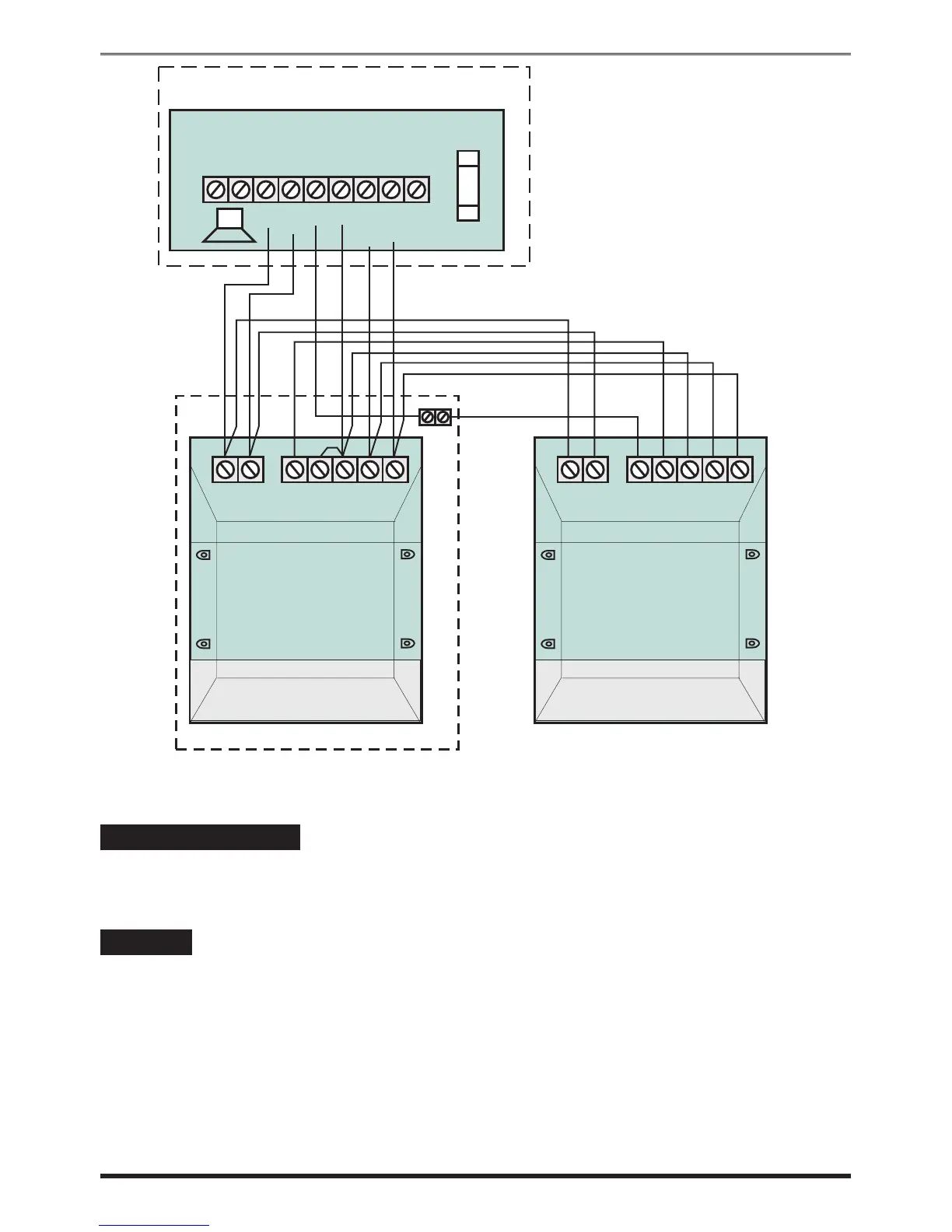

STROBE
J6
+
TA
SCB
DB
BELL
+
-
SET
+ve
1A
BELL/STROBE
F5
Sonade
Panel
Board
+- TEADB
STROBE
#
Sonade
+- TEADB
STROBE
