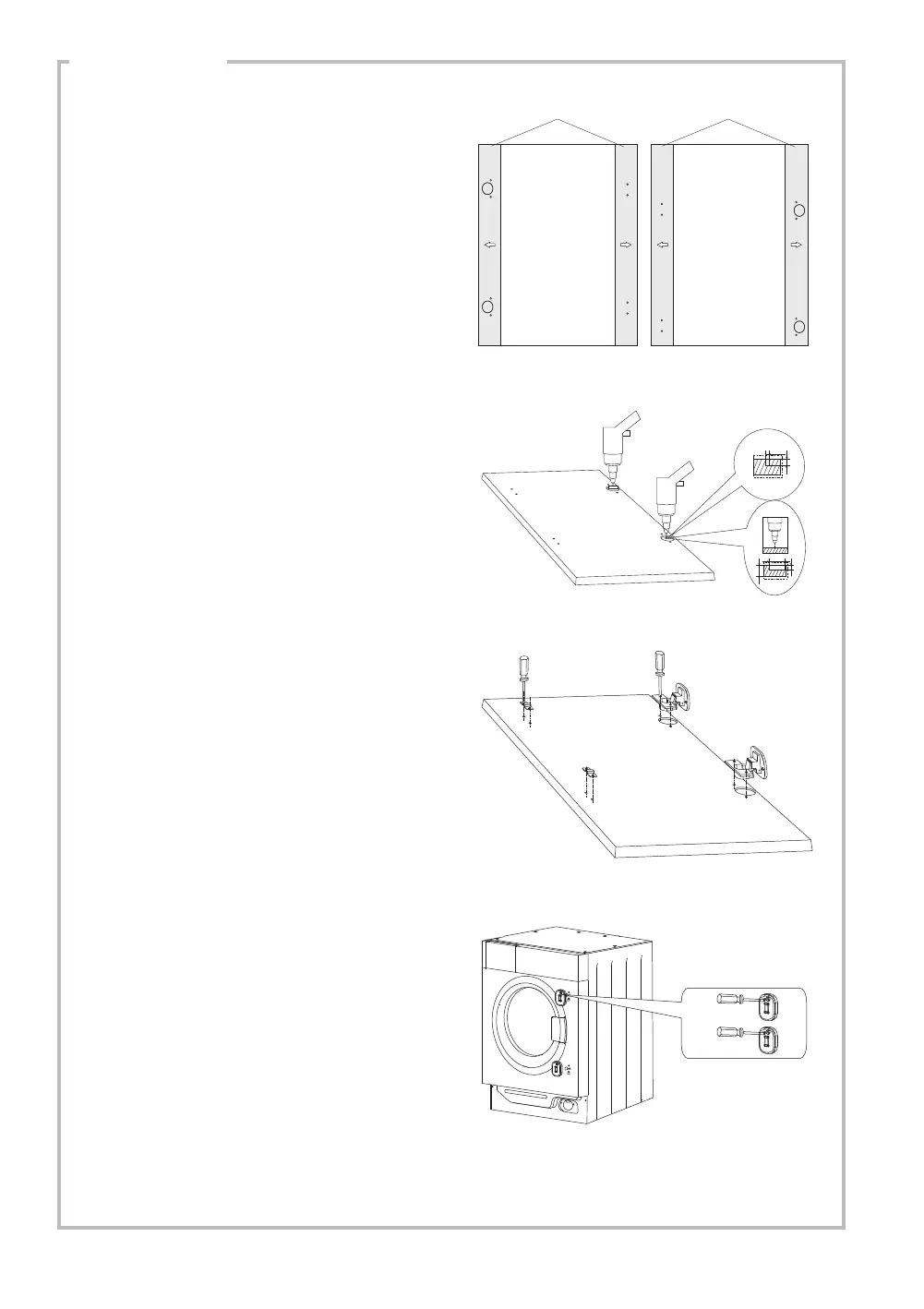

2. Decide from which direction the cabinet
door will open.
3. Depending on the direction the cabinet door
will open and close, drill holes (hinge Ø 35
mm; screw Ø 2 mm) on the cabinet door
according to the markings and measurements
on the Door Drill Template.
4. Screw the hinges on the cabinet door using
screw A.
5. Screw the spacers on the cabinet door using
screw A.
6. Depending on the direction the cabinet door
will close, screw the magnets on the machine
using screw B.
2mm
12mm
35mm
12mm
16-22
mm
Door Drill Template Door Drill Template
Door open from left to right Door open from right to left
