Logitech ConferenceCam BCC950 User Manual

Logitech BCC950 ConferenceCam
4
Contact
address
Contact
address
Contact
address
USB

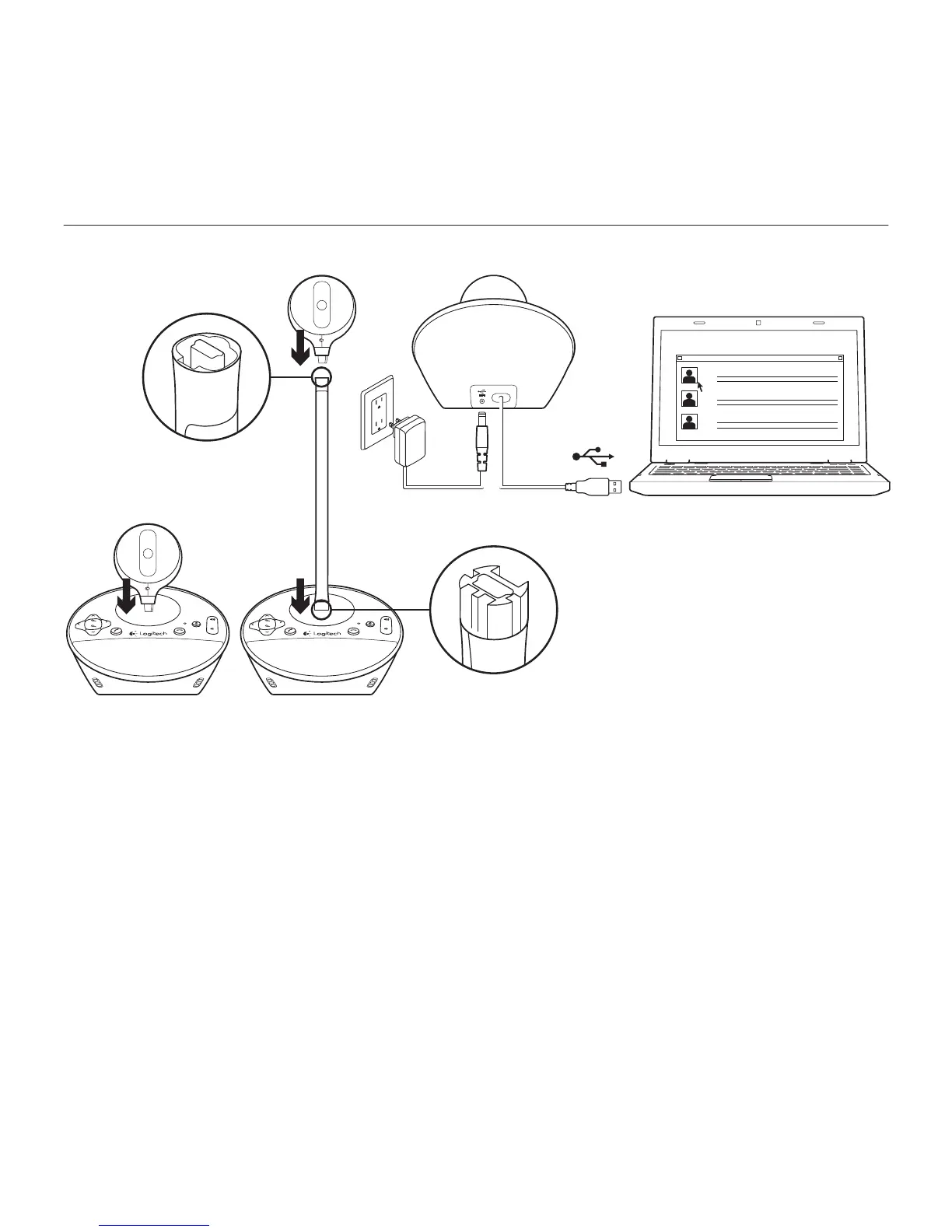

Set up your product
1. Turn on computer.
2. Attach webcam to speakerphone base.
3. Connect power adapter to speakerphone
base and AC outlet.
4. Connect the USB cable to a computer
USB port.
5. Launch a video conferencing application.
Use the stand to place the webcam closer
for eye-level conferencing. When attaching
or removing the webcam to the stand, first
disconnect the AC power.

Logitech ConferenceCam BCC950 Specifications

General

Megapixel	- MP
Auto focus	Yes
Photo feature	No
Maximum frame rate	30 fps
Remote control type	IR
Supported video modes	1080p
Video formats supported	H.264
Viewing angle, vertical	43.3 °
Maximum image resolution	- pixels
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	70.42 °
Remote control transmission distance	3.048 m
Interface	USB 2.0
Pan range	0 - 180 °
Mounting type	Stand
Product color	Black
Tilt angle range	0 - 55 °
Other operating systems supported	ChromeOS
Cables included	AC
USB cable length	2.4 m
Battery capacity	210 mAh
Number of batteries supported	1
Master (outer) case width	184 mm
Master (outer) case height	265 mm
Master (outer) case length	365 mm
Master (outer) case weight	4870 g
Harmonized System (HS) code	85258900
Package depth	173 mm
Package width	177 mm
Package height	124 mm
Package weight	1142.1 g
Digital zoom	1.2 x
Field of view (FOV) angle	78 °
Resolution at capture speed	1920x1080@30fps
Speaker frequency range	200 - 20000 Hz
Sound pressure level (max)	80 dB
Microphone frequency response	200 - 8000 Hz
Remote control battery type	CR2032

Weight and Dimensions

Depth	104 mm
Width	150 mm
Height	154 mm
Weight	568 g
