Logitech Bluetooth Illuminated Keyboard K810
12 English
Battery disposal at product end of life

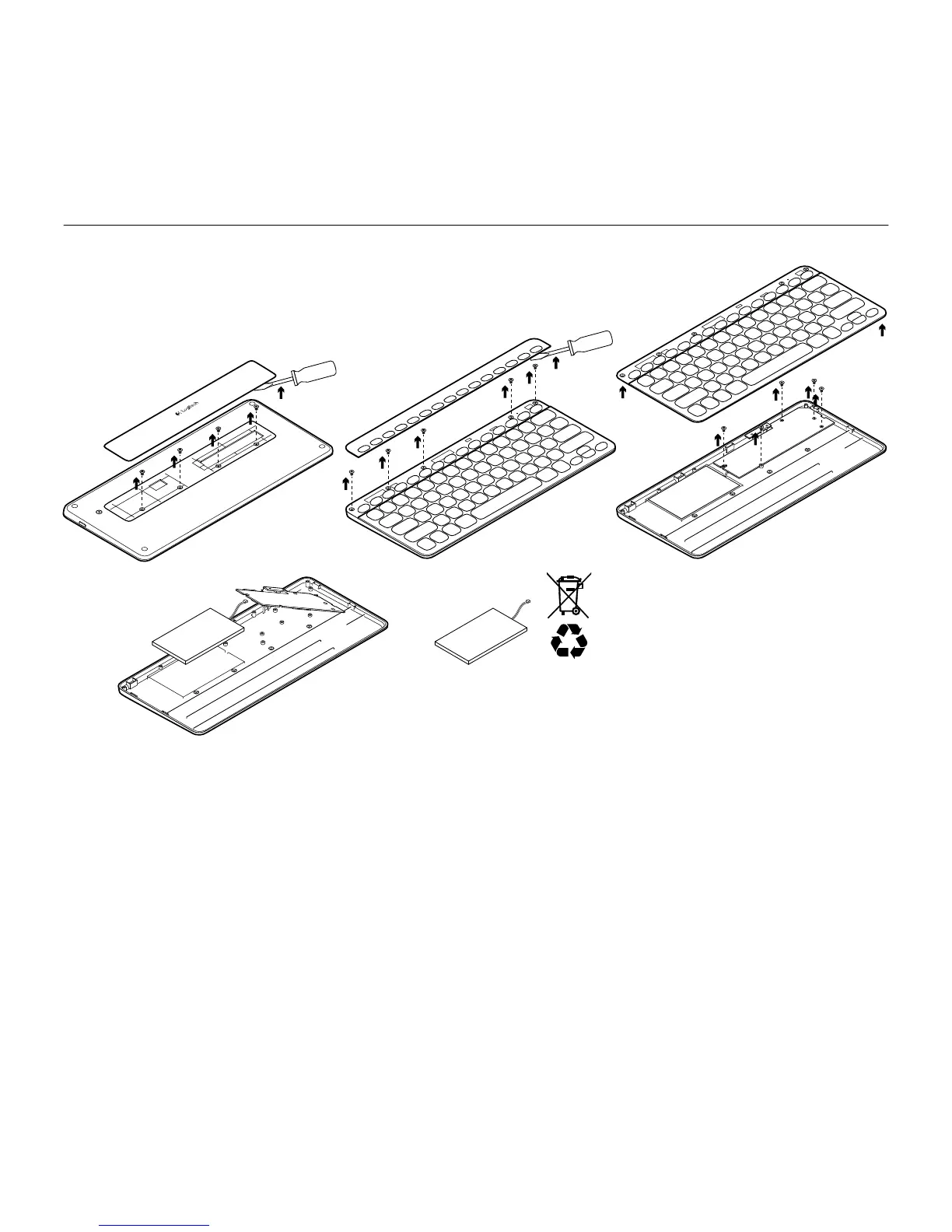

1. On keyboard bottom, pry o cover
and remove 4 screws.
2. On keyboard top, pry o cover
surrounding F-keys and remove
5 screws.
3. Separate top and bottom cases.
4. Remove 5 screws securing circuit board.
5. On bottom of circuit board,
remove battery cable. Remove battery
from bottom case.
6. Dispose of battery and product
according to local laws.
1 2
43
5 6
