Logitech Z337 User Manual

English 6

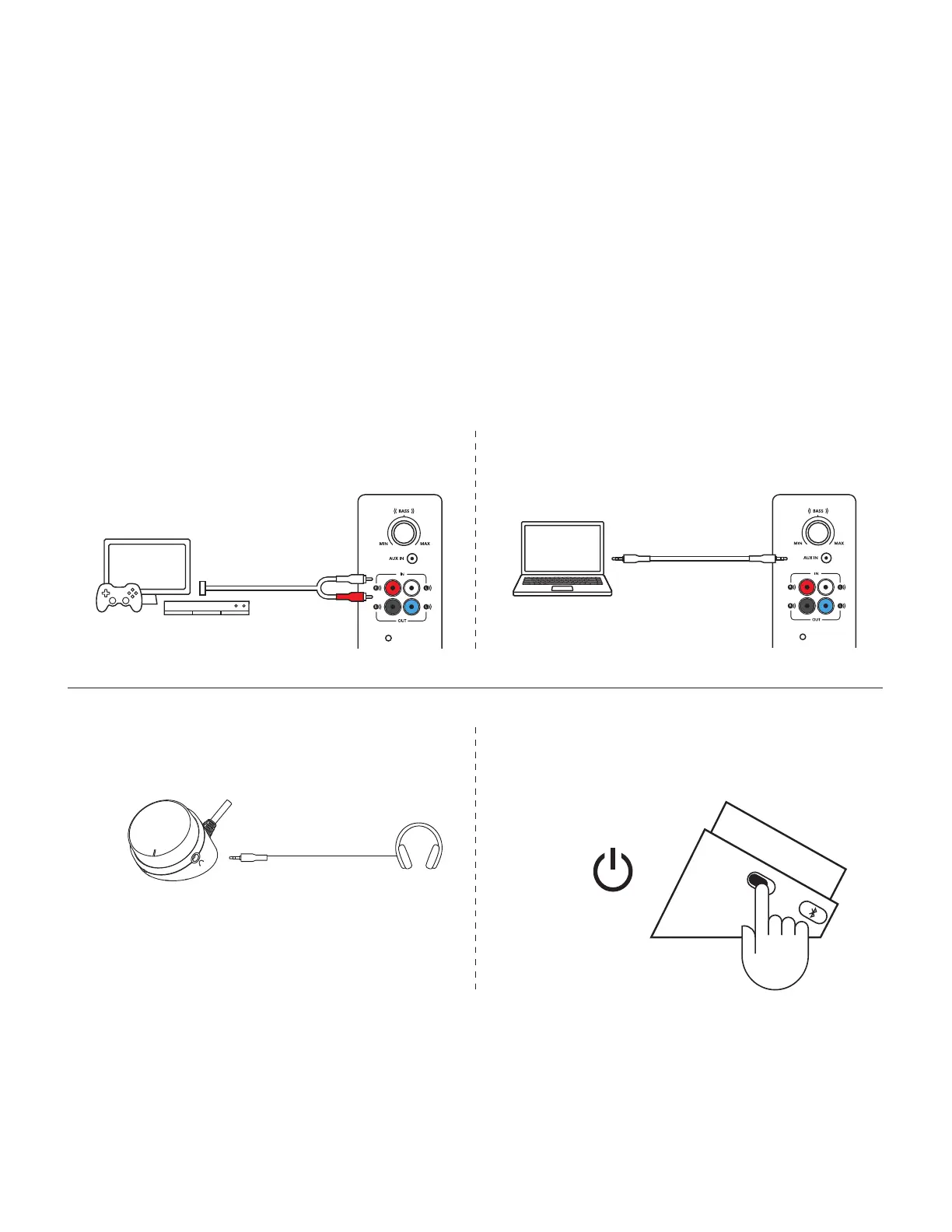

CONNECT TO AUDIO SOURCE (CONT’D)
1A. For RCA connection:
Connect one end of the RCA cable to the corresponding RCA jack on the back of the subwoofer.
Thenconnectthe other end of the cable to the RCA outlet on your device (TV and gaming console, etc.).
Note: the RCA cable is not included in the box and must be purchased separately.
1B. For 3.5 mm connection:
Connect one end of the provided 3.5 mm cable to the auxiliary input on the back of the subwoofer.
Thenconnectthe other end of the cable to the 3.5 mm audio jack on your device.
2. Plug your headphones into the headphone jack on the control pod. Adjust the volume either from
thecontrolpodor the audio source.
3. Power speakers on/o by sliding the power on/o button on the wired control pod.
1A 1B
2 3

Logitech Z337 Specifications

General

Quantity per pallet	90 pc(s)
Master (outer) case width	244 mm
Master (outer) case height	230 mm
Master (outer) case length	712 mm
Master (outer) case weight	9840 g
Harmonized System (HS) code	85182200
Master (outer) case GTIN (EAN/UPC)	50992060657711
Quantity per intermodal container (20ft)	1440 pc(s)
Quantity per intermodal container (40ft)	3000 pc(s)
Package type	Box
Package depth	350 mm
Package width	235 mm
Package height	217 mm
Package weight	4450 g
Product color	Black
RMS rated power	40 W
Recommended usage	Universal
Audio output channels	2.1 channels
Peak Music Power Output (PMPO)	80 W
User guide	Yes
Cables included	Audio (3.5mm)
Satellite speaker type	-
Satellite speaker weight	640 g
Number of satellite speakers	2
Satellite speakers RMS power	16 W
Satellite speaker dimensions (WxDxH)	108 x 90 x 192.8 mm
Subwoofer weight	2400 g
Subwoofer dimensions (WxDxH)	232 x 157 x 230 mm
Bluetooth version	4.1
Headphone outputs	1
Connectivity technology	Wired & Wireless
AirPlay	No
Control console weight	72 g
Control console dimensions (WxDxH)	54 x 55 x 55 mm
