Logitech Z906

6 English
User’s guide
Subwoofer
Inputs
1. 6-channel direct
(PC sound card)
2. RCA (stereo)
3. Digital optical
4. Digital optical
5. Digital coaxial
Console
6. DB-15 pin connector
Speakers
7. Rear left
8. Rear right
9. Front left
10. Front right
11. Center
Power
12. Cable
Input:
110V
~
60Hz 1A
(Model: S-00102)
220V
~
50/60Hz
550mA (Model: S-00103)

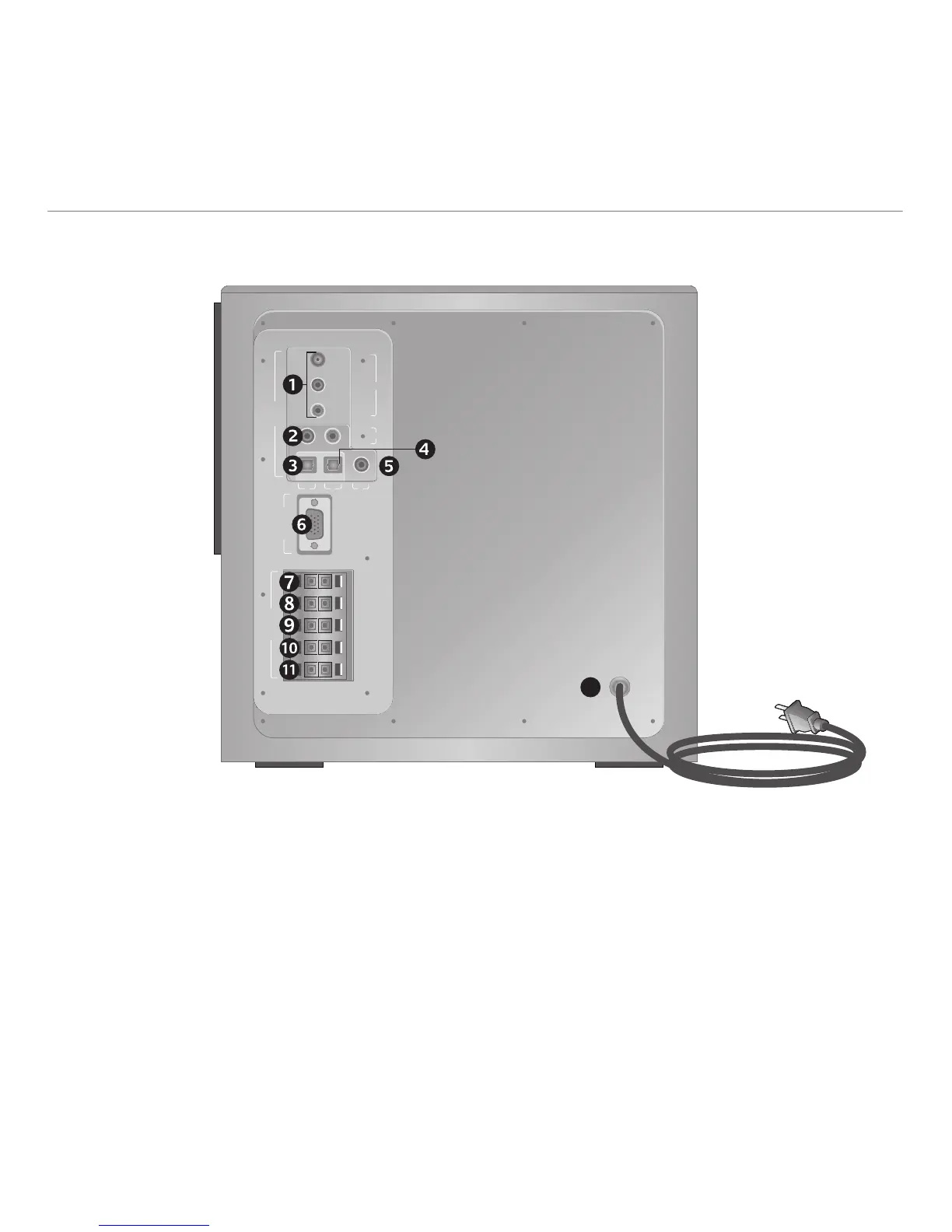

Subwoofer back panel
SPEAKERS
FRONT RIGHT
FRONT LEFT
CENTER
REAR RIGHT
REAR LEFT
INPUTS
CONSOLE
2
3
4 5
1
SPEAKERS
FRONT RIGHT
FRONT LEFT
CENTER
REAR RIGHT
REAR LEFT
INPUTS
CONSOLE
1
3
4 5
2
12
