User’s guide

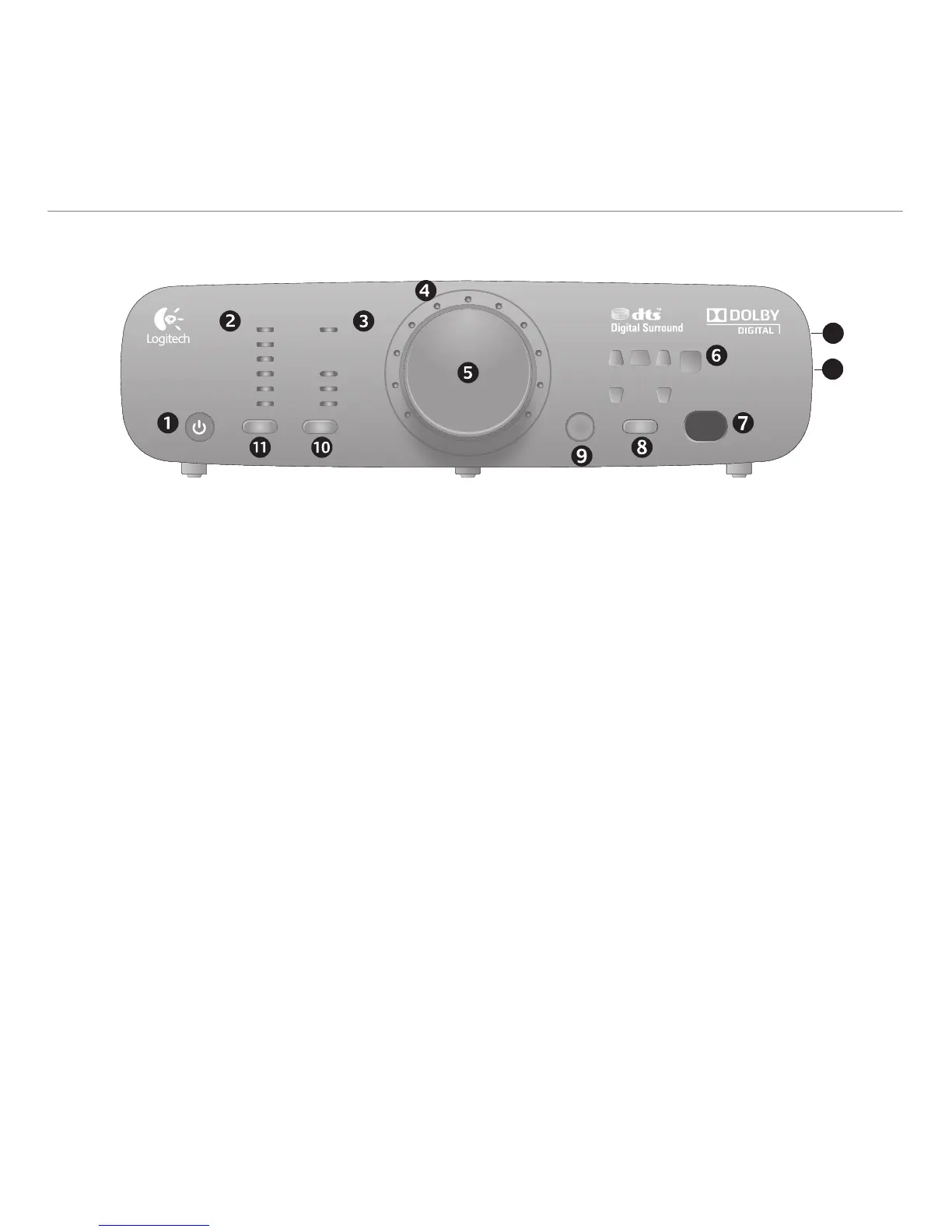

1. Power On/Off
2. Input indicator
3. Decode indicator
4. Volume/Level indicator
5. Volume/Level adjust: Use this to adjust the main
volume, subwoofer, rear satellites, and center
channel levels.
6. Speaker indicator
7. IR remote window
8. Level select: Use this to select subwoofer, rear
satellites, center channel, or main volume levels.
9. Mute: Mutes the whole system.
10. Effect select: When a stereo source is present,
use this to select your desired sound effect:
• Stereo 3D – Provides a 3D surround sound
effect through all speakers
• Stereo 4.1 - Plays stereo through both front
and both rear satellites, plus the subwoofer
• Stereo 2.1 – Plays stereo through both the
front satellites and the subwoofer
11. Input select: Use this to select your audio source
(6-channel direct, stereo, optical, coax, and Aux).
12. Headphone jack (side of console): When you
plug your headphones in, all other outputs will be
automatically muted.
13. Aux input (side of console)
INPUT
1
2
3
3D
4.1
2.1
4
5
AUX
DECODE
STEREO
MUTE
INPUT
EFFECT LEVEL
12
13
Control console
