.13.

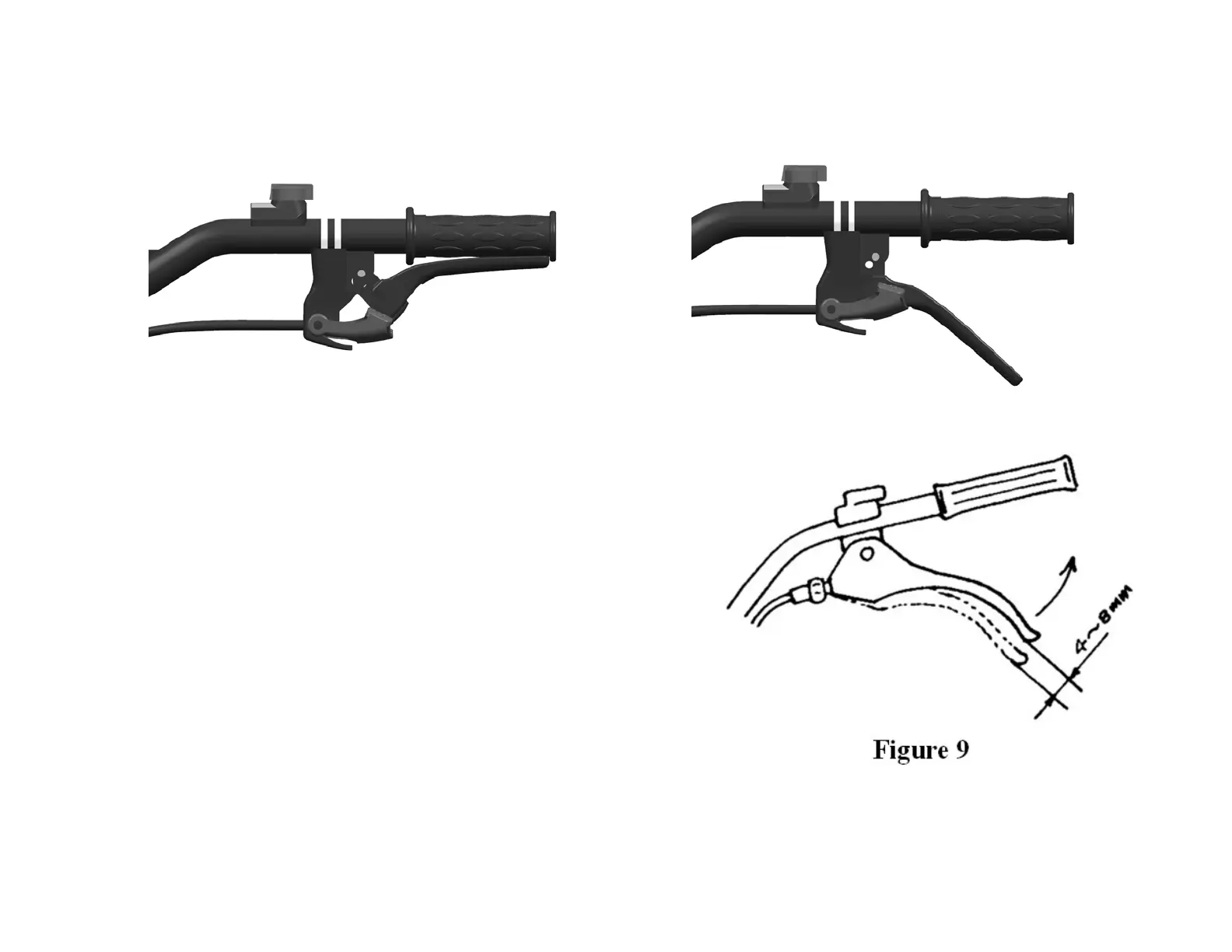

Figure 7 Figure 8
● When the user releases clutch lever, clutch will be
disengaged, and the engine power can’t be transmitted to the
tiller, and tilling blades stop rotating. (See Fig 8)
Note: improper adjustment of clutch cable will affect
normal use of the product.
● First confirm tension of clutch cable. Normally the
cable shall have a 4~8mm degree of freedom, if not, please
loosen the locking nut and adjust the cable, and tighten the
locking nut after finishing adjustment. (See Fig.9)
● If necessary, the user may start the engine to check
whether the clutch can engage and disengage properly.
