LONCIN G160F Shop Manual

G120F/G160F/G200F Part IV Disassembly and maintenance
- 36 -
2. Disassembly/reassembly of control box (optional)
1. Disassembly/reassembly
2. Inspection

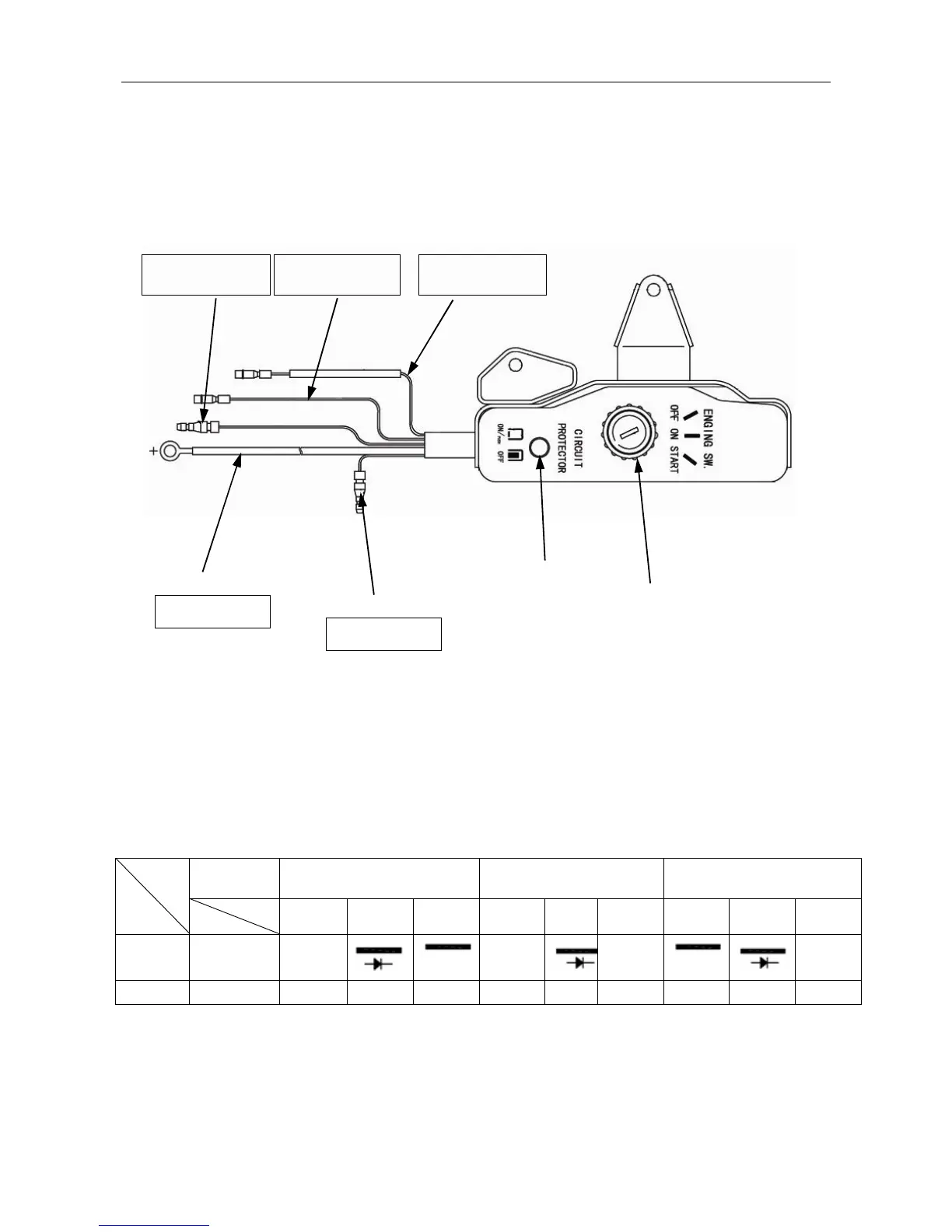

Combination switch
Check for continuity between the wires shown in the following table with the switch in different
positions.
OFF ON START
Position
S/N
Color
State
W, Bl/W Br, W Bl, ground
W, Bl/W Br, W Bl, ground
W, Bl/W Br, W Bl, ground
1 ON
2 OFF
Black/white wire
Connected to
relay’s excitation
winding
Black wire
Unidirectional
conductional
device
White wire
Connected to
relay
Black wire
Connected to
ignition coil’s stop
switch wire
Brown wire
Connected to
charging coil
Over
load
protector
Start control
switch
