TECHNICAL & CONSUMER INFORMATION
-27-

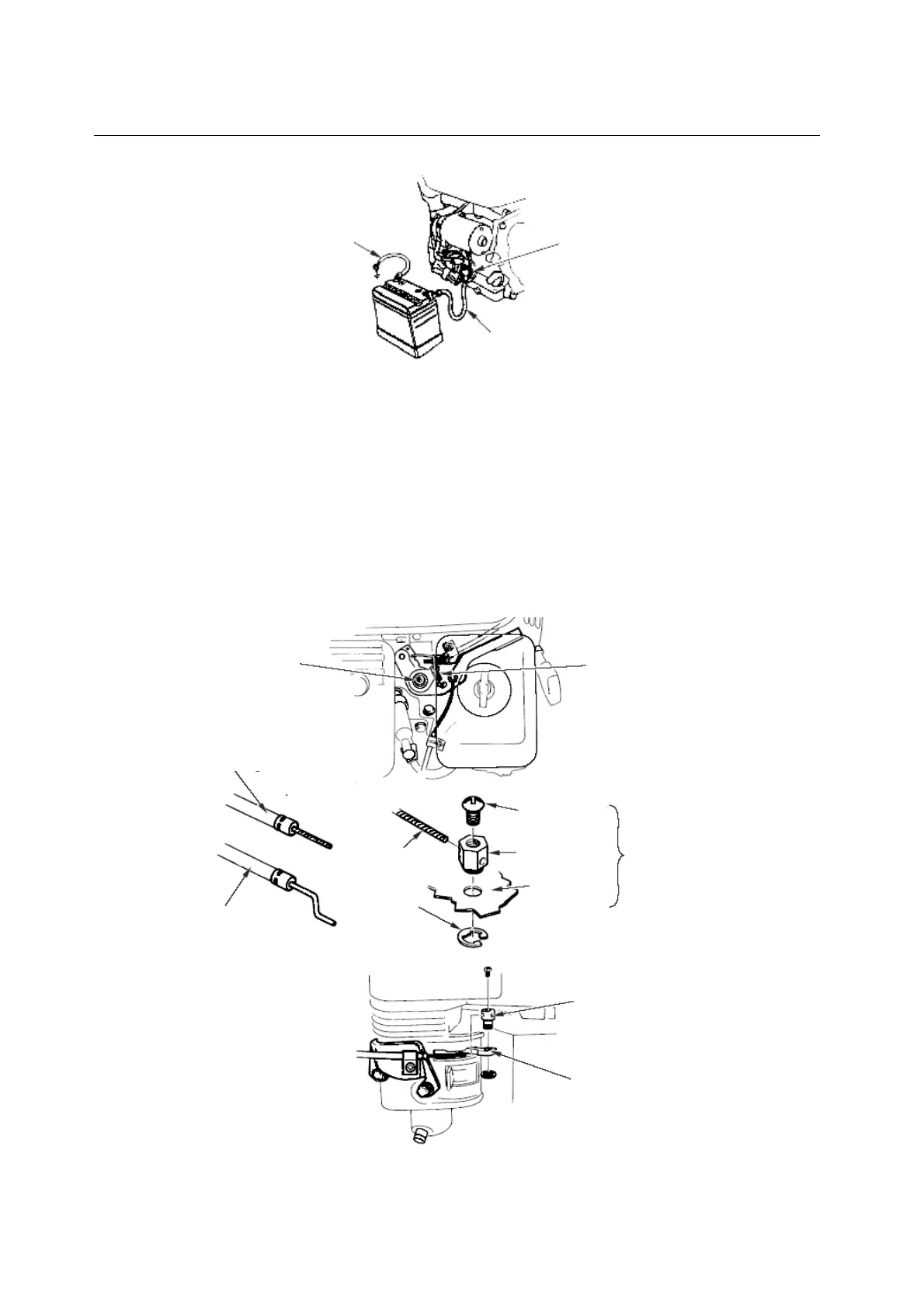

Remote Control Linkage
The throttle and choke control levers are provided with holes for optional cable attachment.
The following illustrations show installation examples for a solid wire cable and for a
flexible, braided wire cable. If using a flexible, braided wire cable, add a return spring as
shown.
It is necessary to loosen the throttle lever friction nut when operating the throttle with a
remotely-mounted control.
G120F, G160/G200F(D), G160/G200F(D)-B, G160/G200F(D)-C:
STARTER
SOLENOID
POSITIVE(+) BATTERY CABLE
NEGATIVE(-)
BATTERY CABLE
RETURN SPRING
REMOTE THROTTLE LINKAGE
REMOTE CHOKE LINKAGE
THROTTLE LEVER
PIVOT NUT
Flexible wire core
mounti
5 mm
CIRCLIP
WIRE
Solid wire core
mounti
4mm SCREW
WIRE HOLDER
THROTTLE
LEVER
OPTIONAL
WIRE HOLDER
CHOKE LEVER
To Next Page
