Long 460 - Page 11

LO
LO
LO
LO
co
co
....

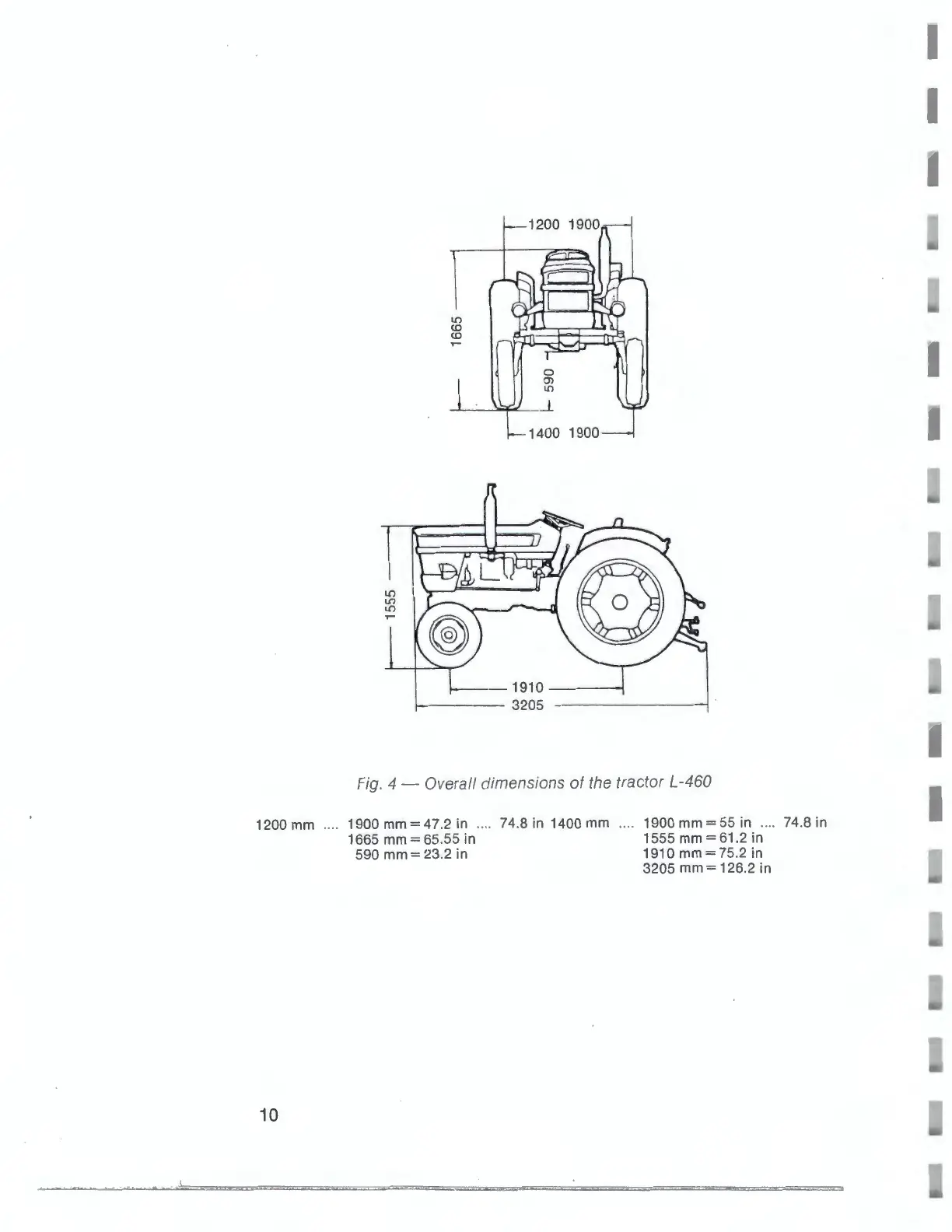

Fig. 4 - Overall dimensions of the tractor L-460
1200 mm .... 1900 mm=47 .2 in .. .. 74.8 in 1400 mm ....
1665 mm =
65 . 55 in
590
mm= 23.2 in
10
1900 mm= 55 in
1555
mm=61.2 in
1910
mm= 75 .2 in
3205
mm= 126.2 in
74 .8 in
