Long 460 - Page 10

820 1322
I.{)
,-
C')
,-
.__ ~~ 1885 ~~~ ---
-- ~~~ ~3150~ ~~~~~ ~~--

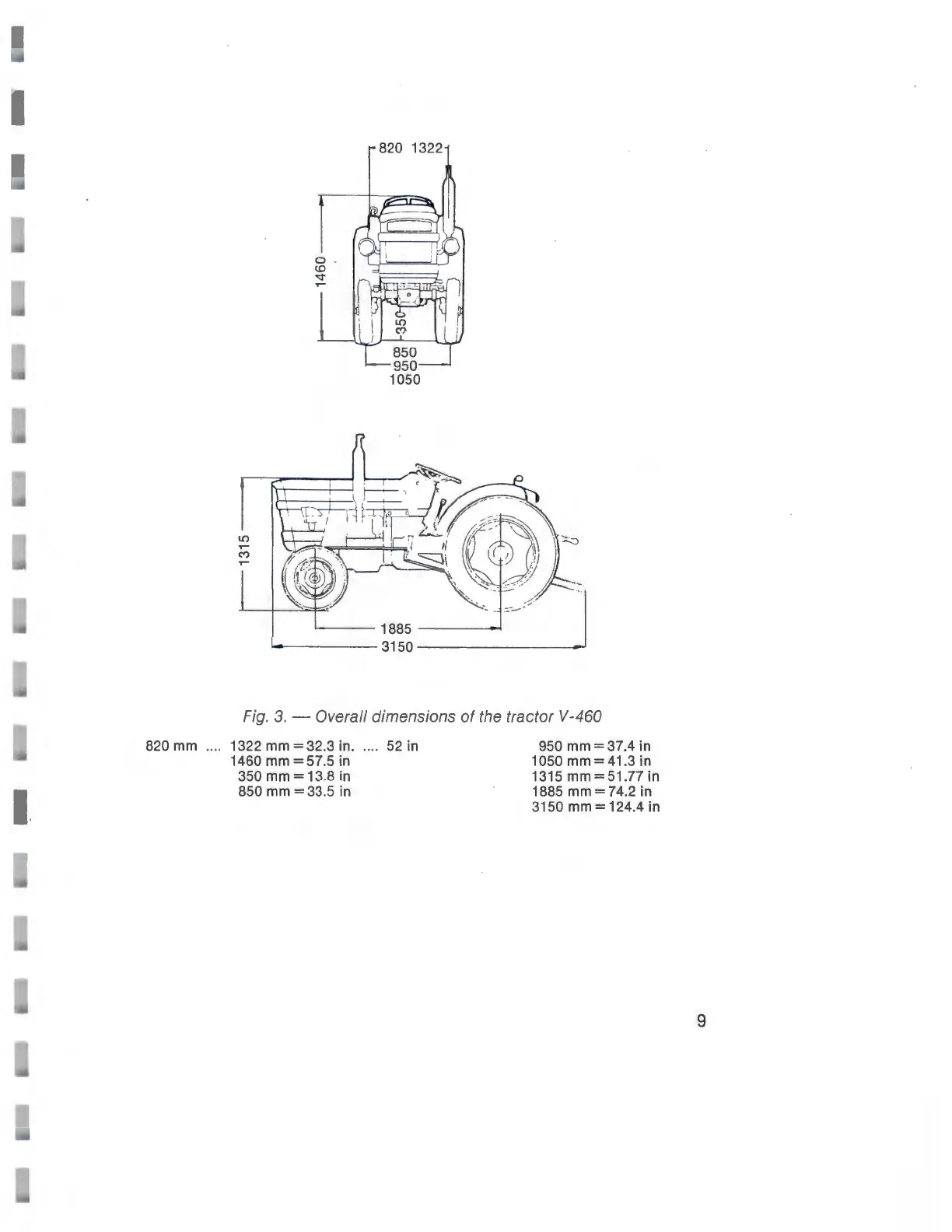

Fig. 3. - Overall dim ensions of the tr ac tor V-460
820 mm . ... 1322 mm= 32 .3 in . .... 52 in
1460
mm=5 7. 5 in
350
mm=13 .8 in
850
mm= 33.5 in
950
mm= 37.4 in
1050
mm= 41 .3 in
1315
mm=51 .77 in
1885
mm= 74.2 in
3150
mm=124 .4 in
