a) Adjustment no. 1 and 5
The rims are attached with
their lugs
on the inside
of the wheel discs .
-- -- .. ( l')-
b) Adjustment no. 2 and 6
The rims are attached with
their lugs
on the outside of the wheel
discs .
....... -- .. +-, .. -©-
c) Adjustment no. 3 and 7
The rims are exchanged from
side
to side of the two wheels without
actually turning them round and are
attached to the discs with
their lugs
on the inside.
d)
Adjustment no. 4 and 8
The rims are placed
as for adjust-
ment no. 3 and 7 but are attached to
the discs with
their lugs on the out-
side.
- -- ..--i / i) .. .
,_,

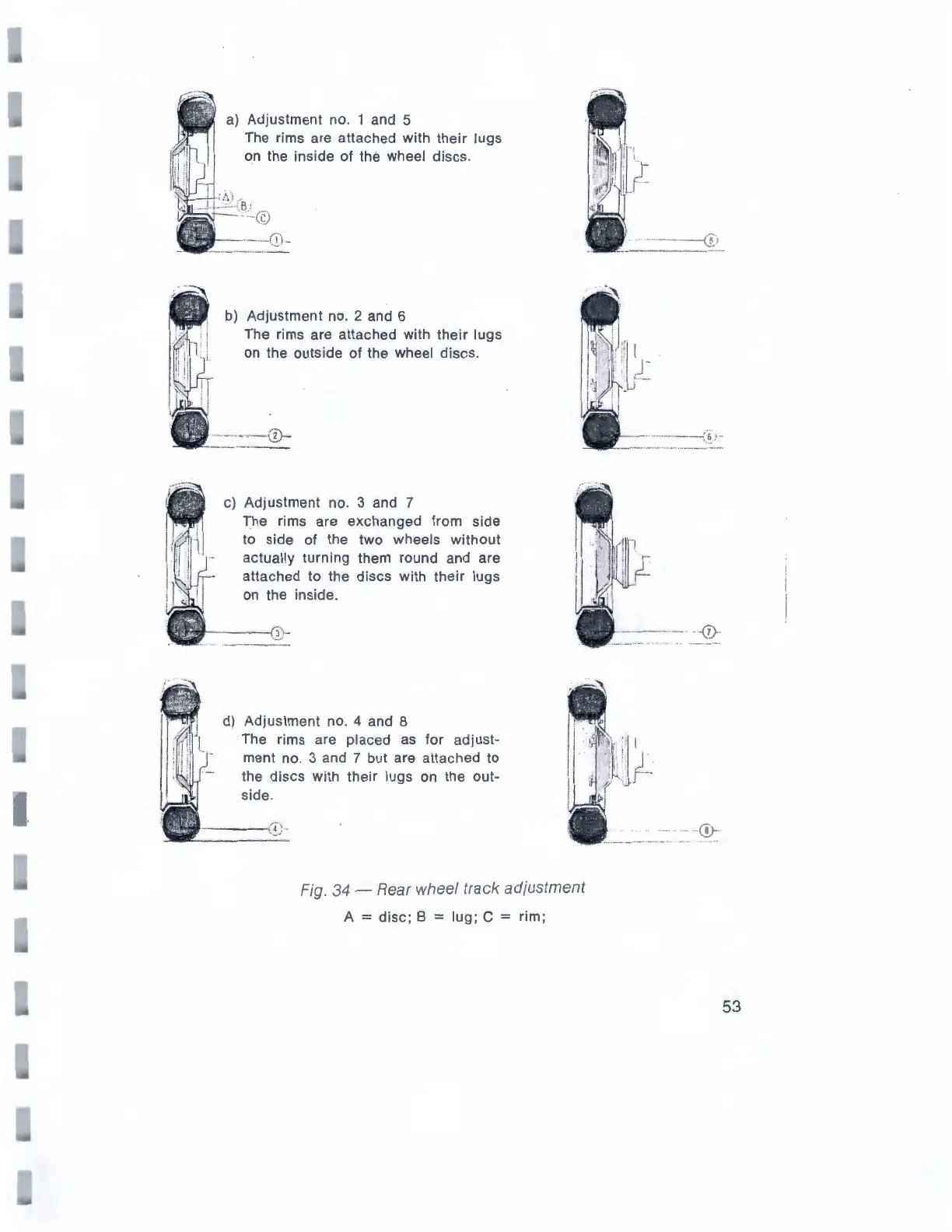

F ig. 34 - R ea r wh ee l tr ack adju st ment
A = disc; B = lug; C = rim;
