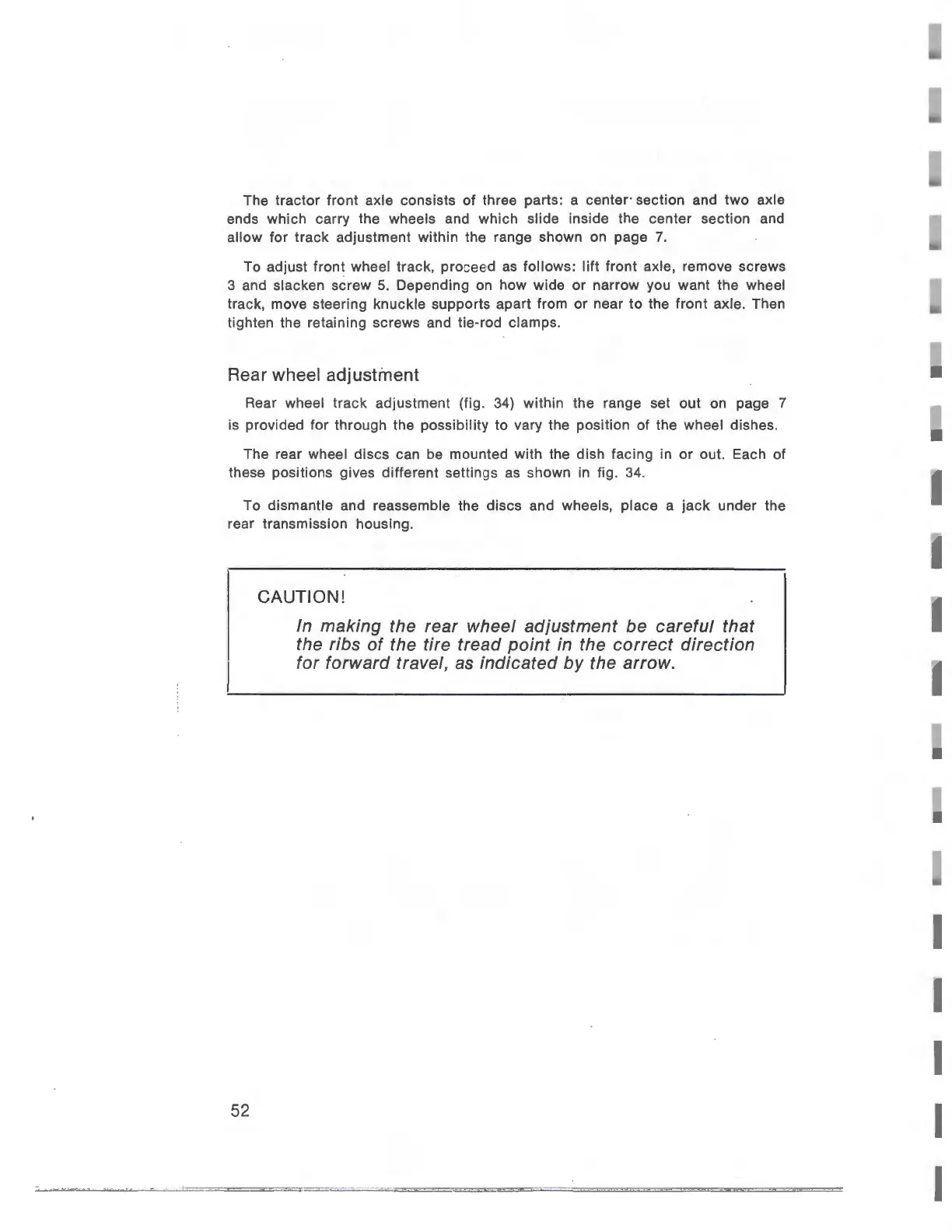

The tractor front axle consists of three parts: a center · section and two axle
ends
which carry the wheels and which slide inside the center section and
allow for track adjustment within the range shown on page 7.
To adjust front wheel track , proceed as follows: lift front axle, remove screws
3 and slacken screw 5. Depending on how wide or narrow you want the wheel
track, move steering
knuckle supports apart from or near to the front axle. Then
tighten the retaining
screws and tie-rod clamps.
Rear wheel adjustment
Rear wheel track adjustment (fig. 34) within the range set out on page 7
is provided
for through the possibility to vary the position of the wheel dishes .
The rear wheel discs can be mounted with the dish facing in or out. Each of
these positions gives
different settings as shown in fig . 34.
To dismantle and reassemble the
discs and wheels, place a ja ck under the
rear transmission
housing .
52
CAUTION!
In making the rear wheel adjustment be careful that
the ribs of the tire tread point in the correct direction
for forward travel , as indicated by the arrow.
