A useful horizontal sideways range
of
3.66" (220 mm)
on
the either side
of
the
tractor
axis is provided for.
According
to requirements the sideways swing
of
the
drawbar
on
the quadrant can be limited or stopped by means of bolt 3. Drawbar
length is adjustable by three
1 :
77"
(45
mm
) steps.
For suitable attachment of P.
T.0
.-coupled implements, observe dimension
13.
58-14
.
37
in. (355± 10 mm).
WHEEL
TRACK
ADJUSTMENT
So that the 460 tract
or
c
an
be suitable for
work
with the various implements
and
for
al
l kinds
of
agricultural jobs, its
front
axle is designed
to
give a
number
of
wheel spacings.
Generally,
it
is necessary to select
first
the rear wheel spacing most suitable
and then set the front wheels
accordingly
.
Front
wheel
track
adjustment

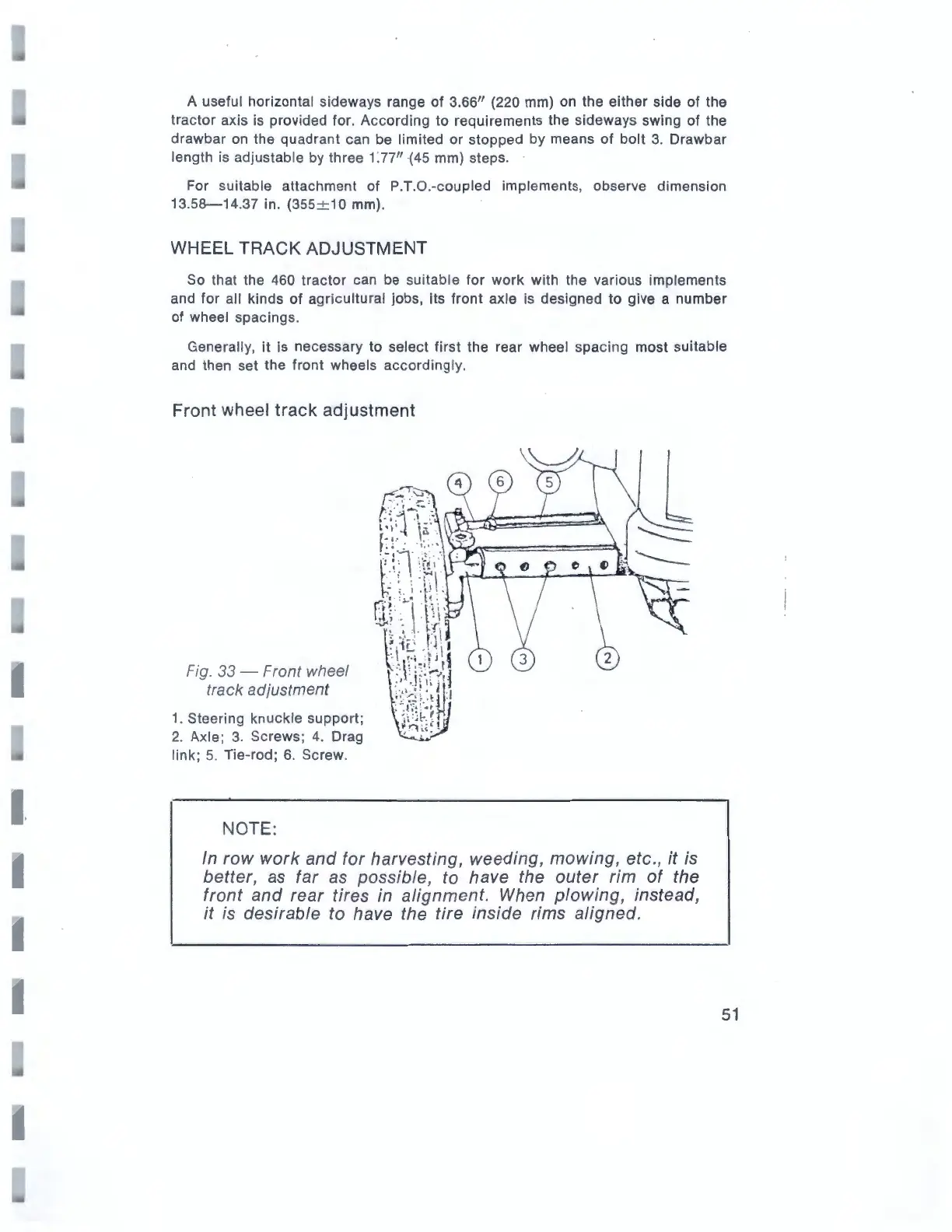

Fig.
33
- Front
wheel
track
ad
j
ustment
1. Steering knuckle
support
;
2. Axle ; 3. Screws; 4. Drag
link; 5. Tie-rod;
6.
Screw.
NOTE
:
In
row
work
and
for
harvesting,
weeding
,
mowing
, etc., it is
better
, as far as
possible
, to have the
outer
rim
of
the
front
and
rear
tires in
alignment.
When
plowing
, instead,
it
is
desirable
to have the
tire
inside
rims
aligned.
51
