Technical Data
Model. .. ... . .. .. .. .. .. .. .. .. ........... .. ............ ... ... . .. ... ...... ... . 460 OT
Type ... .. ..... .. ......... .. ......... .. .. . ... .......... .. . .. .. ............... all-purpose t ractor with 4- wheel
drive , mean power .
Tract or weight :
with oil, fuel and water ... .... . .. ... ........ . .. ... ..... ... .. 4862 lb (2210 kp)
---- 46- 74 .8
---- 78.7 ----~
-------- 133.9 -------.-1

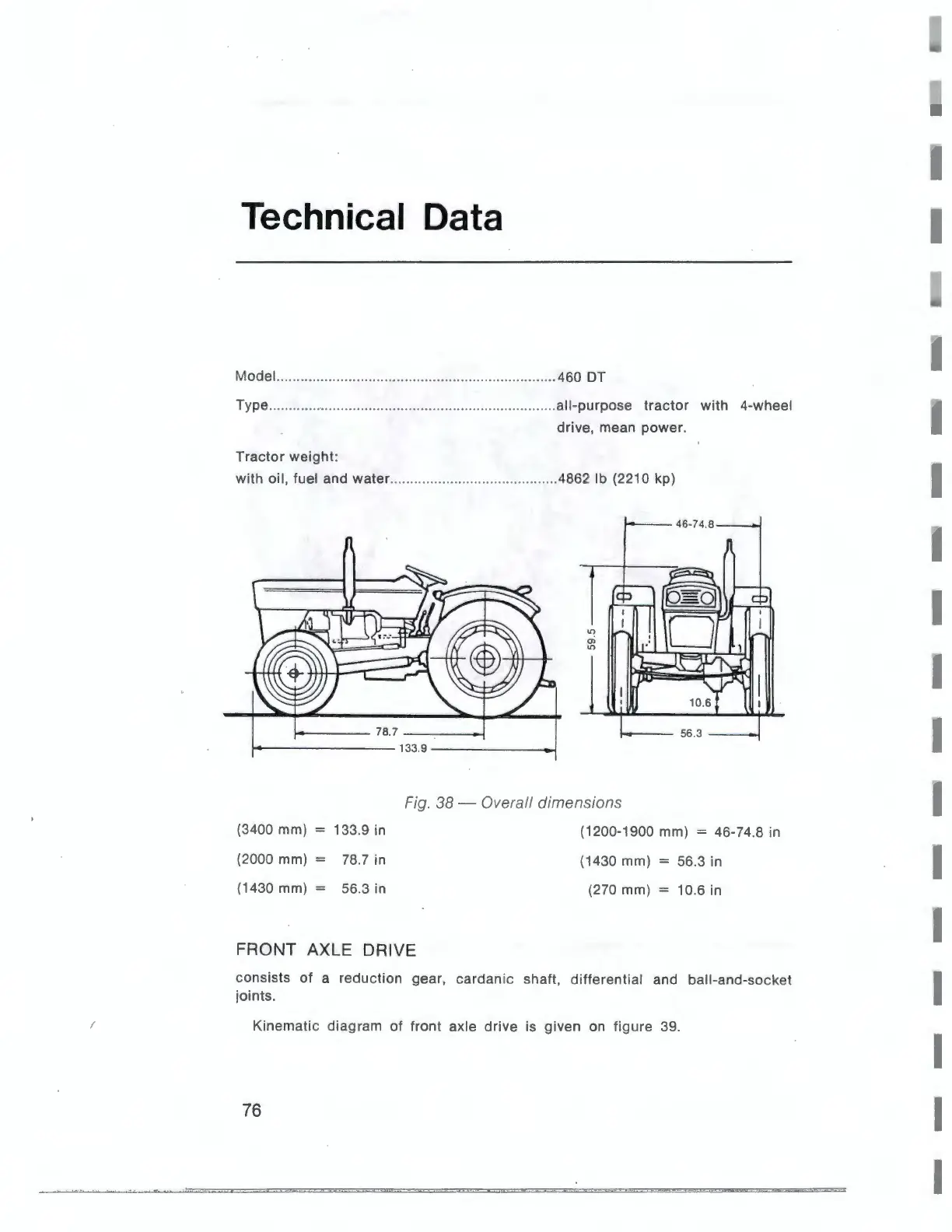

Fig. 38 - O ve rall dimensions
(3400 mm) = 133.9 in
(2 000 mm) = 78.7 in
(1430 mm) 56 .3 in
FRONT AXLE DRIVE
(1200-1900 mm) = 46- 74 .8 in
{1430 mm)
= 56.3 in
(270 mm)
= 1 0. 6 in
cons ists of a re duct ion gear , cardanic shaft, diffe rential and ball -and- socket
joints .
Kinemati c dia gr am of f ront axle driv e is given on figure 39.
