Long 460 - 460 DT WHEELS, TIRES, AND STEERING; Tire Dimensions and Inflation; Servo-Steering System

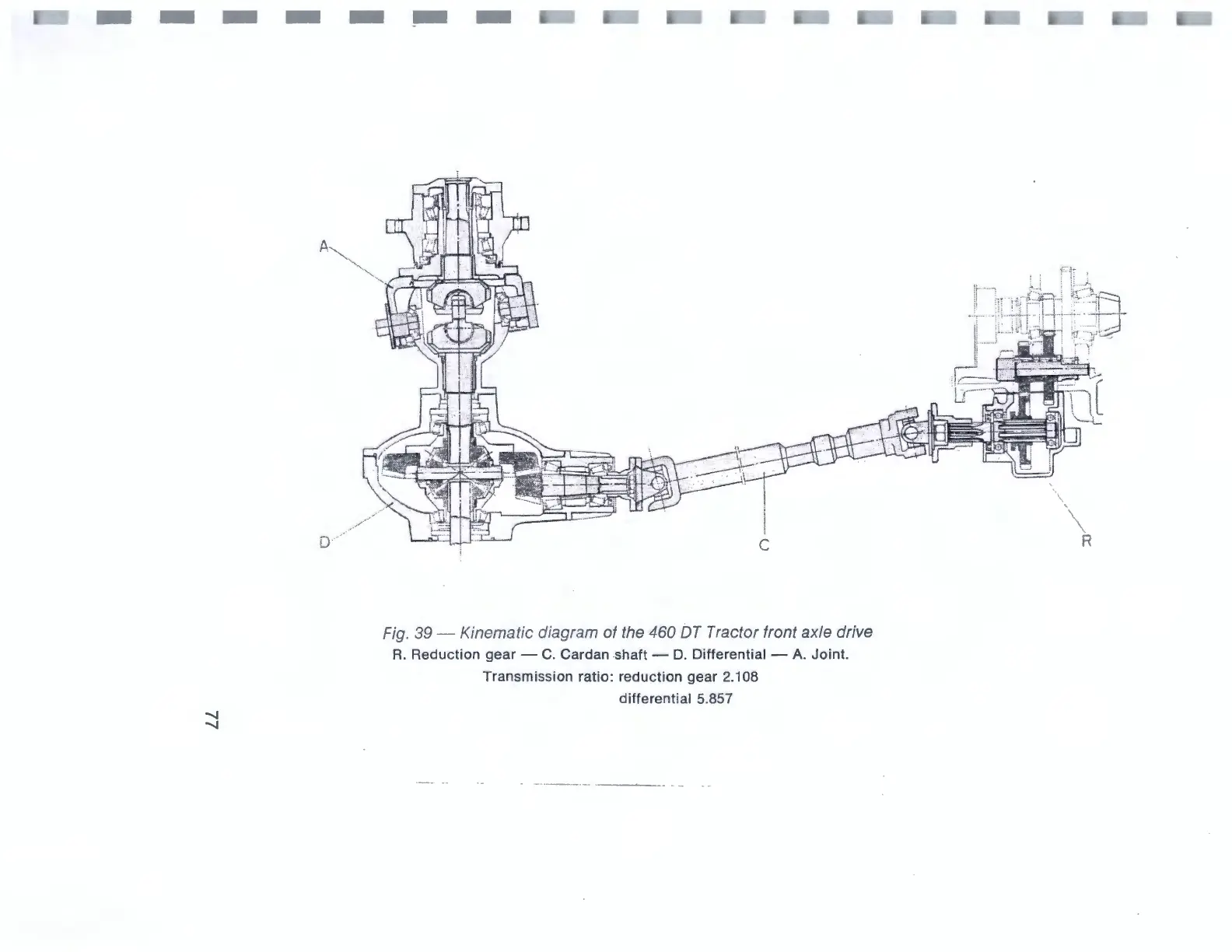

Fig. 39 - Kinematic diagram of the 460 OT Tractor front axle drive
R. Reduction gear - C. Cardan - shaft - D. Differential - A. Joint.
Transmission ratio: reduction gear 2.108
differential 5.857
- -·····--·- - ---
