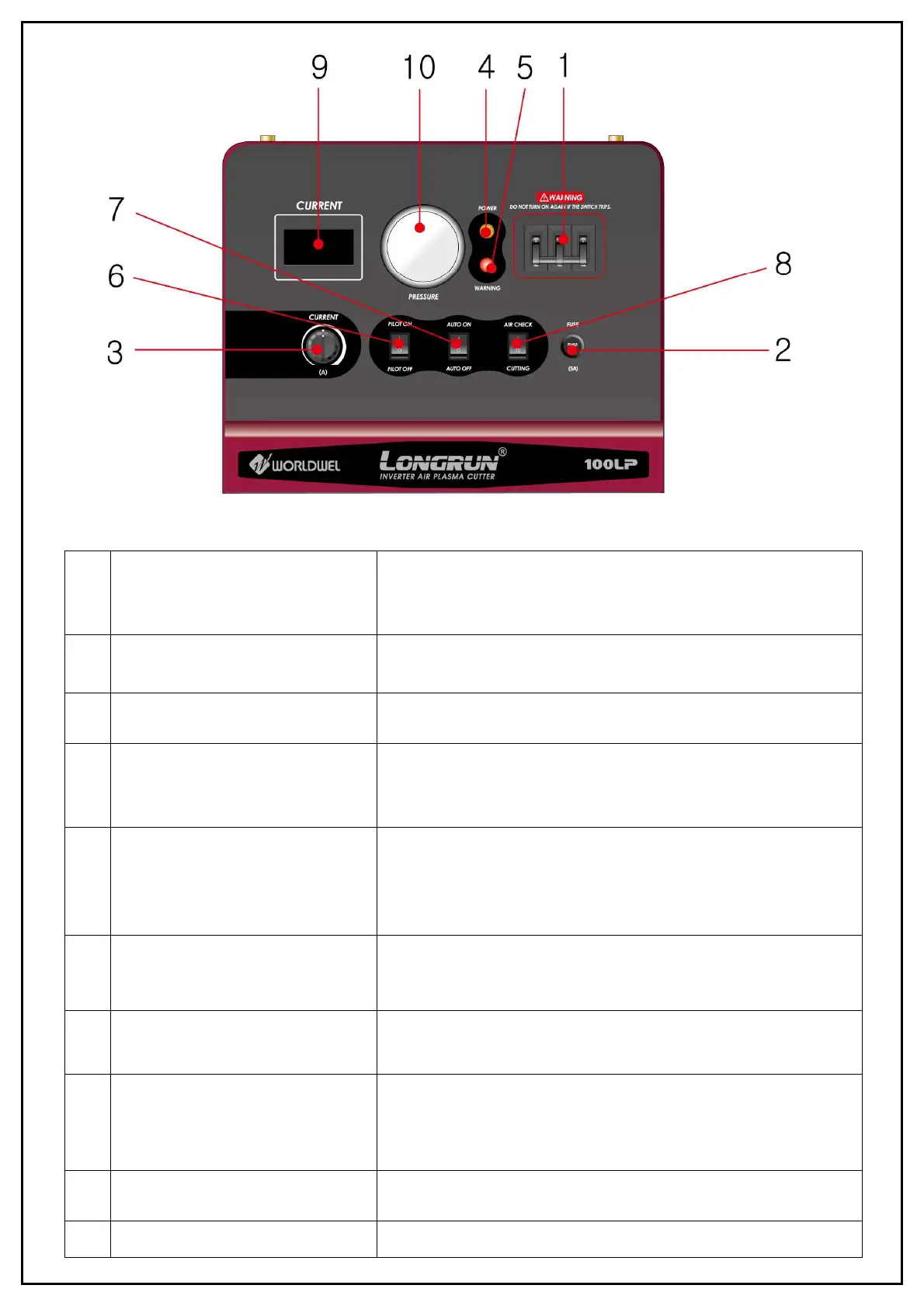

1 Power Switch
When it is turn on, the cooling fan and all of electrical circuit
inside the machine will be operated.
2 Control Fuse (5A) It will be broken by any electrical problems
3 Current Adjust Volume Adjust the current
4 Power Lamp
It indicates that the machine is on and input voltage is within
acceptable range.
5 Warning Lamp
It indicates the thermal over load or output disabled by any
electrical problems or the failure of program. When it is on, the
machine will not supply power at the output.
6 Pilot Switch
Possible the non contact cutting with workpiece by pilot
circuit.
7 Auto Switch
If it is On, no need keeping to push torch switch during
cutting
8 Air Check Switch
It is for checking the flow of the air. If this switch is ON, then the
air is flowed by opening the solenoid valve inside the machine.
9 Ammeter It indicates the cutting current
10 Air Pressure Indicator It indicates the air pressure
