Longrun 100LP - Page 6

220V
380V 440V

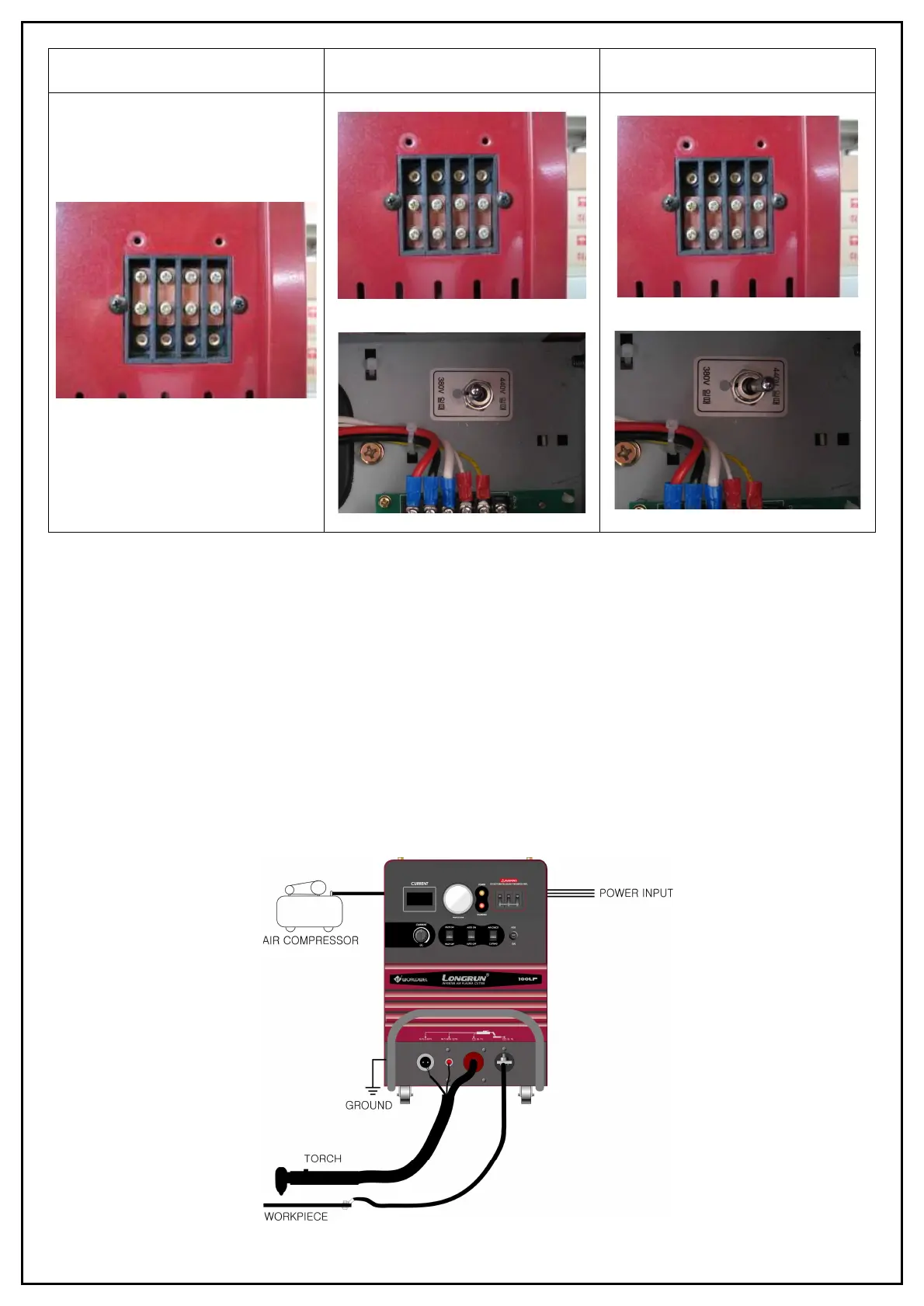

● Output Connection (Front of the machine)
․ Connect the work cable (which is connected to the work clamp) to the "+ METAL"terminal.
․ To connect the torch,
- Connect a electrode cable to the "- TORCH" terminal
- Connect a torchswitch connector to the torch switch receptacle
- Connect a pilot wire to the pilotreceptacle.
■ FRONT PANEL
