Lonking LG20DT - Braking, Shifting, and Tilt Control

37
the tilt angle of the lever, the bigger the
angle is , the faster the speed is. The engine
speed or the accelerating pedal should be
not related to the decline speed of the fork.
5
5
5

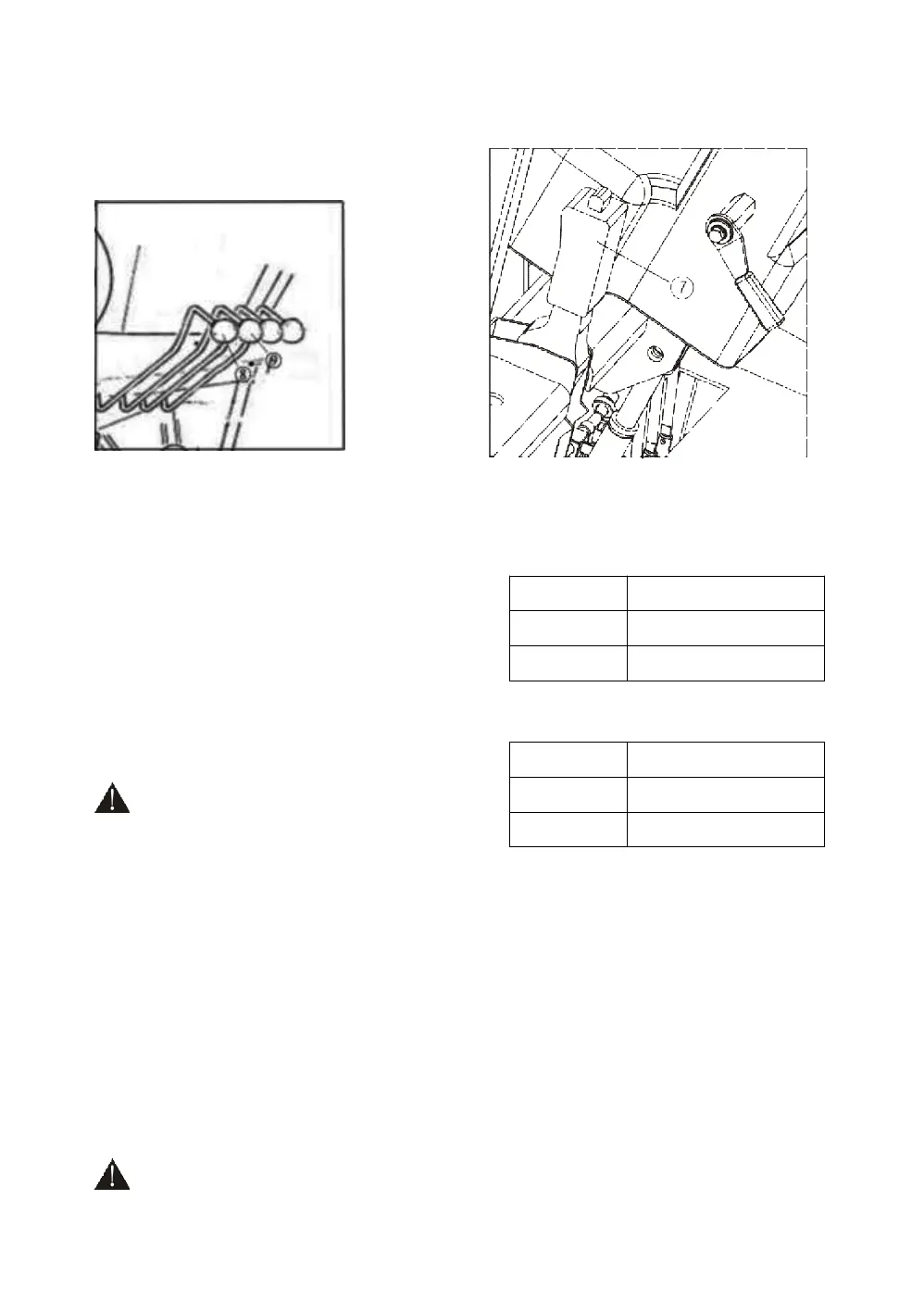

5 ） Tilt lever ⑨
T he mast can realize tilting by means of
operating this tilt lever. Pull the tilt lever
backward and the mast will tilt backward,
push the tilt lever forward and the mast will
tilt forward. The speed of tilting forward and
backward can be controlled via the tilt angle
of the lever and the accelerating pedal force ,
the bigger the angle is, the faster the speed is.
Caution
Caution
Caution
Caution
When shutting down the engine, even if push
the tilt lever forward, due to the tilt self lock
device mounted in the multi-way valve , the
mast will not tilt forward under the self lock
state.
6
6
6
6 ） Parking brake leve r ⑦
After parking the machine, pull backward the
lever to activate the brake mounted on the
output shaft of the transmission or on the
input shaft of the drive shaft. Push forward
the lever to disconnect the parking brake.
Warning
Warning
Warning
Warning
• If it is necessary to park the machine on
slope, do place the wedge under the
wheel.
7
7
7
7 ） Gear
Gear
Gear
Gear shifting
shifting
shifting
shifting lever
lever
lever
lever
The
The
The
The mechanical
mechanical
mechanical
mechanical drive
drive
drive
drive forklift
forklift
forklift
forklift
Forward — reverse lever ⑤
F Forward
N Neutral
R Reverse
Speed change lever ④
1 Low speed
N Neutral
2 High speed
Drive control is a bottom plate fixed
device. There are 4gears, t wo forward
gears and two reverse gears. Before
shifting the gear, do step down the clutch
pedal to the limit. Brake thoroughly before
changing the travel direction. When move
the lever to back up the forklift, the
back-up light is on.
