FR

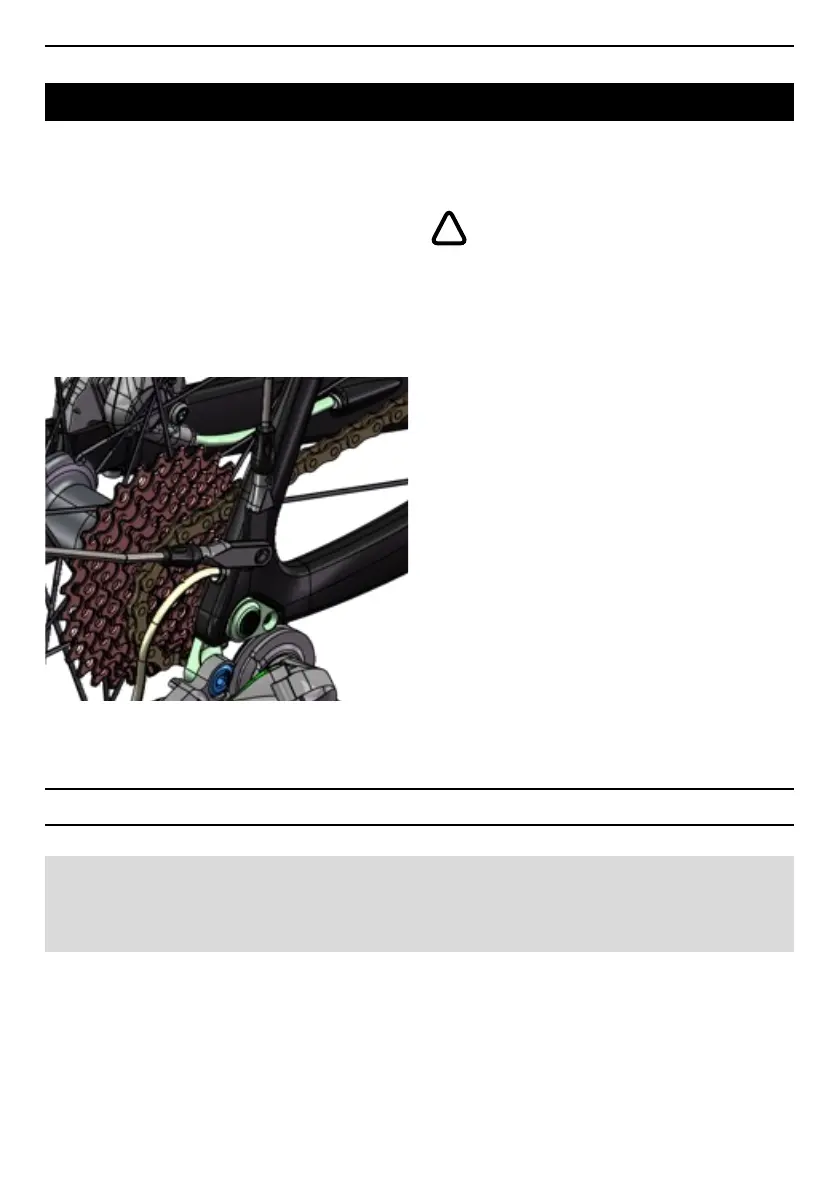

Fit the clips to the end of the stays as shown in the
photo below.
Tighten the plastic nut as much as possible.
Then secure both clips to the frame using the M4x20
CHC screw and washer.
Repeat on the other side.
Warning : Please ensure that no part of your
chosen fender comes into contact with the
tire, frame or wheel, as this could lead to a
serious or even fatal fall.
!
1 - Grease the upper bearing seat of your frame and
insert a bearing (13).
2 - Grease the lower bearing seat of your frame and
fork and insert a bearing (13), taking care to place
the outer chamfer towards the inside of the head
tube, then slide the fork into the frame.
NOTE : Les vis sont pré-enduites de frein let. Ne surtout pas les graisser. À la suite de quelques
montages/démontages, il sera nécessaire de redéposer une goutte de frein let normal ( type LOCTITE
243 ™ ).
HEADSET ASSEMBLY
17
