Look Optimum 765 - Page 41

FR

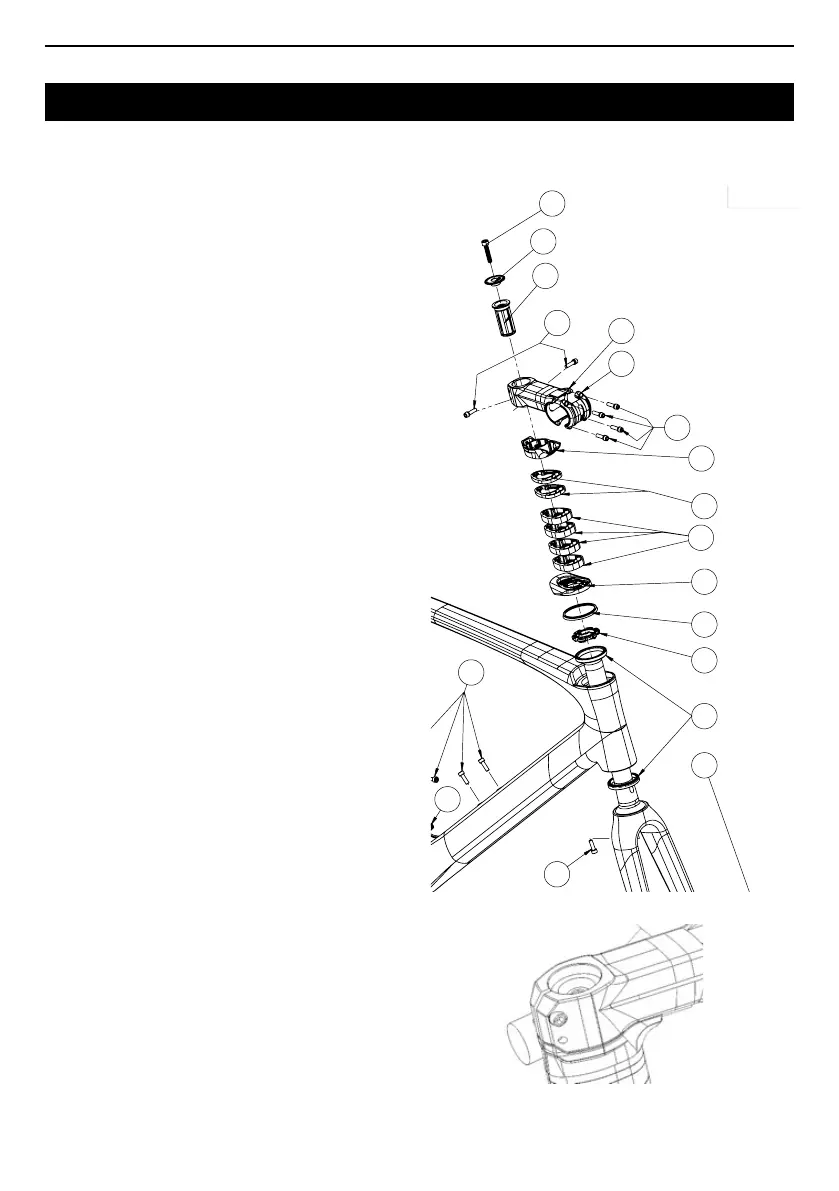

3 - Lightly grease the lower bearing seat and slide
the compression cup (12) onto the steerer tube until
it reaches the upper bearing.
4 - Slide the junction spacer (10) onto the steerer
tube until it reaches the compression cup (12).
5 - Insert as many 5mm (8) or 10mm (9) riser
spacers as required, taking care to thread the hoses
through and without exceeding a maximum rise of
50mm.
6 - Slide the dedicated under-stem cable guide (7)
with the cables inside.
7 - Degrease the dedicated stem and install it by
applying rm pressure to overcome the stiffness of
the hoses and bend them to follow the curve in the
stem.
8 - Check that the specic stem bolts are in place
(4).
9 - Insert the expander plug (3) and tighten to a
torque of 8Nm, making sure that the steerer tube is
cut to 5mm below the upper surface of the stem. The
expander plug will then cover 2mm, leaving 3mm for
the compression of the headset.
10 - Insert the screw (2) and the cap (3), then tighten
until there is no more play in the headset, without
exceeding 2 Nm.
11 - Align and tighten the stem bolts to a maximum
torque of 5Nm.
12 - Note that the frame is not compatible with a
stem other than the LOOK LS3 model.
1
2
3
9
13
20
25
23
24
11
12
14
16
19
18
5
6
22
7
10
8
15
26
27
28
21
31
15
15
29
30
4
4
17
29
NO. Name Spec. Torque Supplier assembling Qty Unit
1 Screw M6*P1.0*L30mm 2Nm Token Ming 1 pcs
2 stem cap Token Ming 1 pcs
3 expander 8Nm Token Ming 1 set
4 Screw M5*P0.8*L17mm 5Nm Token Ming 6 pcs
5 Stem Token Ming 1 pcs
6 Stem Cap Token Ming 1 1
7
Stem cable guide Token Ming 1 pcs
8 Head spacer 5mm / half Token Ming 4 pcs
9 Head spacer 10mm / half Token Ming 8 pcs
10 Head cap Token Ming 1 pcs
11 Seal Token Ming 1 pcs
12 compress ring Token Ming 1 pcs
13 Bearing Φ 49.5*Φ40*6.5mm Token Ming 2 pcs
14 Front thru axle M12*P1.5*L115mm 11Nm Tranz X Ming 1 pcs
15 Screw M5*P0.8*16mm 4Nm ADV Ming 6 pcs
16 Screw M5*P0.8*20MM 7Nm ADV Ming 1 pcs
17 washer Φ9.0*5.3*T1mm ADV Ming 1 pcs
18 Wedge Top part ADV Ming 1 pcs
19 Wedge low part ADV Ming 1 pcs
20 BB cable guied for mechanical ADV Ming 1 pcs
21 BB cable cover for Di2 ADV Ming 1 pcs
22 Seatpost Φ27.2 LOOK Ming 1 pcs
23 Rear thru Axle M12*P1.5*L160mm 11Nm Tranz X Ming 1 pcs
24 Hanger-2 inside ADV Ming 1 pcs
25 rubber cable guide for rear brake(Φ5.2) ADV Ming 1 pcs
26 rubber cable guide for mechanical(Φ4.3) ADV Ming 1 pcs
27 rubber cable guide for Di2(Φ2.8) ADV Ming 1 pcs
28 Hanger-1 outside ADV Ming 1 pcs
29 Screw M4*P0.7*14mm 3Nm ADV Ming 3 pcs
30 SS Bridge by size ADV Ming 1 pcs
31 rubber plug cover for Φ7.5 on ST ADV Ming 1 pcs
ASSEMBLY
Drawn by
Date
Cheked by
PART
REFERENCE
Resp Date Ind.
31-10-2022
Material
SCALE 1:4
SHEET A2
Date
Treatment
Modification
RH 30/11/2022 01 No.9 quantity from 4pcs->8pcs
All information contained on this drawing is property of LOOK CYCLE INTERNATIONAL. Its reproduction for any use in any way or for commercial
purpose is forbidden. All rights on this material are reserved.
Volume (mm3) Mass (g)
rhuang
765 OPT2 Exploded drawing_ADV
CD-RT45(765 OPT2)
1817
