EXPANDER PLUG
Your 765 comes with an expander plug that is
specically-developed for the 765 steerer tube
and pre-assembled in our factory.

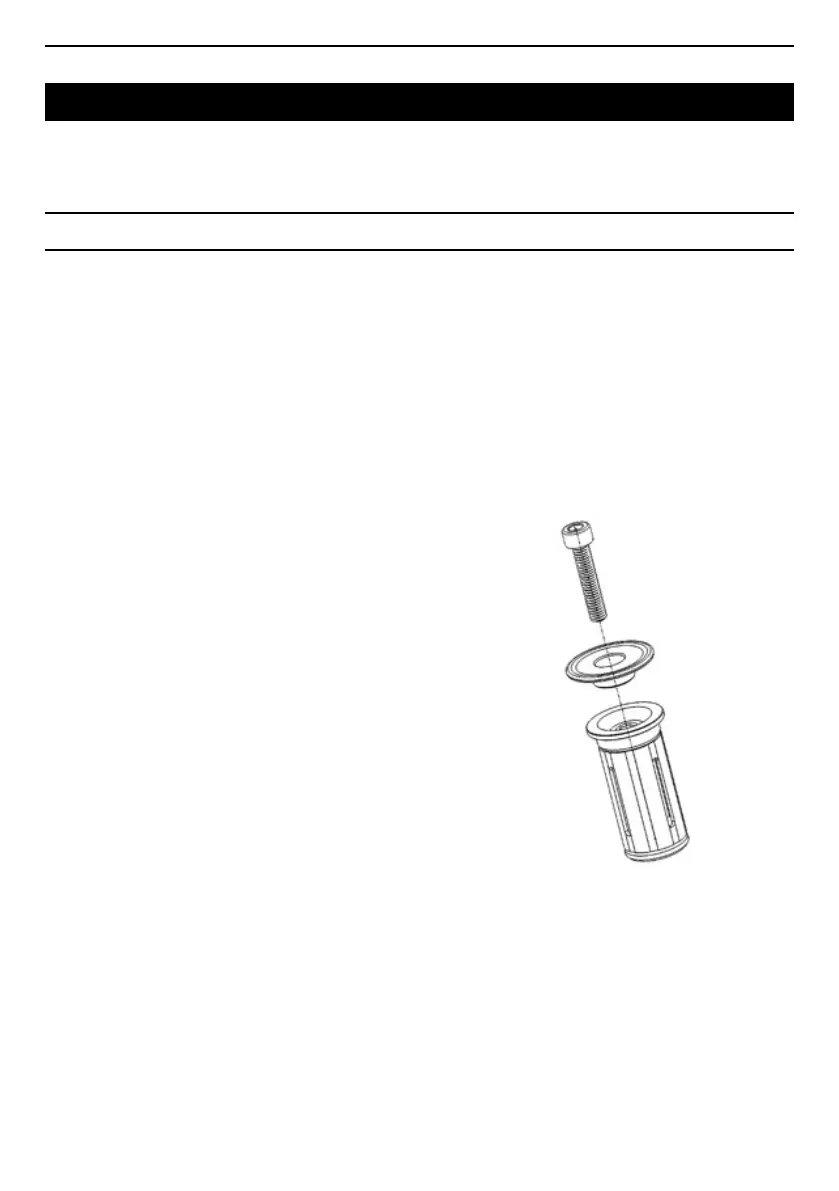

EXPANDER PLUG ASSEMBLY
1 - Ensure that the steerer tube is correctly cut to
5mm below the upper surface of the stem. The
expander plug is 2mm thick; when placed in the cut
steerer tube, its upper edge will be approximately
3mm below the cover contact surface.
2 - Using a degreaser (such as isopropyl alcohol),
clean the inside and outside of the steerer tube
where the expander plug sits, without applying any
grease.
3 - Loosen the locking screw in the expander plug,
allowing it to easily slide into the steerer tube.
4 - Lightly screw the expander plug into the steerer
tube by tightening the screw.
5 - Using a torque wrench with a 5mm Allen head,
tighten the screw to a torque of 8 Nm.
6 - Grease and insert the screw and cap.
7 - Using a torque wrench, eliminate any play in the
headset by tightening the screw to no more than 2
Nm.
8 - To correctly check for play:
. 8.1 - Tighten the rear stem screws to a torque
of 5 Nm.
. 8.2 - Check for play in the headset.
. 8.3 - If you still feel movement, check the assembly
steps and repeat the process after your rst ride.
