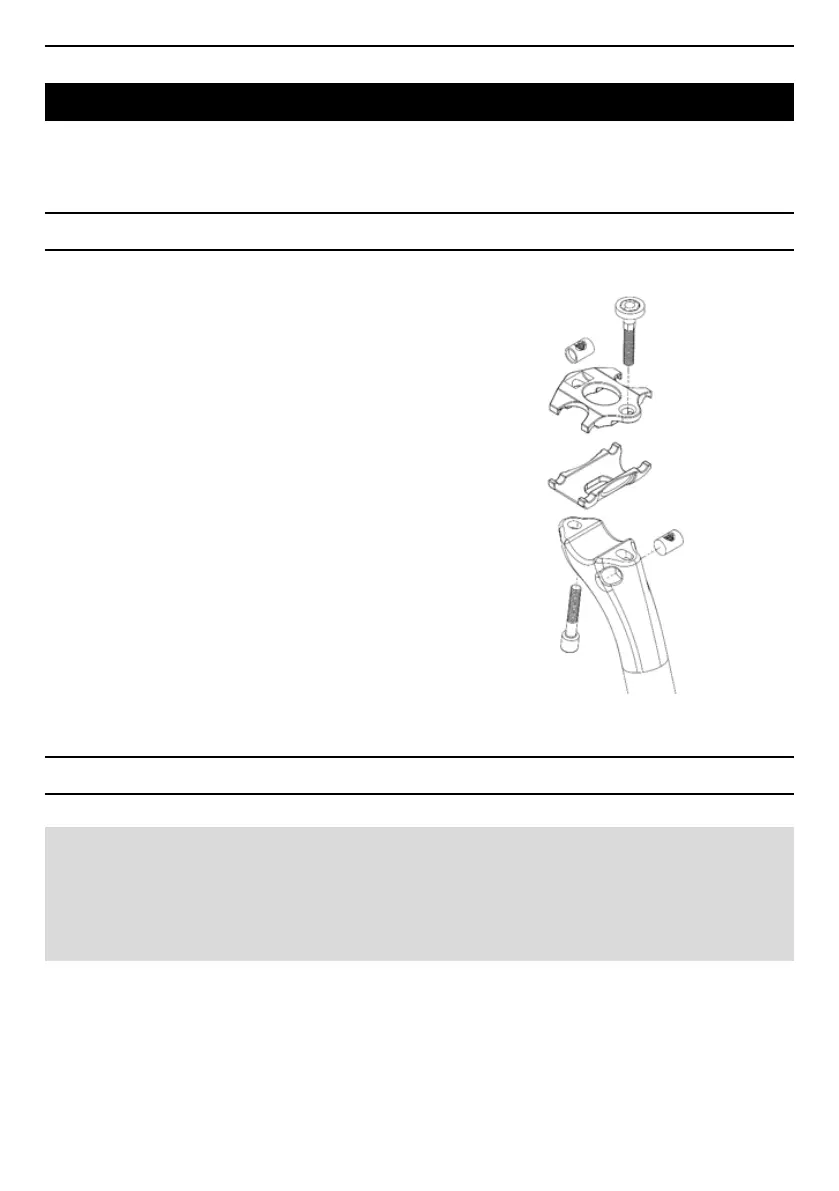

1 - Place the lower saddle bracket on the seatpost.
2 - Place your saddle on the bracket, then slide the
upper bracket in from the side.
3 - Insert the two round threaded inserts and set
your saddle at the desired angle.
4 - Tighten the bolts according to the seatpost
model.
SADDLE CLAMP ASSEMBLY
BRAKE ASSEMBLY
IMPORTANT : There are two assembly options: in the rst, the hose is connected to the brake caliper;
in the second, the hose is not connected to the caliper.
NOTE : Your bike is designed for 140/160mm front and rear FLAT MOUNT-standard brake calipers. The
chainstay thickness at the rear caliper attachment point is 25mm.
1 - Connected hose: insert the rear brake hose
through the chainstay, then feed it through the down
tube and headset.
2 - Disconnected hose: feed the hose through the
headset, down the down tube and out through the
left chainstay.
3 - Remember to slide a foam tube onto the rear
brake hose.
