LORD V1 - Dust Tank and HEPA Filter Assembly

To Next Page

To Previous Page

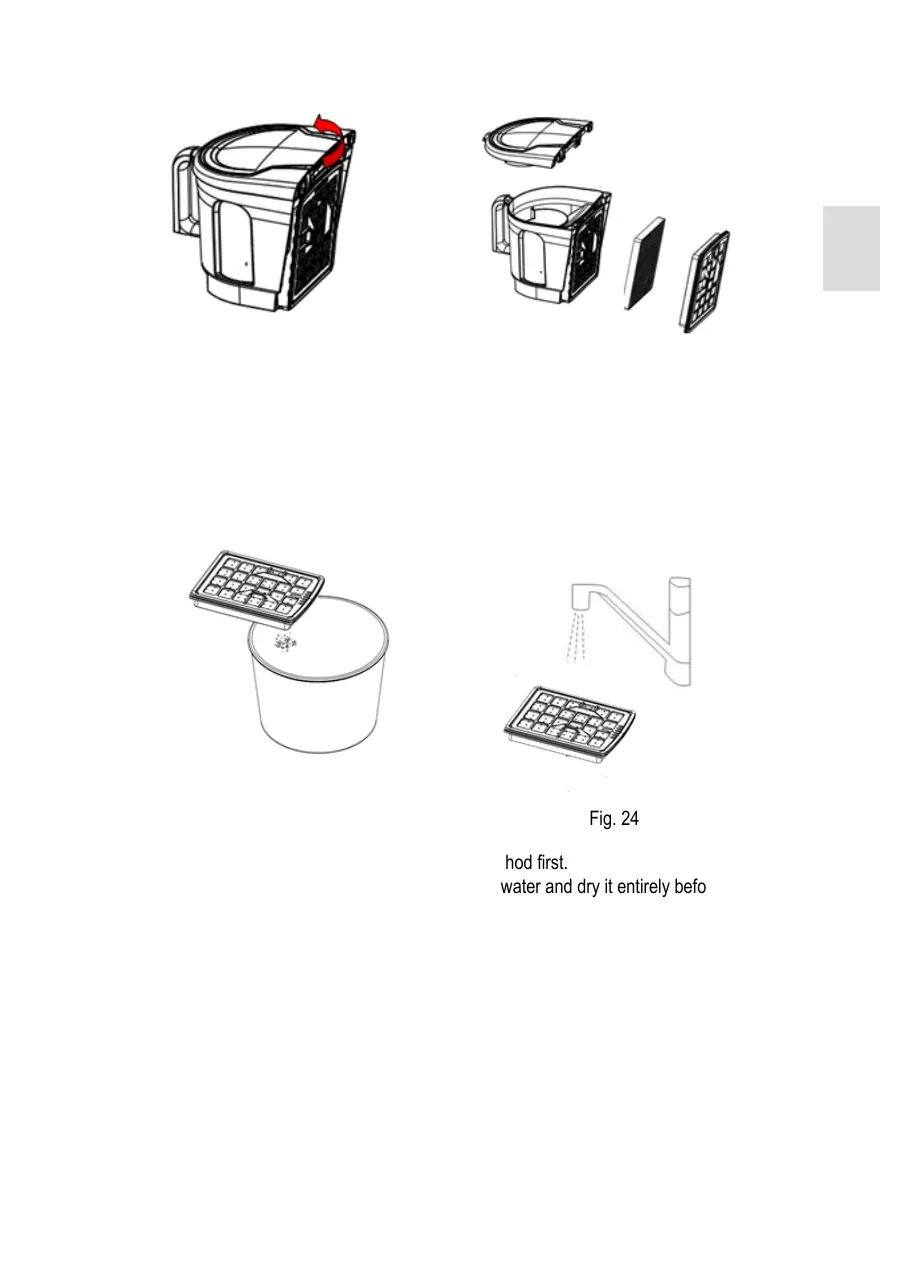

Fig. 21

Fig. 22

c) Remove dust tank: see CLEANING OF THE DUST TANK chapter.

d) Fig. 21 Push the release button to open the lid of the dust tank and remove the lid.

e) Fig. 22 Remove the motor filter in frame, take the sponge out of the frame.

Fig. 23

Fig. 24

f) Fig. 23 Clean motor filter and sponge with a dry method first.

g) Fig. 24 Rinse the motor filter without sponge under water and dry it entirely before use.

h) Wash the HEPA filter cover, the HEPA filter assembly, and the dust tank in the warm water

without detergent and dry them entirely before use.

i) Fix the dry HEPA filter assembly on the air outlet and make sure the three salient parts (two at

bottom, one on top) are stuck in the grooves. A click confirms correct placing.

j) Place the outlet cover back. A click confirms correct placing.

k) Place sponge and dry motor filter back to dust tank. Arrow on motor filter cover must point

upwards.

l) Place dust tank back to appliance: see CLEANING OF THE DUST TANK chapter.
