Lorex B451AJ Series User Manual

When installing only the mounting bracket, refer to Figure 5-a. When installing the angled bracket
attached to the mounting bracket, refer to Figure 5-b.
1. For wood, drywall or soft surfaces:
Secure the mounting bracket(s)
to the mounting surface using a
Philips-head screwdriver and the
supplied mounting screws.
2. For concrete, stucco or brick:
Use the supplied 15/64” drillbit to
drill holes where marked. Use the
supplied anchors and screws to
secure the mounting bracket(s) to
the wall.

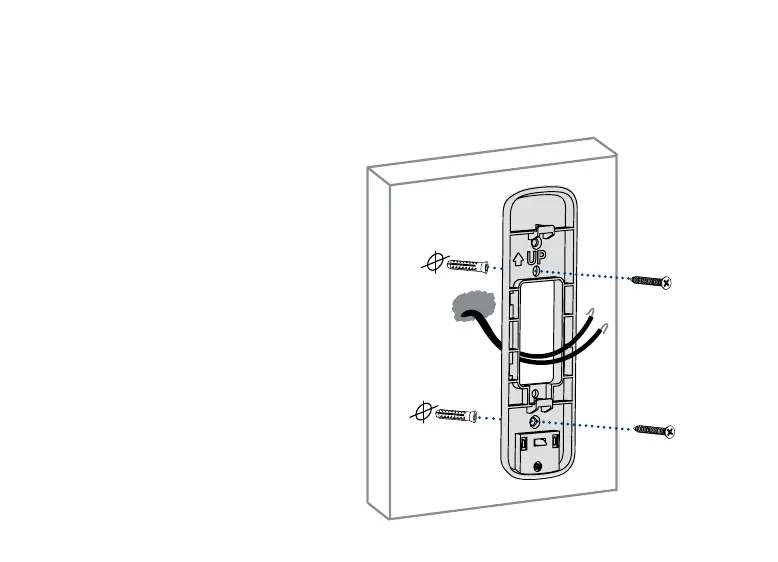

Step 3: Secure the mounting bracket
Figure 5-a

Lorex B451AJ Series Specifications

General

Brand	Lorex
Model	B451AJ Series
Category	Intercom System
Language	English
