Notes:
• Ensure that the arrow on the
mounting bracket is always pointing
up.
• The (optional) angled bracket must
be attached to the mounting bracket
before installation.
• Ensure the power cables from the
wall t comfortably through the hole
in the mounting bracket.

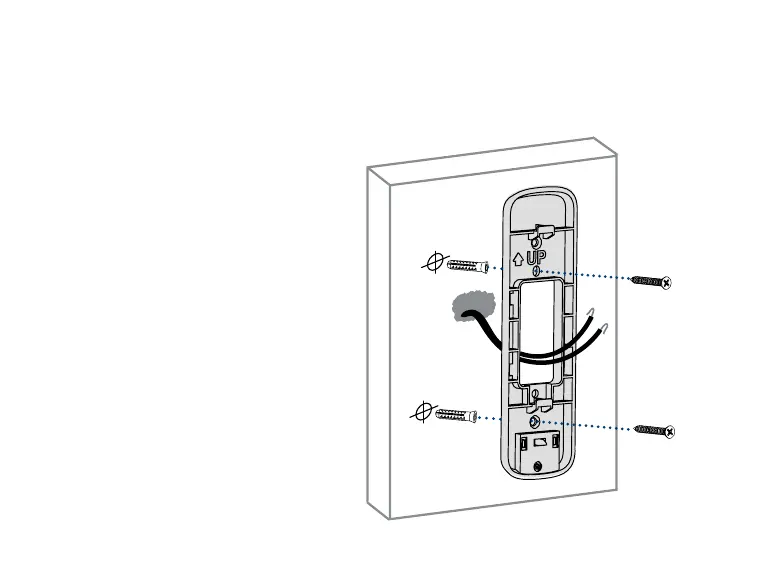

Figure 5-b
