Lorex LW2003 Frequently Asked Questions

4
www.lorextechnology.com

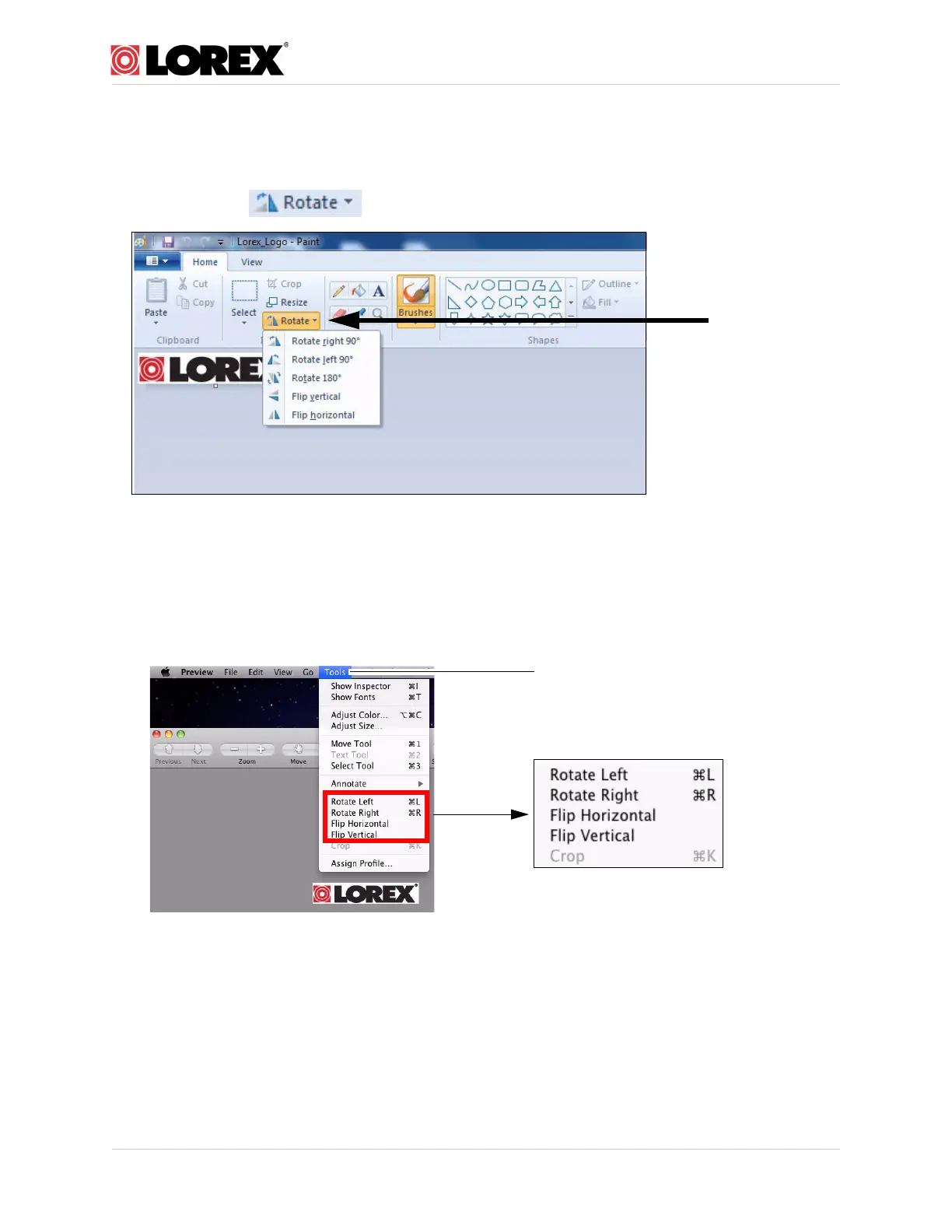

Flipping Pictures (Windows 7)
1. Right-click on the file you wish to flip, and then go to Open With > Paint.
2. Click Rotate ().
3. Click Flip horizontal.
4. Save the picture.
Rotating / Flipping Pictures in Mac OSX
1. Double-click the picture you wish to rotate/flip.
• Preview automatically opens the file
2. Click Tools to open the rotation menu.
3. Select one of the following:
• Rotate Left
• Rotate Right
• Flip Horizontal
• Flip Vertical
4. Click on File>Save to save your changes.
Rotate button
Tools

Lorex LW2003 Specifications

General Specifications

transmission frequency	ISM 2, 400~2, 482 MHz
transmission power	18 dBm
unobstructed effective range	150 m / 450 ft
spread spectrum	FHSS
modulation mode	GFSK
operating temperature	0-50ºC / 32-122ºF
operating humidity	Less than 90%

Camera Specifications

imaging sensor type	CMOS
picture total pixels	H:240, V:320
minimum illumination	0 Lux (IR on)
night video distance	7 m / 22 ft
view angle	H: 38º V: 50º
image resolution	240 x 320 up to 25 fps
consumption current (max.)	390 mA
power supply	5 V DC
dimensions (W x D x H)	66 x 95 x 115 mm / 2.6 x 3.8 x 4.6"
weight	0.25 kg / 0.5 lbs

Receiver Specifications

LCD screen type	2.4 “ TFT-LCD
effective pixels	H: 240, V:320
receiving sensitivity	<.81 dBm
consumption current (max.)	250 mA
power supply	5 V DC
dimensions (W x D x H)	48 x 17 x 117 mm / 1.9 x 0.7 x 4.6"
weight	0.14 kg / 0.3 lbs

Product Information

package dimensions (LW2003)	199 x 69 x 135 mm / 7.8 x 2.7 x 5.3"
package cube (LW2003)	0.0025 cbm / 0.09 cbf
package weight (LW2003)	0.7 kg / 1.5 lbs
package dimensions (LW2003F)	200 x 69 x 139 mm / 7.9 x 2.7 x 5.5"
package cube (LW2003F)	0.0025 cbm / 0.09 cbf
package weight (LW2003F)	0.7 kg / 1.5 lbs
