24
emergency, the lamps may be raised by turning the motor by hand, using the
knurled
knob which protrudes through the bottom of the motor. The bonnet must
be removed.
Both
the lamps give the main beam, and the outer lamps the dipped beam:
Remove the front bezel. ·
Remove the cross-headed screws securing the front rim, and wit)ldraw front rim.
Lift
the light unit from its location and detach the cable connector plug. Where
detachable bulbs are used, the bulb
is removed by dis-engaging the two ends of its
spring retaining
clip from the tabs on the bulb seating rim.
Replace in reverse order.
Check alignment (see below) and replace
the front bezel.

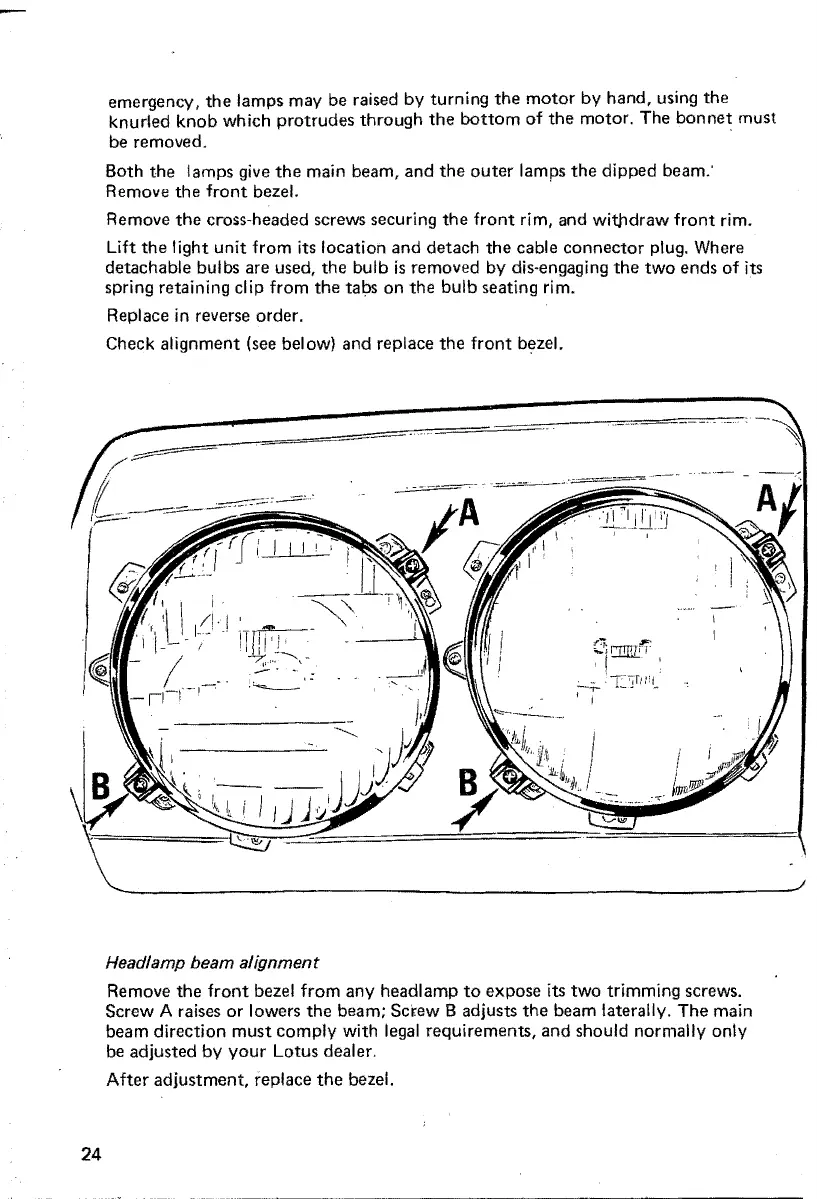

Head/amp beam alignment
Remove the front bezel from any headlamp to expose its two trimming screws.
Screw A raises or lowers the beam; Scr.ew B adjusts the beam laterally. The main
beam direction
must comply with legal requirements, and should normally only
be adjusted by
your Lotus dealer.
After adjustment,
replace the bezel.
