INTRODUCTION
Translation of the original instructions
5

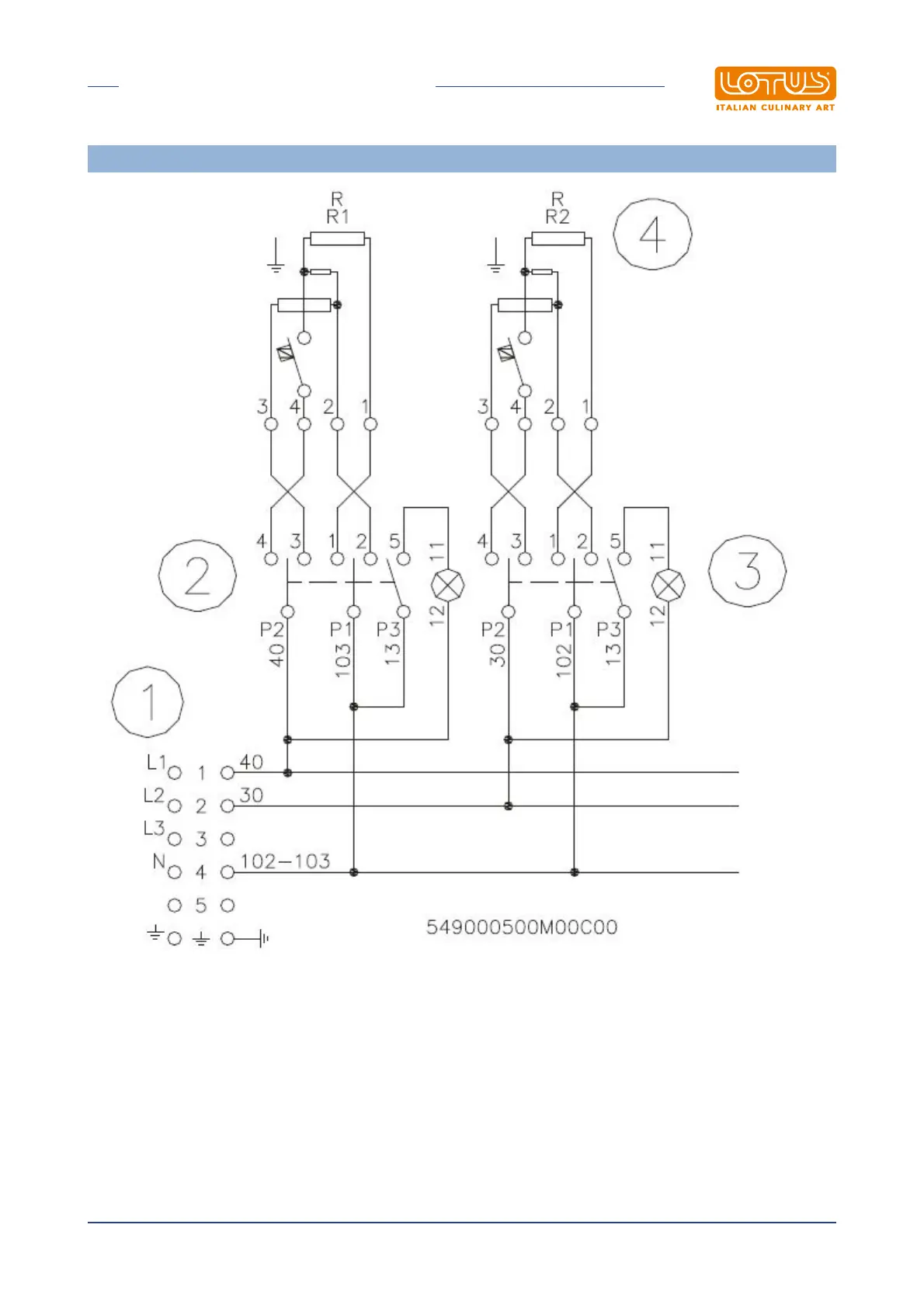

HOB WIRING DIAGRAM (C)
1 Power supply terminal board
2 Switch
3 White indicator light
4 Electrical plate
