Louet S17 - Parts Identification

1
English instructions
Inside the box you will find the following parts:
- back post;
- front post;
- foot rail with treadle;
- main wheel;
- cardboard roll with 3 bobbins;
- box with parts.

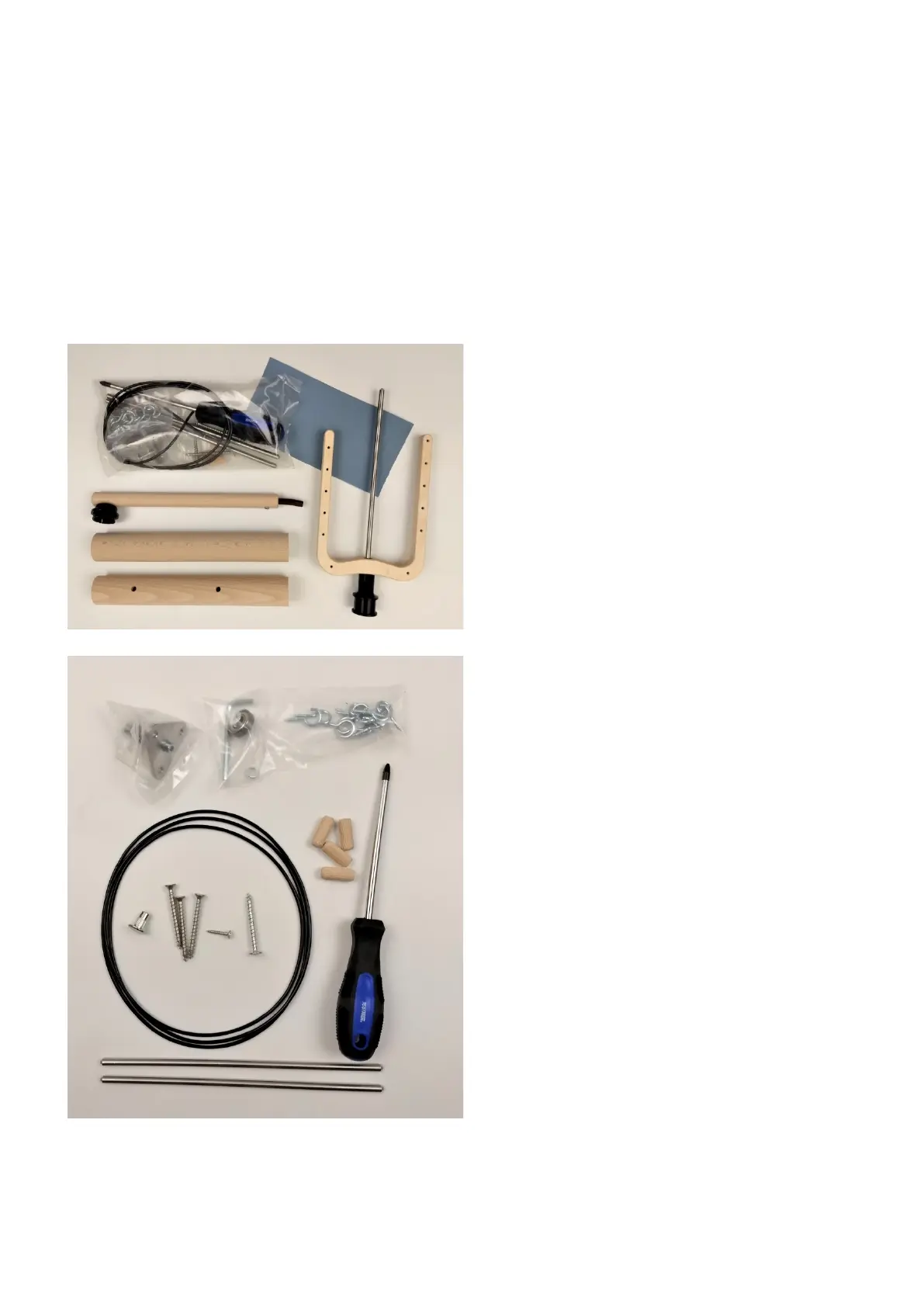

The box contains:
- flyer;
- sandpaper;
- two round bars, for connecting
both posts together;
- footman complete;
- hardware bag.
The hardware bag contains:
- bag with wheel axle with
mounting plate, 3 screws
4.5x20 mm, spring and 2
retaining rings (1 spare);
- bag with Allen key 4 mm and
footman bolt assembly (socket
head bolt, ball bearing, spring
washer and washer);
- bag with 14 screw hooks (2
spare);
- drive band;
- threaded insert M6;
- 1 screw 5x50 mm;
- 1 screw 3x20 mm;
- 3 screws 5x55 mm;
- 4 wooden dowels;
- 2 stainless steel axles for the
lazy kate;
- screw driver (pz2)
Use the sand paper to smooth the edges of the wooden parts.
The wood of this spinning wheel has no protecting finish. We advise you to
lacquer, stain or wax the wooden parts before assembling them.
