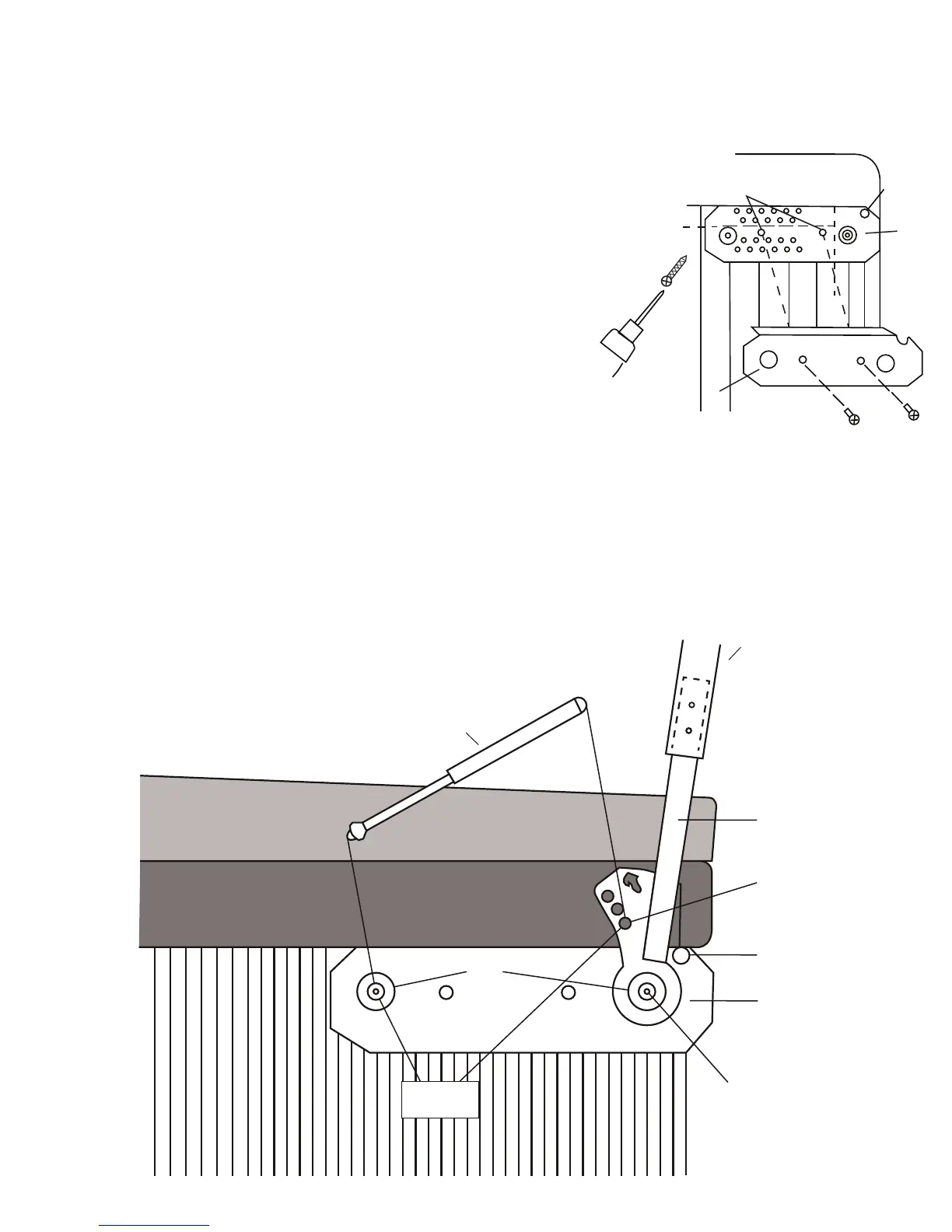

Figure 6
PLEASE FOLLOW STEPS IN THE PROPER SEQUENCE
Position the Mounting Bracket A ush with the back coping of the
spa shell. Make certain to use the Mounting Bracket that positions
the “Safety Stop” at the rear of the spa (See Fig 5). Hold Mounting
Bracket at this position and pre-drill into 2 of the holes using the
9/64” drill bit and then secure the Mounting Bracket with the
Wood Screws U with a #3 Phillips head bit (See g 5). Repeat this
procedure so that you have a minimum of 8 screws securing the
Mounting Bracket to the cabinet, though more is always better.
NOTE: Pre-drilling the holes is important to prevent splitting
of the wood interior. Be sure not to pre-drill more than 2” deep
so as to prevent internal damage.
Step 2 – Attach “Mounting Bracket”
Position Cover Plate B over the Mounting Bracket and with a #2
Phillips head bit secure the Machine Screws W into the 2 center
holes (See Fig 5).
Step 3 – Install “Cover Plate”
REPEAT STEPS 2-3 ON THE OTHER SIDE
Step 14
Gas Springs
Cover &
Foam Insert
Cover Skirt
Cabinet
Crossover
Bar D
Swing
Arm C
Hole 1
Safety
Stop
Step 5
Install
T, I, J, M
A / B
Step 13
Ball Studs
Boss
Figure 5
Safety
Stop
Wood
Screws
Pre-Drill
Holes
A
B
Position Mounting Bracket
Flush with Spa Coping
To Next Page
