The LOVELEC+ LUGO is an electrically power-assisted bicycle (EPAC) designed for private and commercial use, featuring a continuous rated power of 0.25 kW. The electric power cuts off if the cyclist stops pedaling or if the bicycle reaches 25 km/h speed. The motor is powered by a Lithium-ion battery with a total voltage of 36 V.

Device Components and Identification

The bicycle includes several key components:

Control panel (①): Used to manage the e-bike's functions.
Rechargeable battery (②): The power source for the electric motor.
Battery charging connector (③): For recharging the battery.
Battery switch (④): To turn the battery on or off.
Controller (⑤): Manages the e-bike's electrical system.
Electric motor (⑥): Provides power assistance.
Motor connector (⑦): Connects the motor to the electrical system.
PAS sensor (⑧): Pedal Assist System sensor, detects pedaling activity.
Folding joint (⑨): Allows the bicycle to be folded for storage or transport.

Battery Description and Usage

The LUGO features a carrier-mounted rechargeable battery.

Power Switch: A red rocker switch on the bottom of the battery controls its power (O - OFF, I - ON). The battery should be turned on (position I) before riding and turned off (position O) when stored.
Security: The battery is secured by a key lock located on its left side. Turning the key 180° to the left unlocks it, while turning it 180° to the right secures it. It is recommended to keep the battery locked and only unlock it when removal is necessary. Always check that the battery is locked before riding and when parking to prevent damage or theft.
Removal and Installation: To remove the battery, first unlock it. Then, press the carrier with your thumb while positioning your index, middle, and ring fingers on the battery groove on the bottom, and pull the battery backward. To install, insert the battery into the dock station. Ensure it is fully inserted into the stop, otherwise, it cannot be locked. Always insert and remove the battery horizontally, tightly aligned with the dock.
Charging Connector: A charging connector with a rubber plug is located on the left side of the battery. The battery can be charged while in the carrier or removed from the dock.
Rear Light: The battery integrates a rear light, which is powered by 2 AA batteries. A dedicated button on the upper side of the battery turns this light on/off.

Battery Charge Indicator

The battery features an LED charge indicator on its upper part.

Activation: Push the button to display the charge status.
Status Indication:
- 4 diodes: Battery is charged > 80%.
- 1 red diode: Battery is charged < 20%.
Charging Recommendation: If only one red diode is indicated, charge the battery as soon as possible.
Operation: The LED charge indicator only operates when the battery is on (position I). The charge status can also be viewed on the display.

LED Control Panel Functions

The LED control panel, made from durable ABS plastic, allows control over the e-bike's motor and provides charge status. It should not be exposed to temperatures below -20 °C or above 60 °C.

Power On/Off:
- To turn on: Press the red ON/OFF button (top, left) for a few seconds.
- To turn off: Briefly press the red ON/OFF button (top, left).
Motor Assistance Level: Briefly press the green MODE button (down, left) to select the motor assistance level: LOW, MEDium, or HIGH.
Charge Indicator (on control panel): Located at the top right, it shows the charge level as L (LOW) or H (HIGH).
- 4 diodes: Battery is charged > 80%.
- 1 diode: Battery is charged < 20%.
- Charge the battery as soon as possible if only one diode is indicated.
Walk Assistance (6km/h button): The white 6km/h button (in the middle) activates walk assistance, which helps control the e-bike when pushing it (e.g., uphill).
- Activation: Pressing the "6km/h" button activates assistance, moving the e-bike at 4-6 km/h.
- Deactivation: Releasing the "6km/h" button deactivates assistance.
- Important Note: This function is only for controlling the e-bike while pushing it, not for setting off or riding.
Automatic Deactivation: The LED control panel will deactivate automatically after approximately 5 minutes of inactivity.

EU Declaration of Conformity

The LOVELEC+ LUGO electric bicycle complies with several EU directives and standards, ensuring its safety and performance.

Manufacturer: KOEXIMPO, spol. s r.o., Lipová 1986, 737 01 Český Těšín, The Czech Republic. VAT Number: CZ18055826.
Relevant Directives:
- Directive 2006/42/EC Machinery (MD)
- Directive 2014/30/EU Electromagnetic compatibility (EMC)
- Directive 2014/35/EU Low voltage (LVD)
- Directive 2011/65/EU Hazardous substances in electrical and electronic equipment (RoHS)
- Directive 2001/95/EC General product safety (GPSD)
- Regulation EC 1907/2006 Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH)

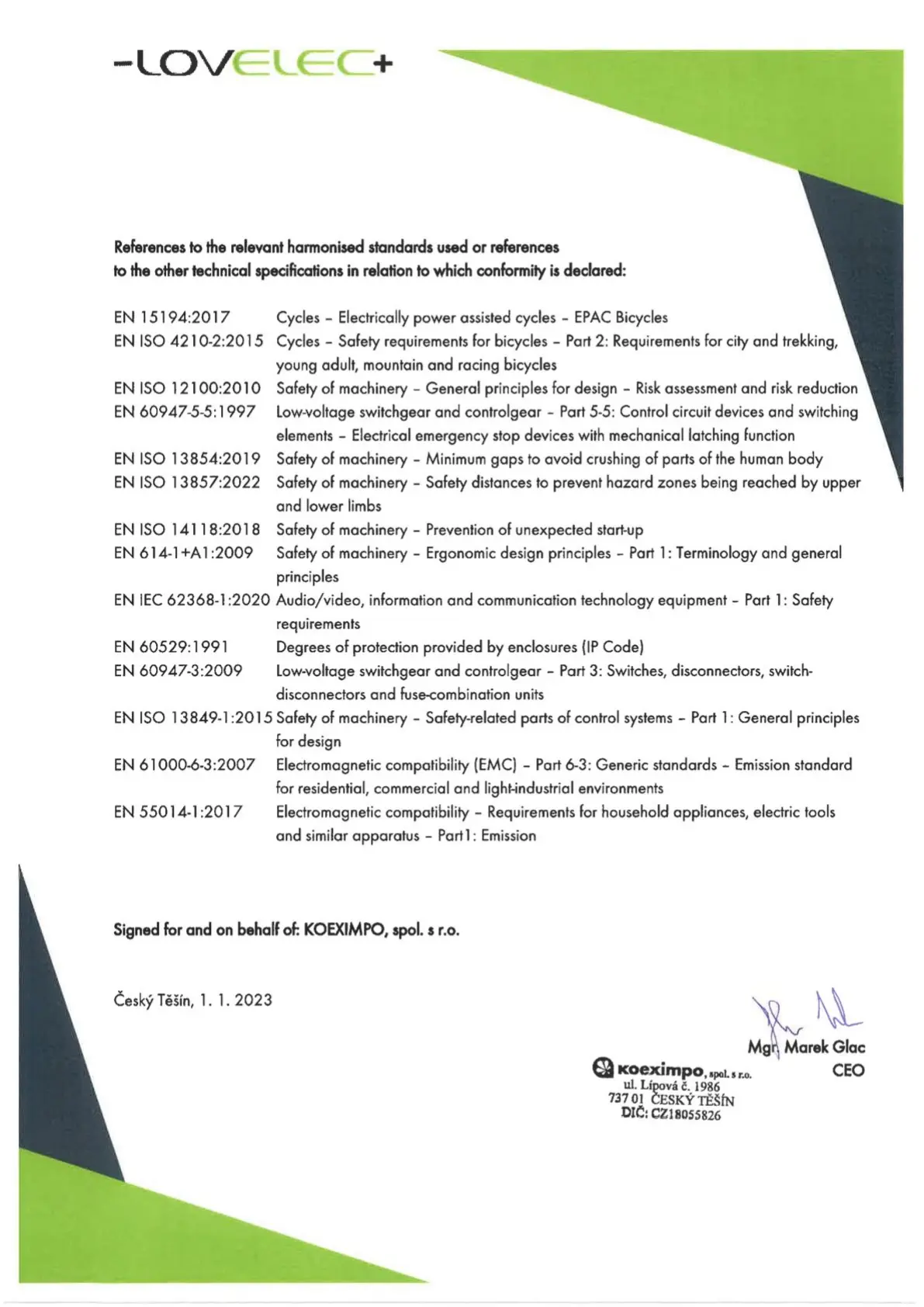

Harmonised Standards:
- EN 15194:2017 Cycles - Electrically power assisted cycles - EPAC Bicycles
- EN ISO 4210-2:2015 Cycles - Safety requirements for bicycles - Part 2: Requirements for city and trekking, young adult, mountain and racing bicycles
- EN ISO 12100:2010 Safety of machinery - General principles for design - Risk assessment and risk reduction
- EN 60947-5-5:1997 Low-voltage switchgear and controlgear - Part 5-5: Control circuit devices and switching elements - Electrical emergency stop devices with mechanical latching function
- EN ISO 13854:2019 Safety of machinery - Minimum gaps to avoid crushing of parts of the human body
- EN ISO 13857:2022 Safety of machinery - Safety distances to prevent hazard zones being reached by upper and lower limbs
- EN ISO 14118:2018 Safety of machinery - Prevention of unexpected startup
- EN 614-1+A1:2009 Safety of machinery - Ergonomic design principles - Part 1: Terminology and general principles
- EN IEC 62368-1:2020 Audio/video, information and communication technology equipment - Part 1: Safety requirements
- EN 60529:1991 Degrees of protection provided by enclosures (IP Code)
- EN 60947-3:2009 Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
- EN ISO 13849-1:2015 Safety of machinery - Safety-related parts of control systems - Part 1: General principles for design
- EN 61000-6-3:2007 Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission standard for residential, commercial and light-industrial environments
- EN 55014-1:2017 Electromagnetic compatibility - Requirements for household appliances, electric tools and similar apparatus - Part 1: Emission
