LPKF S104 - Assembly Step 2: Cable Management and Connection; Assembly Step 3: Final Cover Reattachment

Assembly dispenser
from Jäger to SycoTec S64/ S104
12/15
V 1.0 | 05.10.2021 | LPKF Laser & Electronics AG

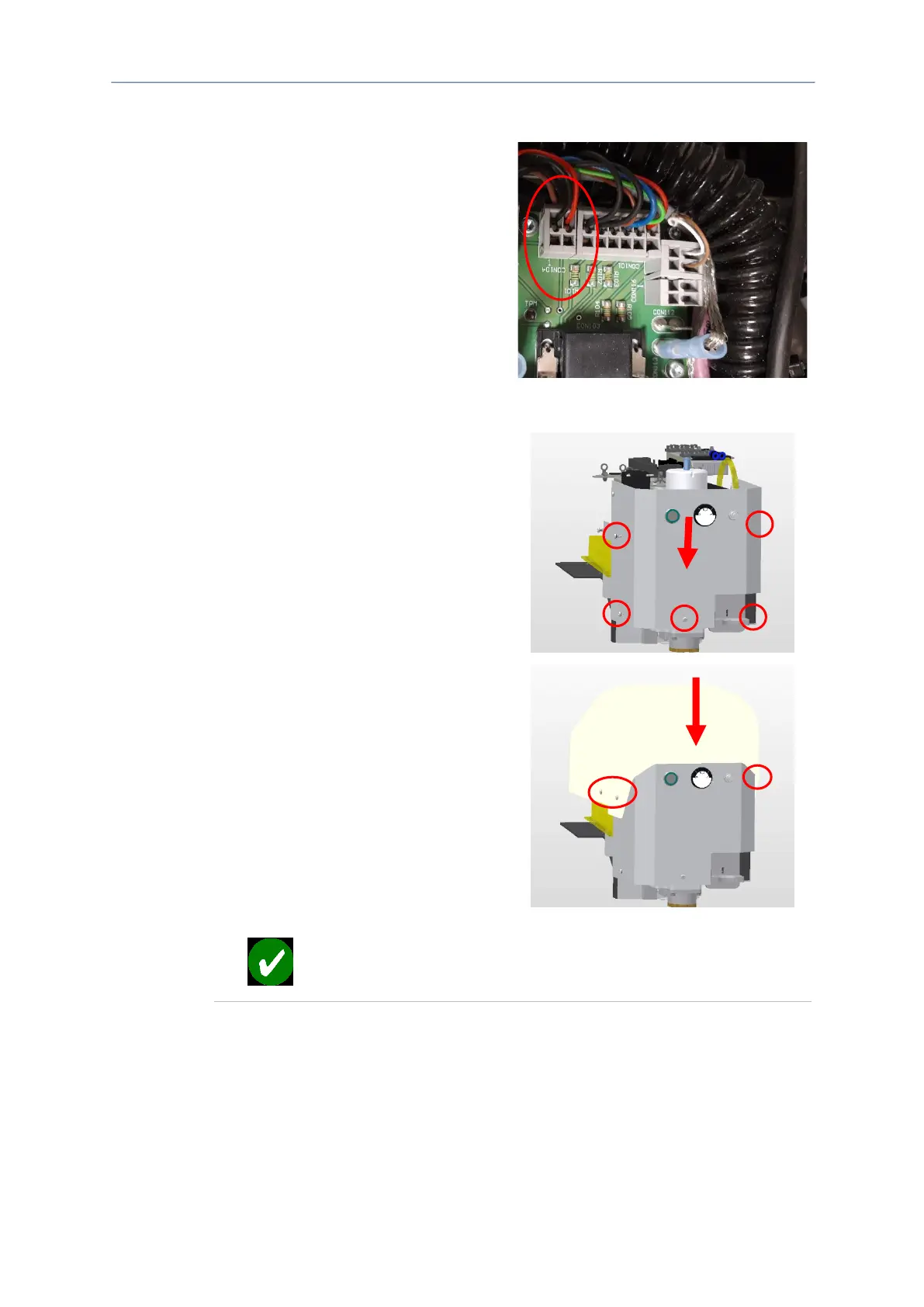

Step 2
 Replace the cable ties for the cables
 Fasten the cables
Connect the dispenser
Step 3
 Mount the lower head cover
 Connect the status light
 Fasten the five screws using a Torx
screwdriver T10
 Mount the upper head cover
 Fasten the four screws using a Torx
screwdriver T10
 The dispenser replacement is done

