LPKF S104 - Dispenser Assembly Procedure; Assembly Step 1: Cover Sheets and Dispenser Mounting

Upgrade dispenser S64/ S104
Assembly dispenser
11/15
LPKF Laser & Electronics AG | 05.10.2021 | V 1.0
4 Assembly dispenser
Step 1

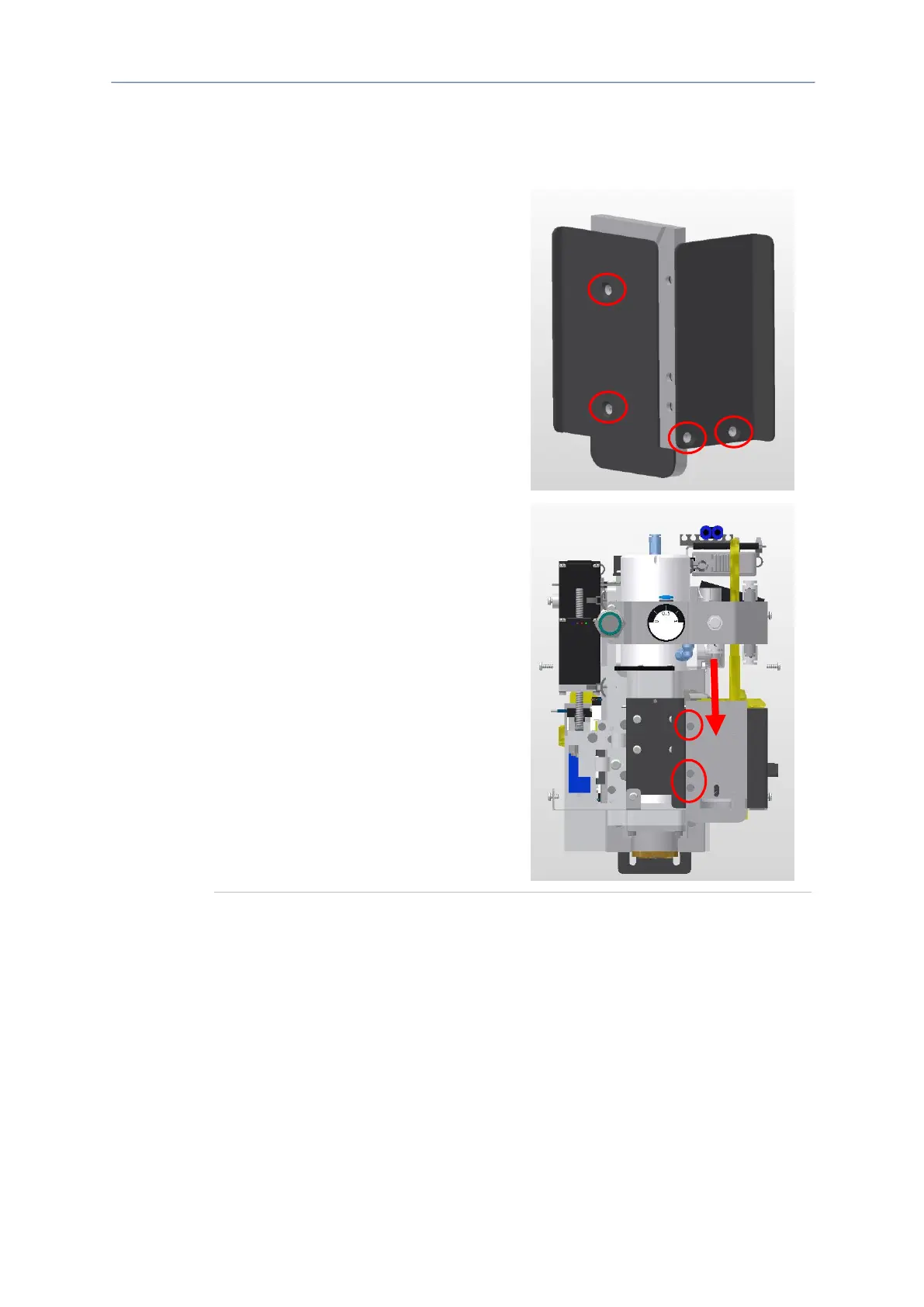

 Remove the cover sheets from the old
dispenser unit using a Torx screwdriver
T8
 Mount the cover sheets on the new
dispenser unit using a Torx screwdriver
T8
 Mount the dispenser
 Fasten the three screws using a Torx
screwdriver T10
