LPL 7452 - Installing the Enlarging Lamp

16 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

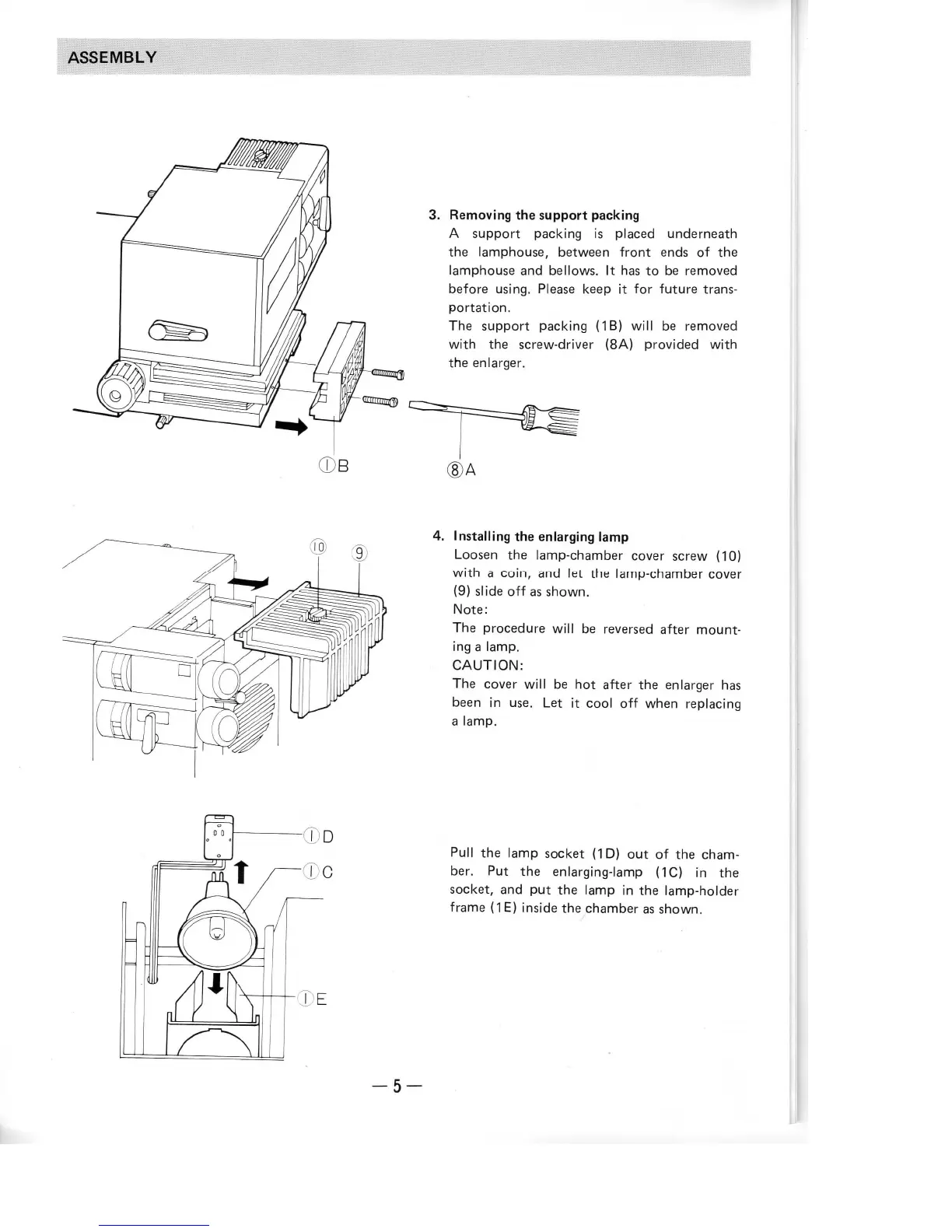

ASSEMBLY

3.

Removing

the

support

packing

A

support packing

is

placed underneath

the

lamphouse, between

front

ends

of the

lamphouse

and

bellows.

It has to be

removed

before

using.

Please

keep

it for

future

trans-

portation.

The

support

packing

(1B)

will

be

removed

with

the

screw-driver (8A) provided

with

the

enlarger.

9,

4.

Installing

the

enlarging

lamp

Loosen

the

lamp-chamber cover screw (10)

with

a

coin,

and let the

lamp-chamber cover

(9)

slide

off as

shown.

Note:

The

procedure

will

be

reversed

after

mount-

ing a

lamp.

CAUTION:

The

cover

will

be hot

after

the

enlarger

has

been

in

use.

Let it

cool

off

when replacing

a

lamp.

Pull

the

lamp

socket

(1D)

out of the

cham-

ber.

Put the

enlarging-lamp

(1C)

in the

socket,

and put the

lamp

in the

lamp-holder

frame

(1 E)

inside

the

chamber

as

shown.
