LRP S8 BXe - Page 13

Bag 4
Tüte 4
Bag 4
Tüte 4
Bag 4
Tüte 4
M4x14mm Screw x2
Schraube
M5x6mm Set Screw x2
Madenschraube
4mm Flanked Nut x2
Stoppmutter
M5x29mm
Hing Pin with x2
hole for clip
Achsstift
mit Splint Loch
Team:
M3x20mm Screw x2
Schraube
Team:
M3x25mm Screw x2
Schraube
RTR:
M3x25mm Screw x2
Schraube
M3x10mm Button Head x2
TP Screw
Linsenkopf-
schneidschraube
Please mount the original
sway bar with 2.8mm
end facing upwards.
Bitte Original-Stabilisator
mit der 2.8mm Vertiefung
befestigen.
Sway bar not included in RTR version
Stabilisator im RTR Modell nicht enthalten
25
26
27
RTR:
M3x14mm Screw x2
Schraube
3mm Lock Nut Team: x4
Stoppmutter RTR: x2
3mm Lock Nut x2
Stoppmutter
4mm
132051
132279
3mm
3mm
132004
M4x14
M5x6
4mm clip
Team: 132267
RTR: 132047
Team: 132269
RTR: 132016
Team: M3x20
RTR: M3x14
M3x25
132016
M3x10
132056

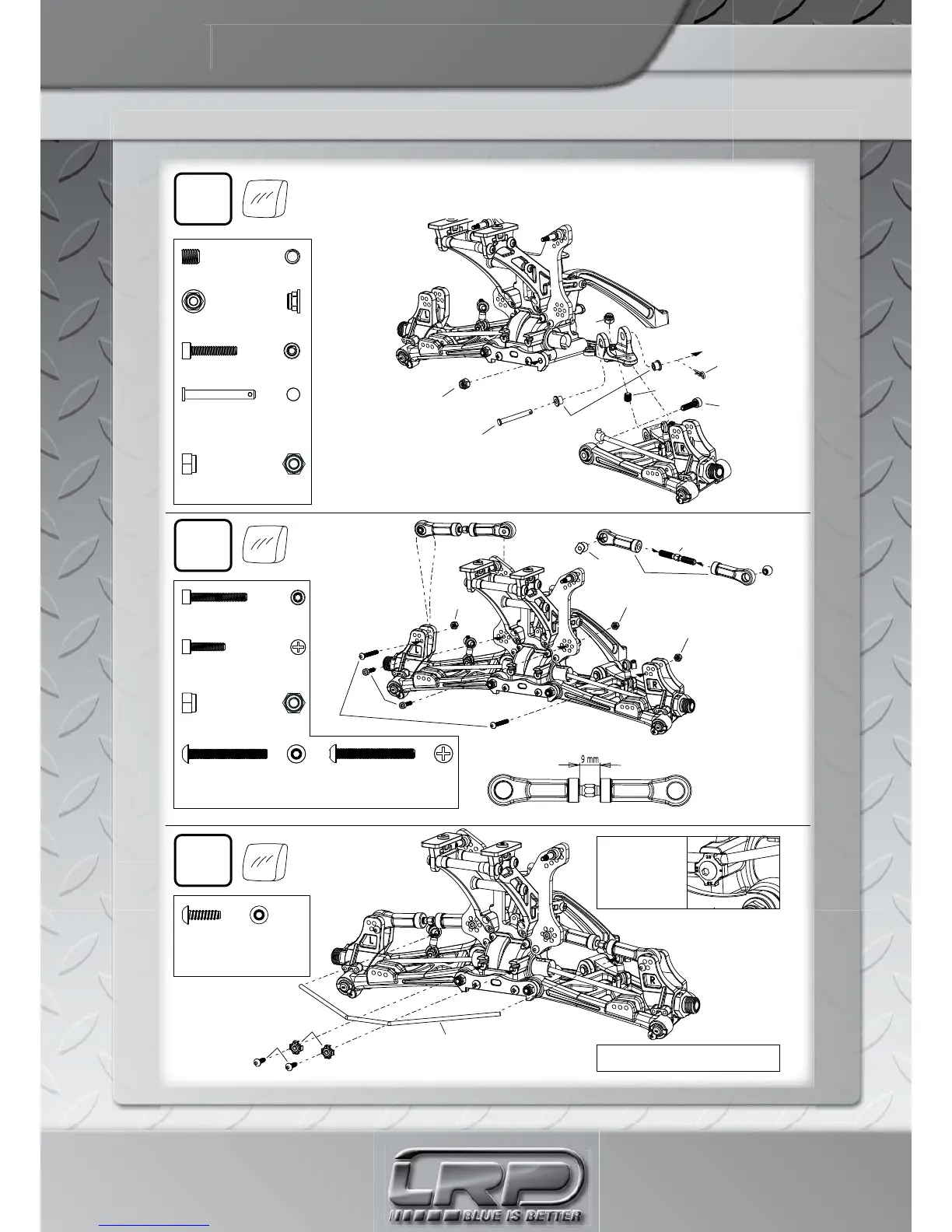

ASSEMBLY OF THE REAR SUSPENSION
ZUSAMMENBAU DER HINTERACHSE
3mm
Team: 3mm
S. 13
S. 13
