LRP S8 BXe - Page 3

1

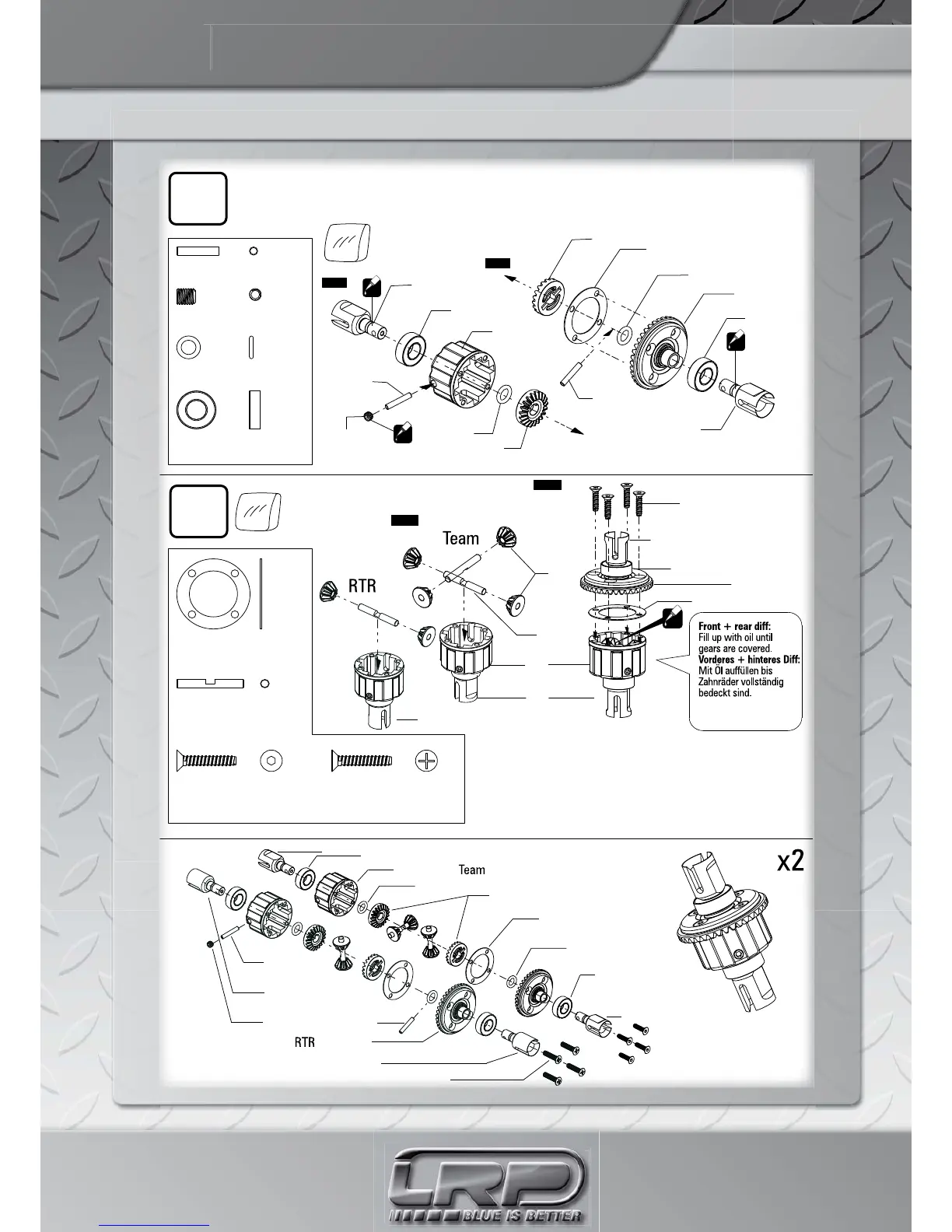

ASSEMBLY OF THE FRONT AND REAR DIFFERENTIAL
ZUSAMMENBAU DES VORDEREN UND HINTEREN DIFFERENTIALS
Bag 1
Tüte 1
Bag 1
Tüte 1
M4x3 Set Screw x2
Madenschraube
Diff. Sealing O Ring x4
Diff. Dichtungs-O-Ring
8x16mm Ball Bearing x4
Kugellager
19x29xT0.4mm
Diff. Gasket x2
Diff. Dichtung
2
Step 1
Step 2
2.5x12.8mm Pin x4
Stift
OIL
OIL
TL
M4x3mm
Step 1
Step 2
OIL
3.5x26.5mm Differential Axle
Differentialwelle
(Team: 4x / RTR: 2x)
M3x12mm
Team:
M3x12mm Countersunk TP Screw x8
Senkkopfschneidschraube
Front/vorne: 5.000wt
Rear/hinten: 1.000wt
RTR:
M3x12mm Countersunk TP Screw x8
Senkkopfschneidschraube
132272
132272
132089
132010
132094
132059
132057
132050
132050
132050
Team: 132272
RTR: 132065
Team: 132272
RTR: 132065
132089
132089
132010
132086
132086
132057
132057
132094
132059
132050
132050
132065
132065
132089
132272
132272
132089
132010
M4x3mm
132086
132086
132057
132094
132059
M3x12mm
132065
S. 3
S. 3
